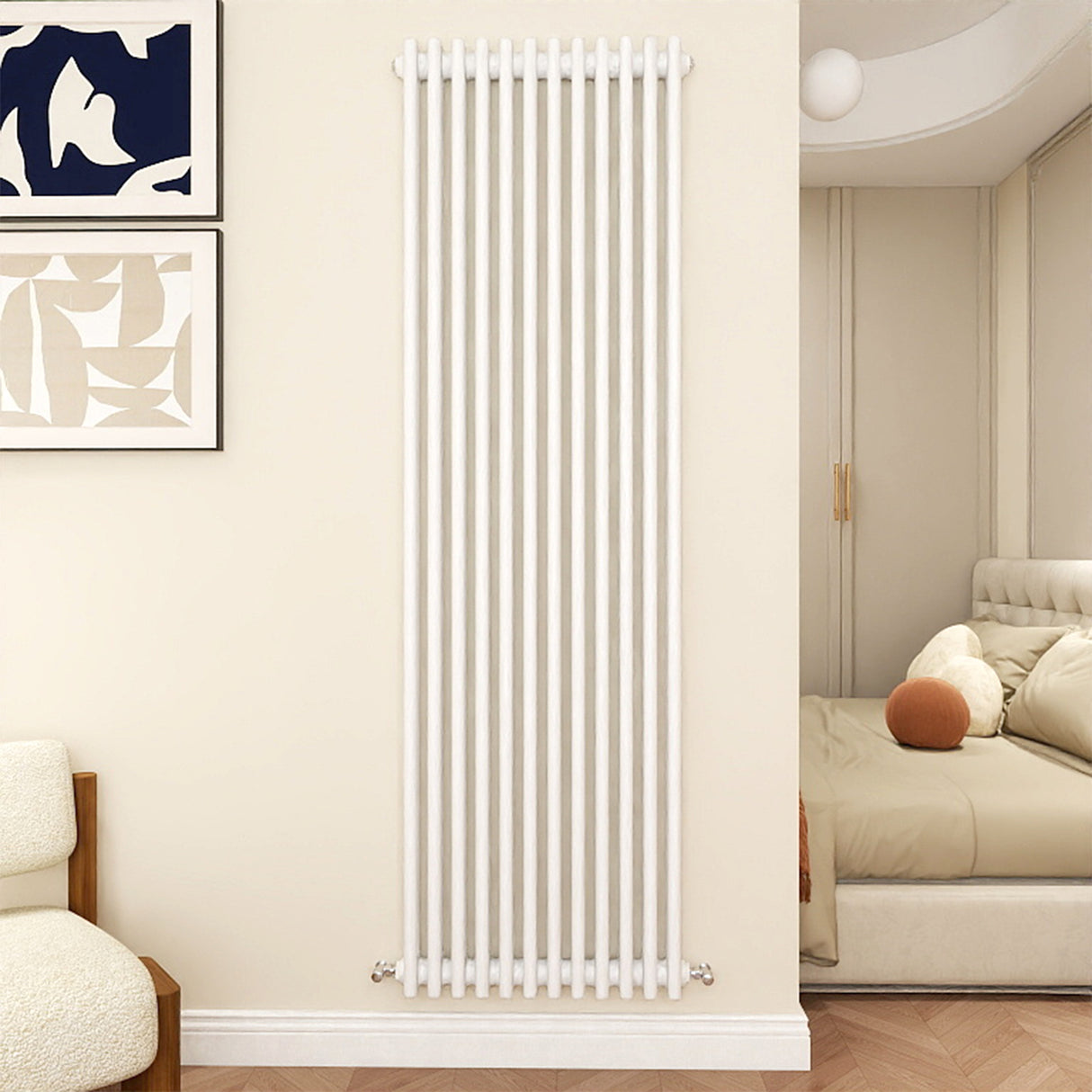

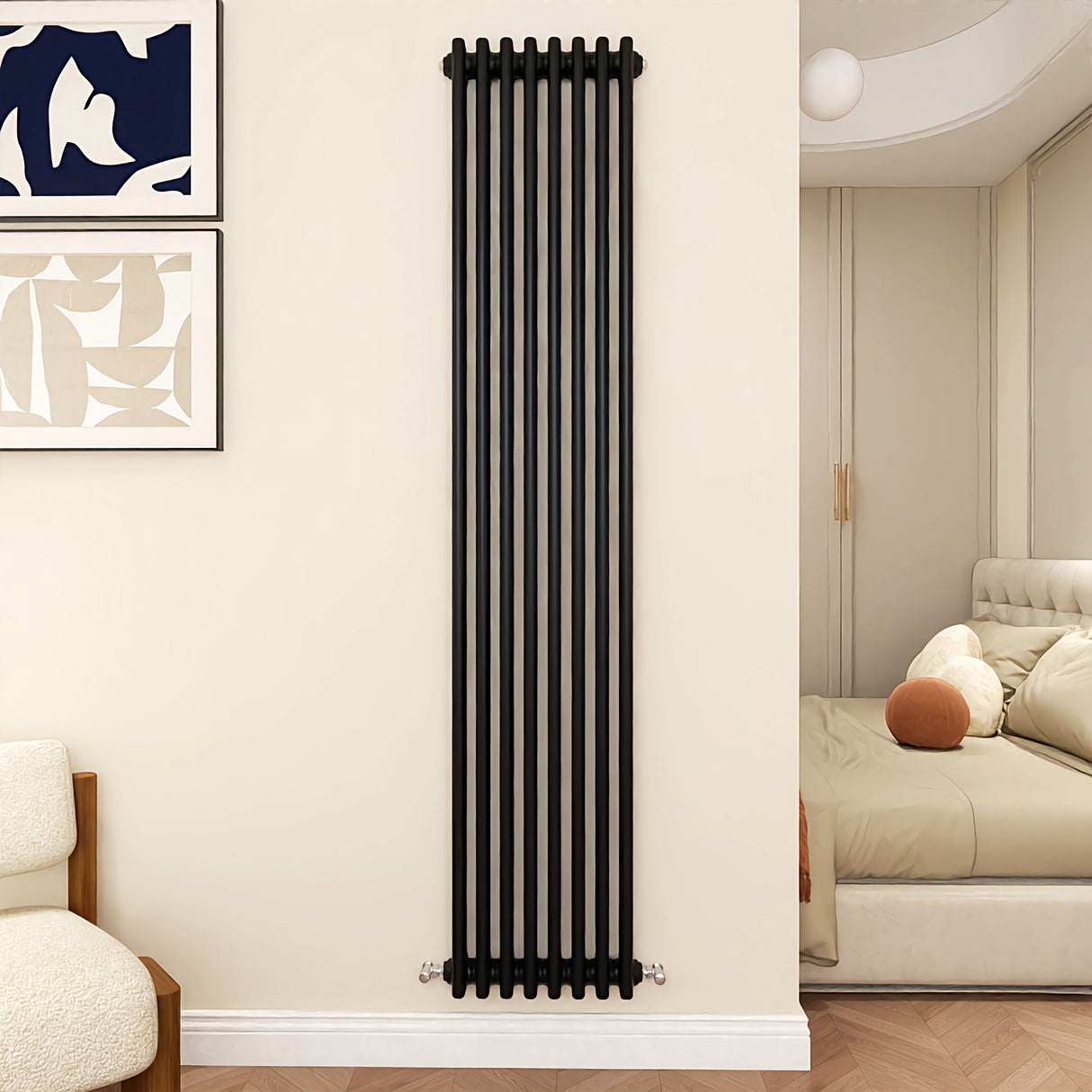

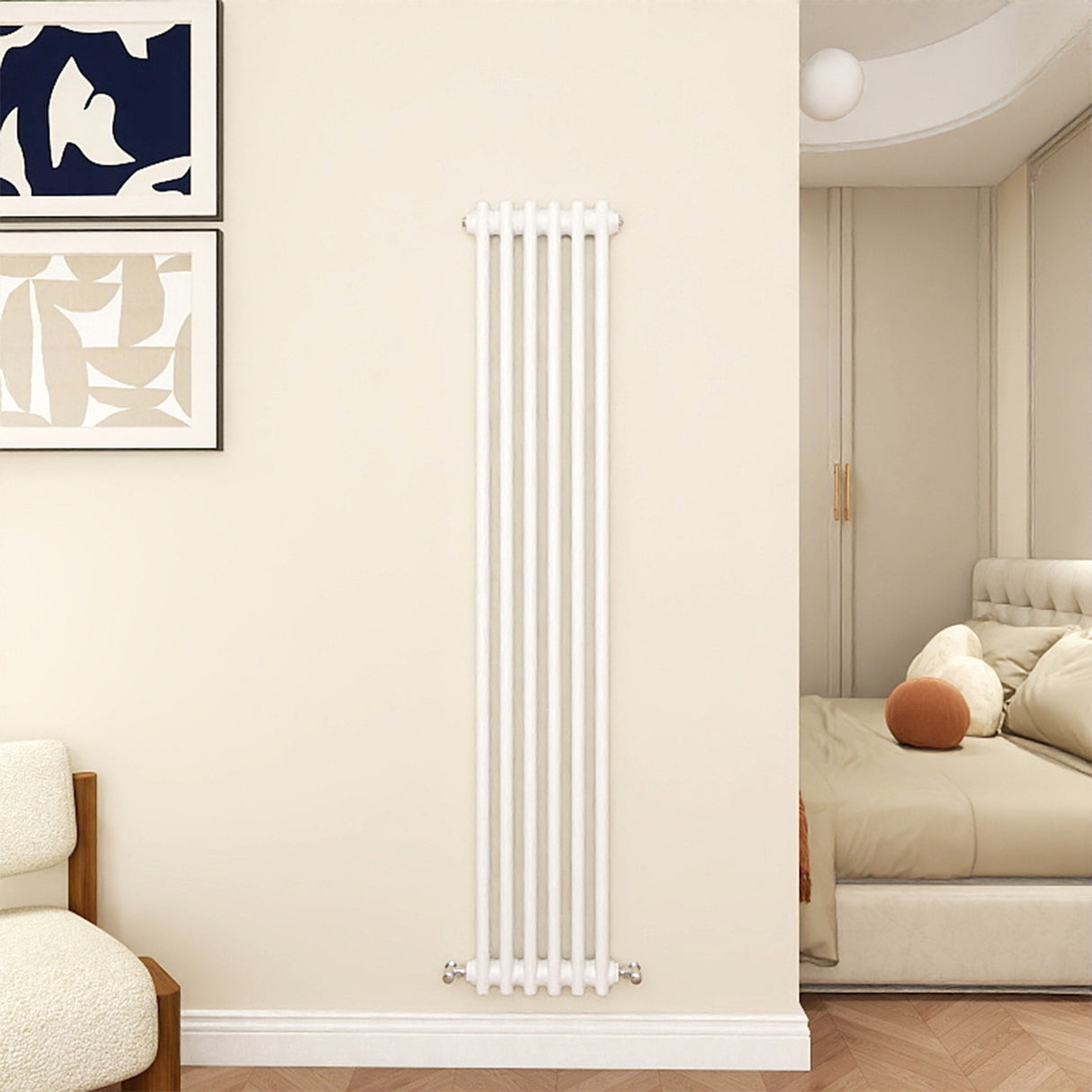

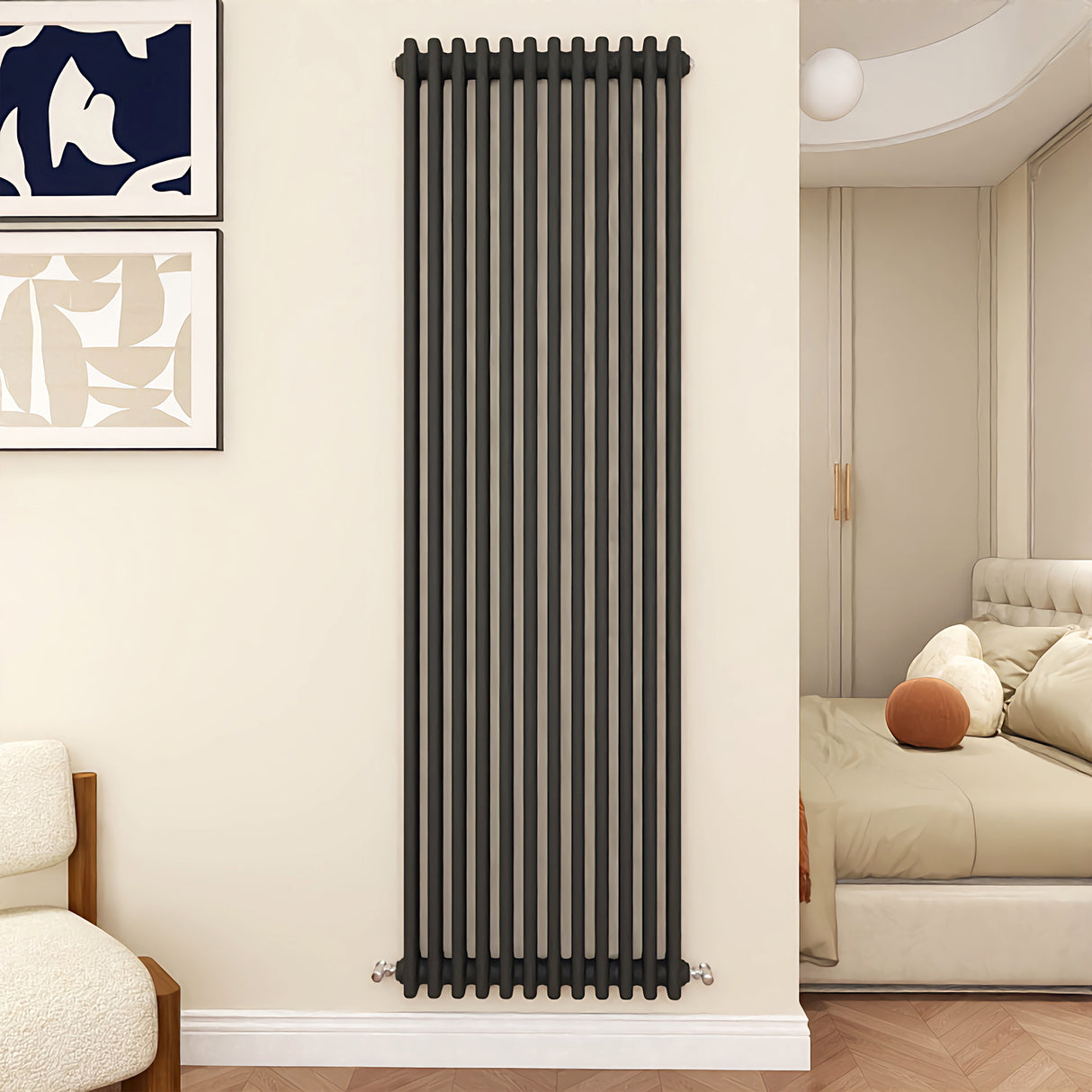

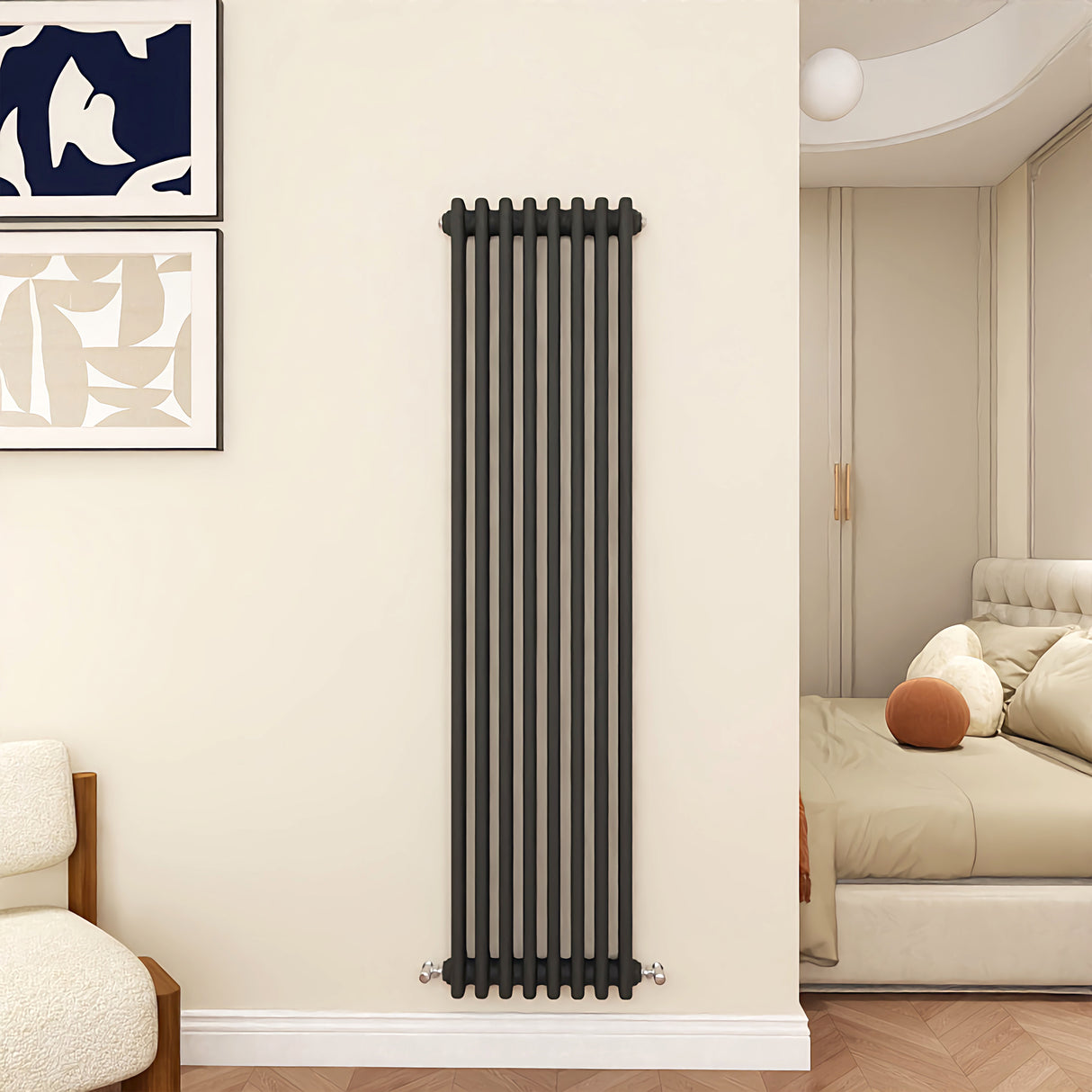

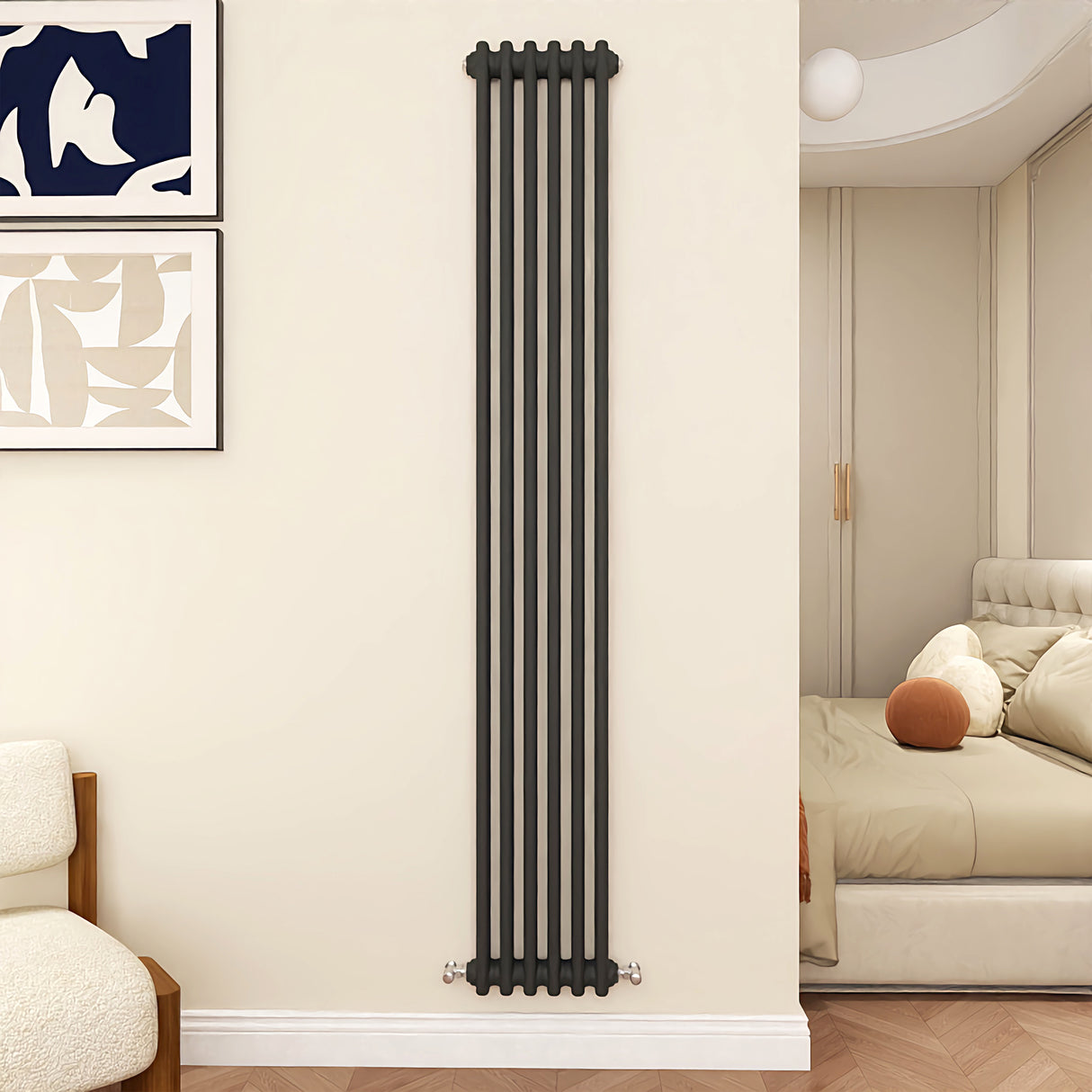

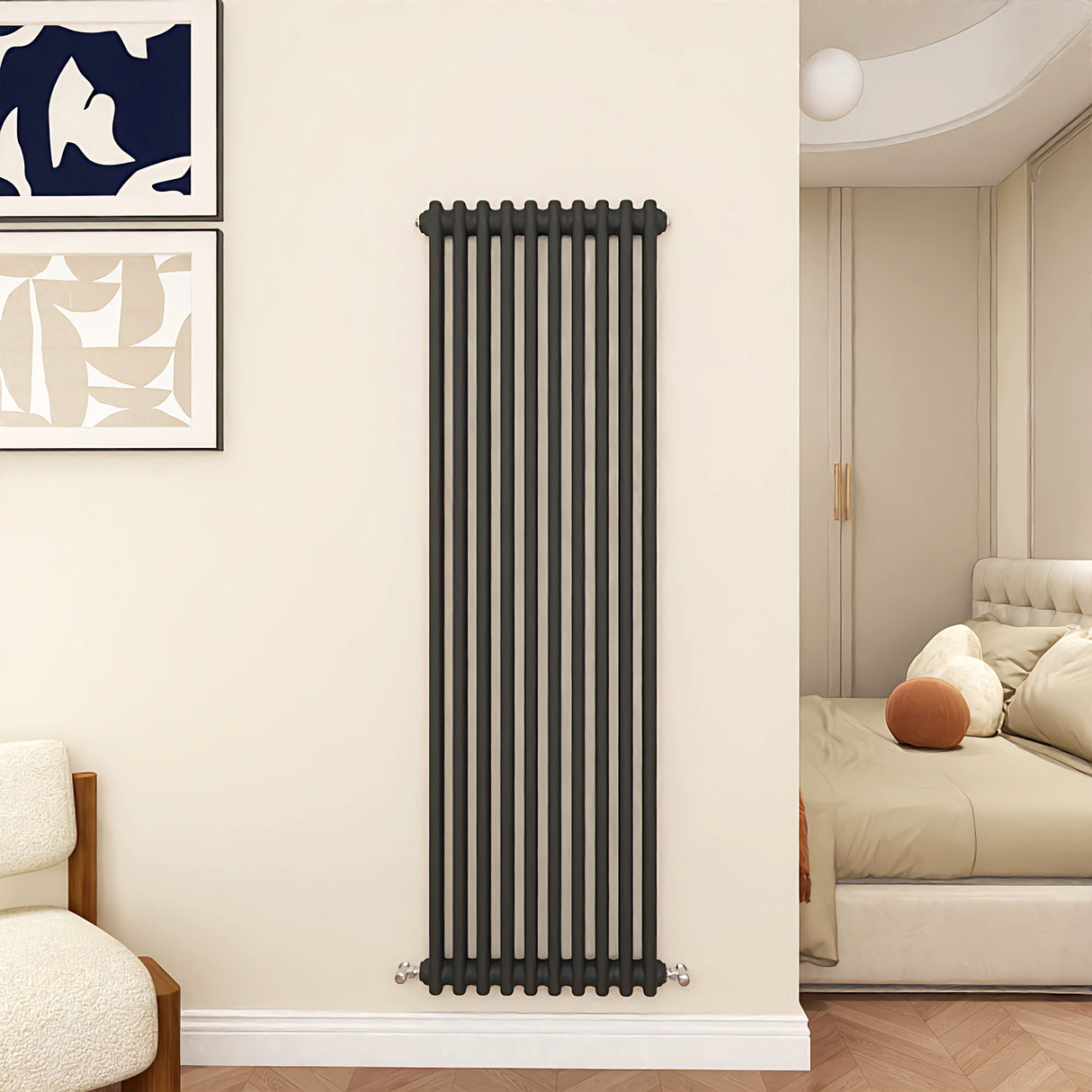

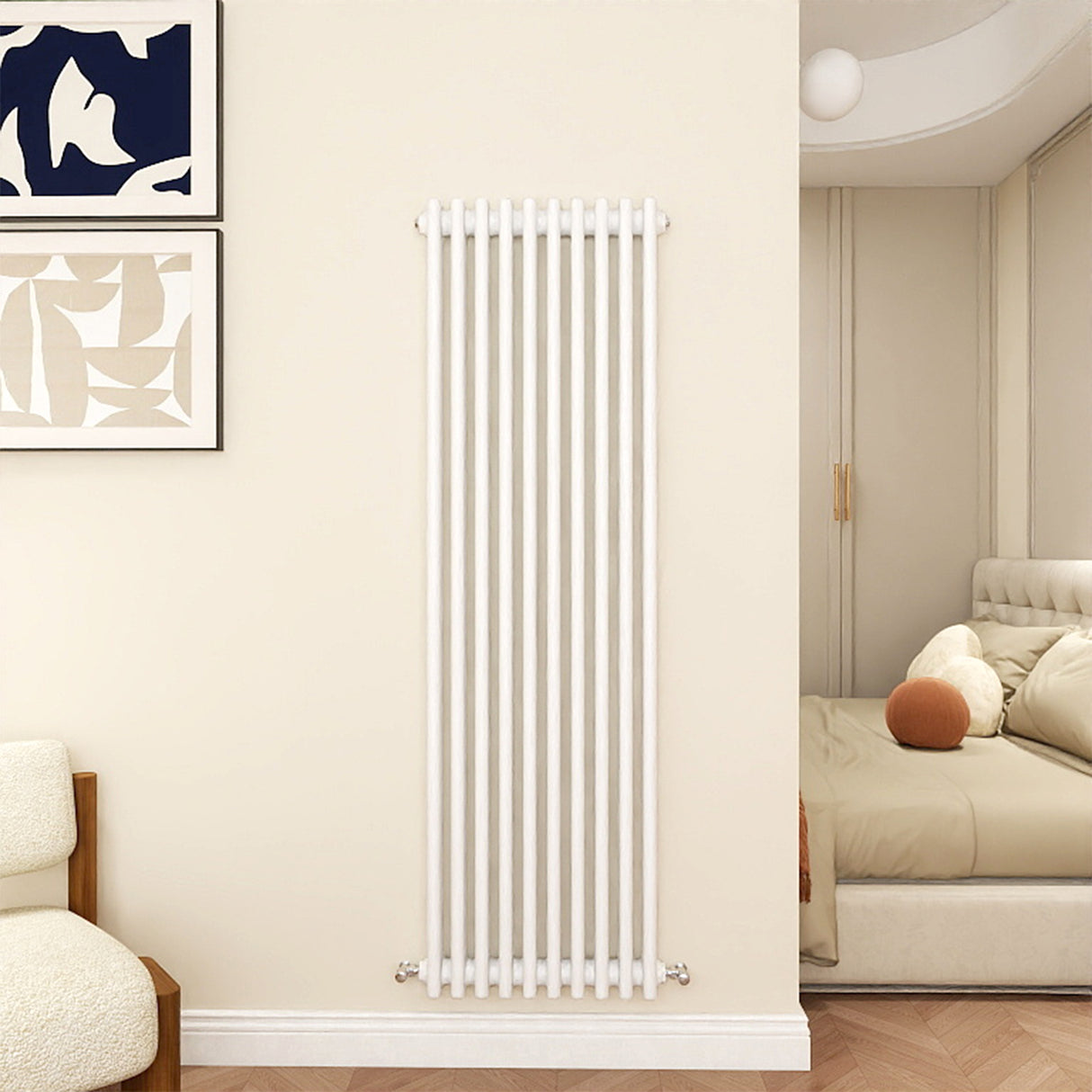

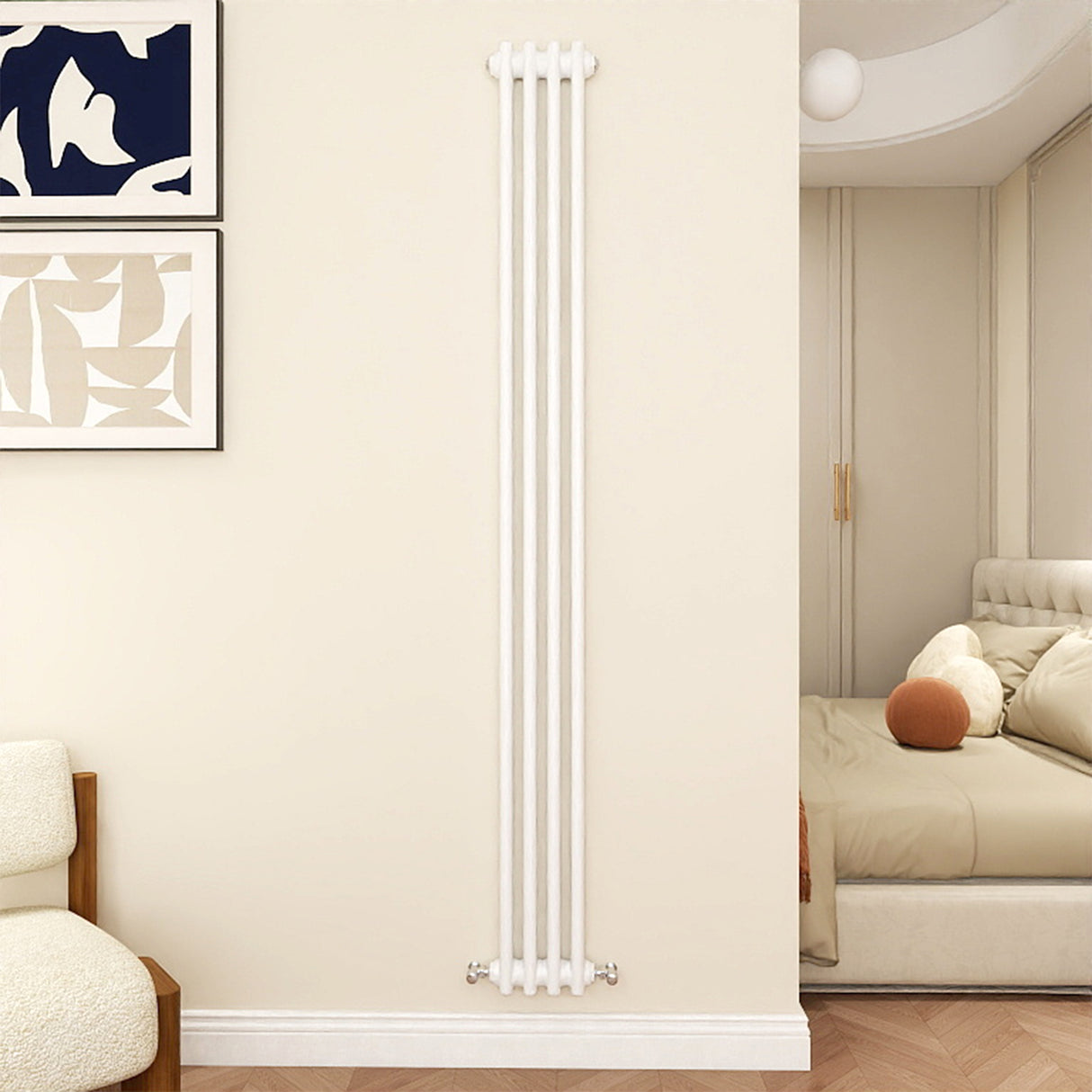

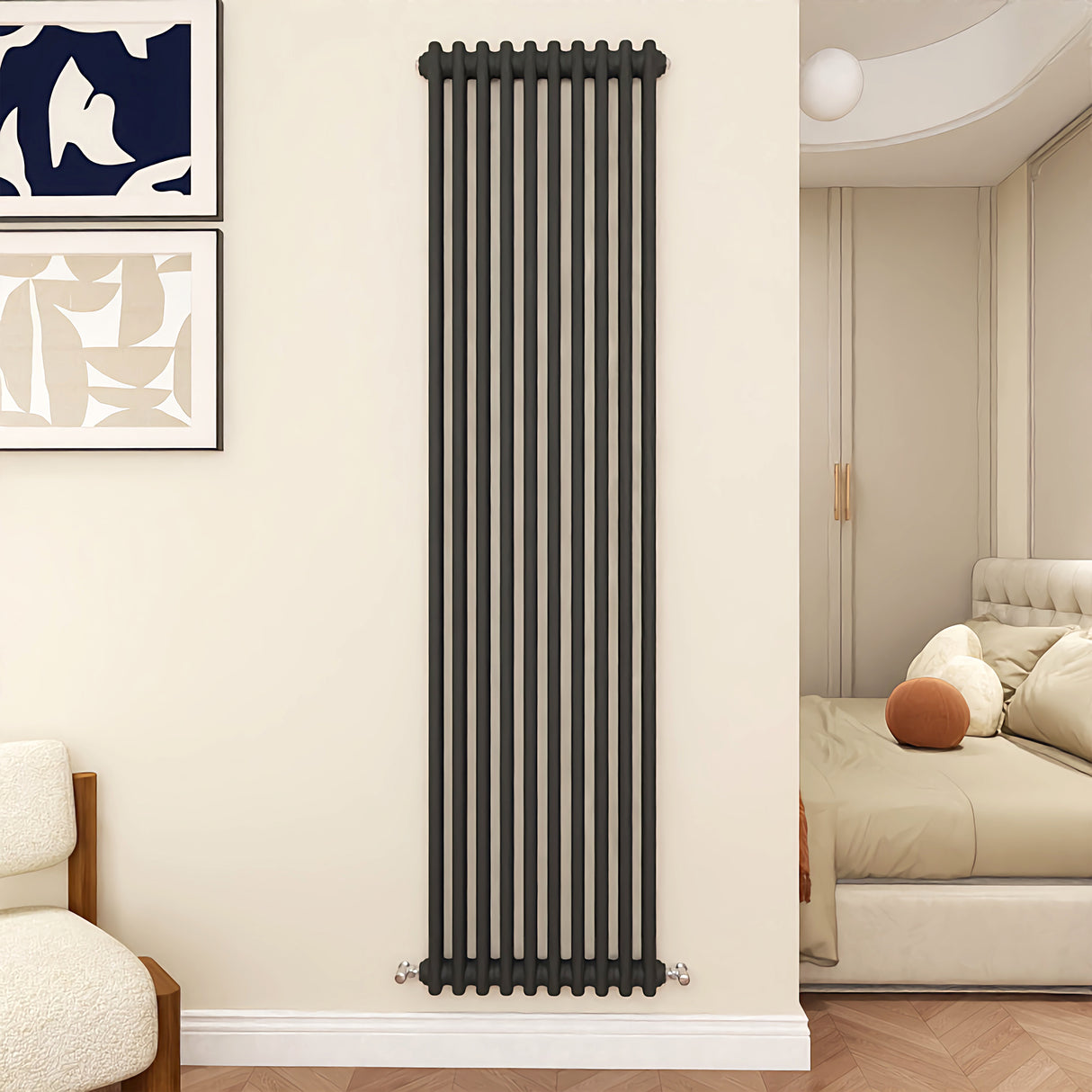

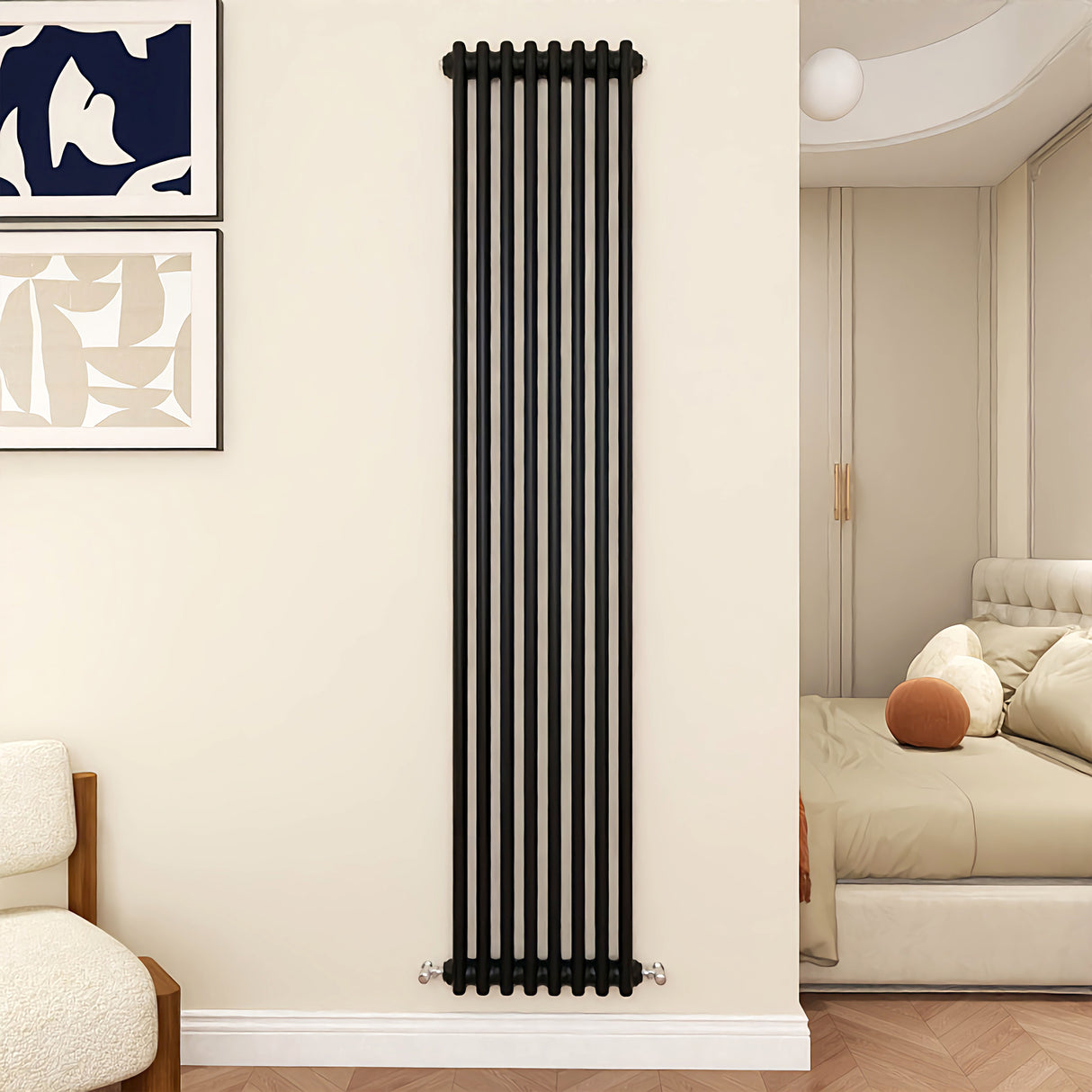

Tall Vertical 2-3 Column Radiator

Description：

• 15 years Warranty
• Made from 1.6mm Premium Mild Steel
• Triple layered finish
• Color: Anthracite/White
• Fully safety tested.
• Compatible for use on all UK heating systems
• It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.

Features And Details：

• High quality triple layered finish.
• Manufactured in accordance with BS EN 442
• 1/2" inlets and outlets
• Unique hot water circulation structure
• Wall mount installation
• Brackets and fixings included
• Valves are not included.But can be bought separately.
• (Note:Anthracite Color Is Matt and  the Black and White Color Are Gloss.)

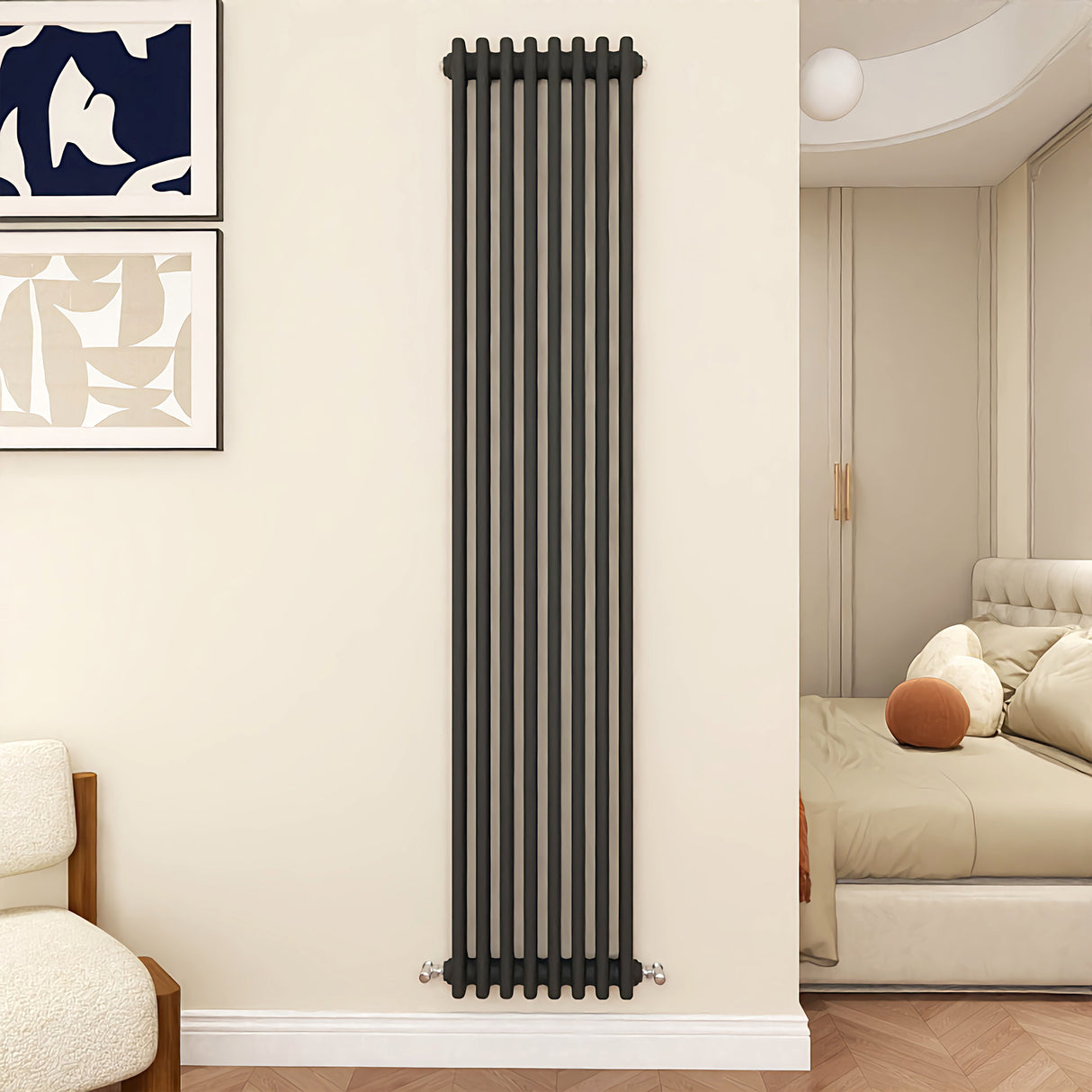

Tall Vertical 3 Column Heating Radiator:

Model	Size (HxW)	Panel	Bars	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Traditional Style	1500 x 200 mm	3 Column	4	16.4	852	2907	Click to view
Traditional Style	1500 x 290 mm	3 Column	6	25.6	1278	4361	Click to view
Traditional Style	1500 x 380 mm	3 Column	8	34.7	1701	5805	Click to view
Traditional Style	1500 x 470 mm	3 Column	10	43.3	2121	7238	Click to view
Traditional Style	1500 x 560 mm	3 Column	12	51.9	2543	8678	Click to view
Traditional Style	1800 x 200 mm	3 Column	4	21.2	1004	3426	Click to view
Traditional Style	1800 x 290 mm	3 Column	6	31.1	1506	5138	Click to view
Traditional Style	1800 x 380 mm	3 Column	8	40.8	2007	6851	Click to view
Traditional Style	1800 x 470 mm	3 Column	10	51	2509	8564	Click to view
Traditional Style	1800 x 560 mm	3 Column	12	61.2	3008	10265	Click to view

Tall Vertical 2 Column Heating Radiator:

Model	Size (HxW)	Panel	Bars	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Traditional Style	1500 x 200 mm	2 Column	4	11.6	612	2090	Click to view
Traditional Style	1500 x 290 mm	2 Column	6	17	920	3140	Click to view
Traditional Style	1500 x 380 mm	2 Column	8	22.4	1221	4168	Click to view
Traditional Style	1500 x 470 mm	2 Column	10	28	1530	5222	Click to view
Traditional Style	1500 x 560 mm	2 Column	12	33.6	1830	6245	Click to view
Traditional Style	1800 x 200 mm	2 Column	4	14.5	736	2511	Click to view
Traditional Style	1800 x 290 mm	2 Column	6	20.9	1105	3770	Click to view
Traditional Style	1800 x 380 mm	2 Column	8	28.2	1468	5010	Click to view
Traditional Style	1800 x 470 mm	2 Column	10	35.2	1834	6260	Click to view
Traditional Style	1800 x 560 mm	2 Column	12	42.3	2201	7512	Click to view

*Not recommend to install any pipework before you receive your radiator.

*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.
