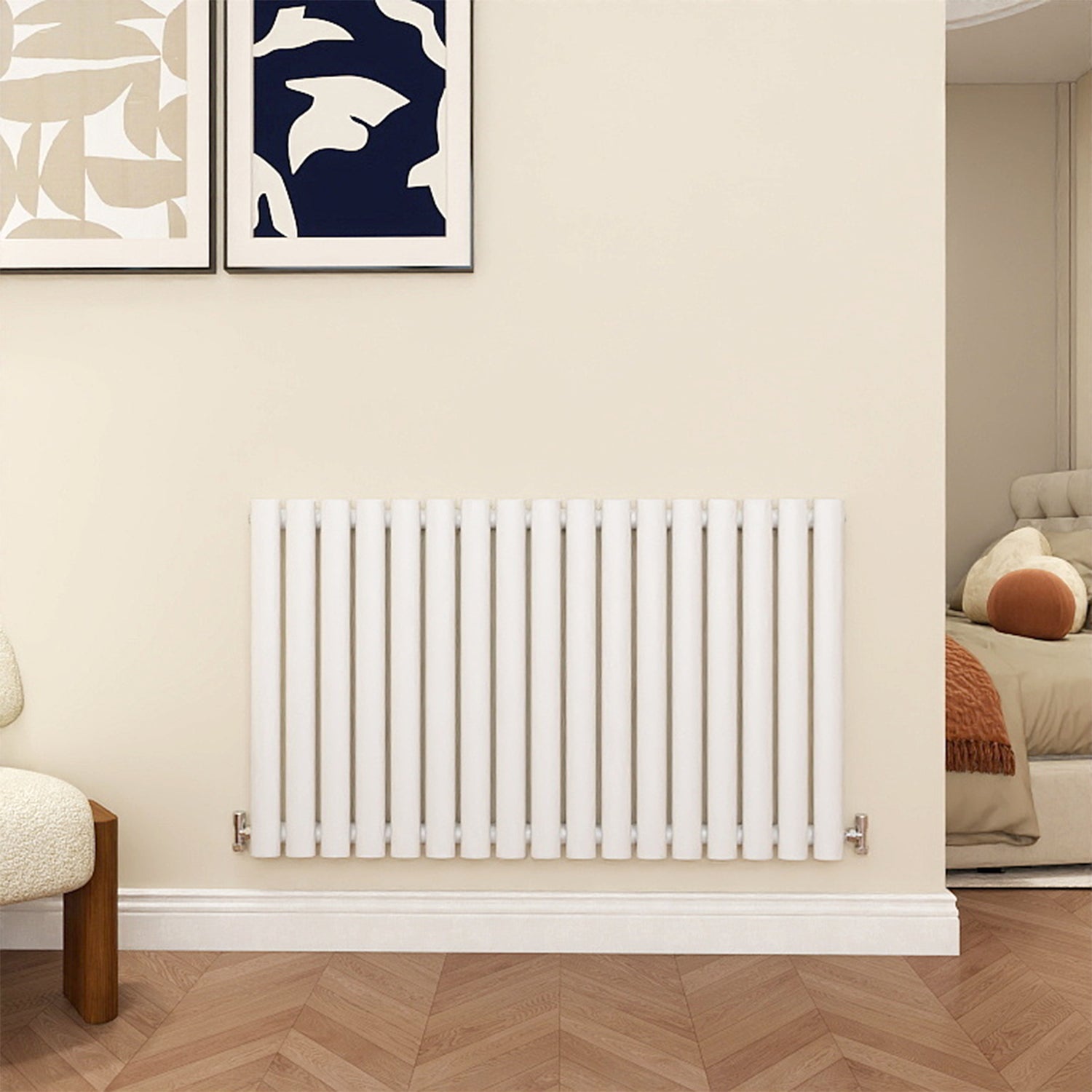

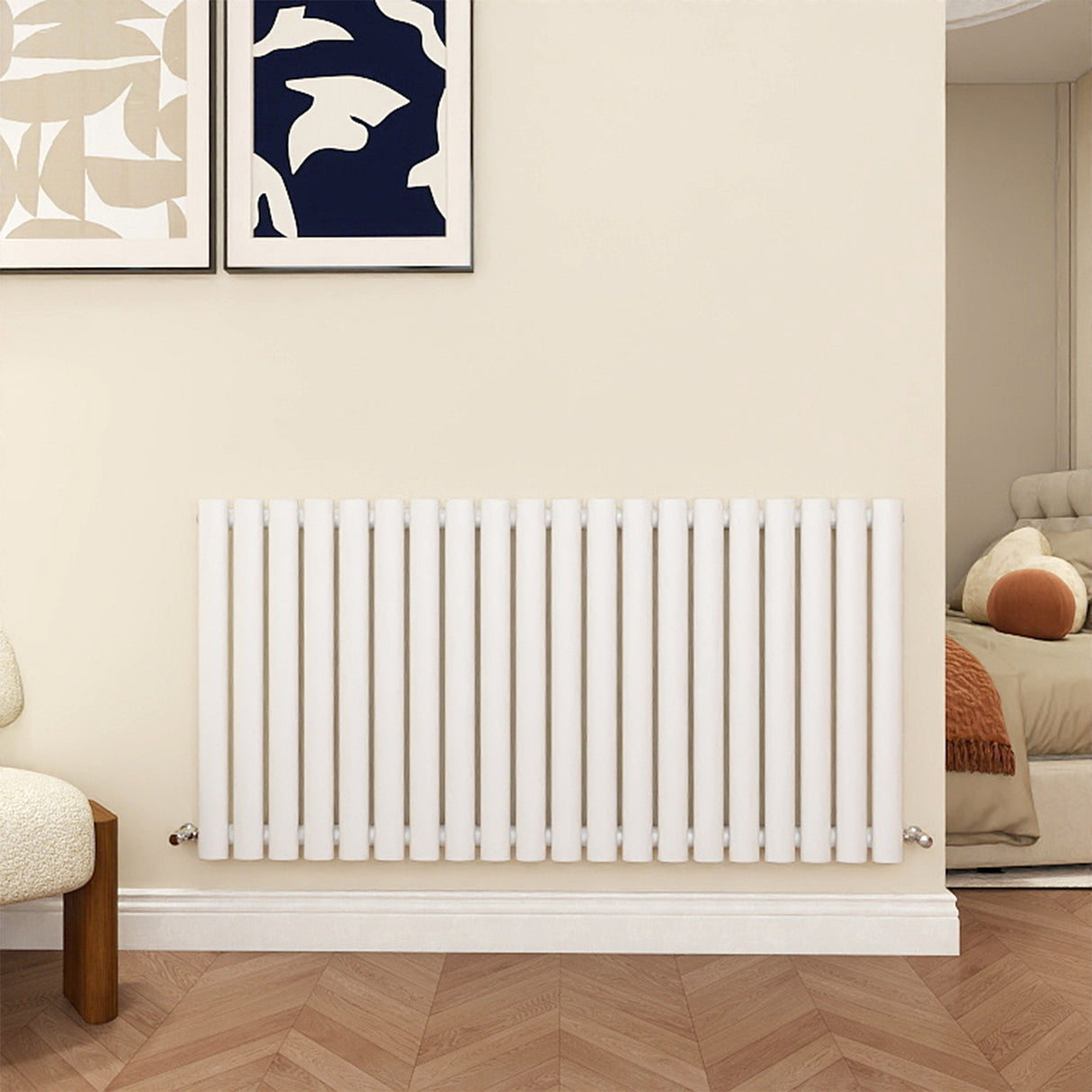

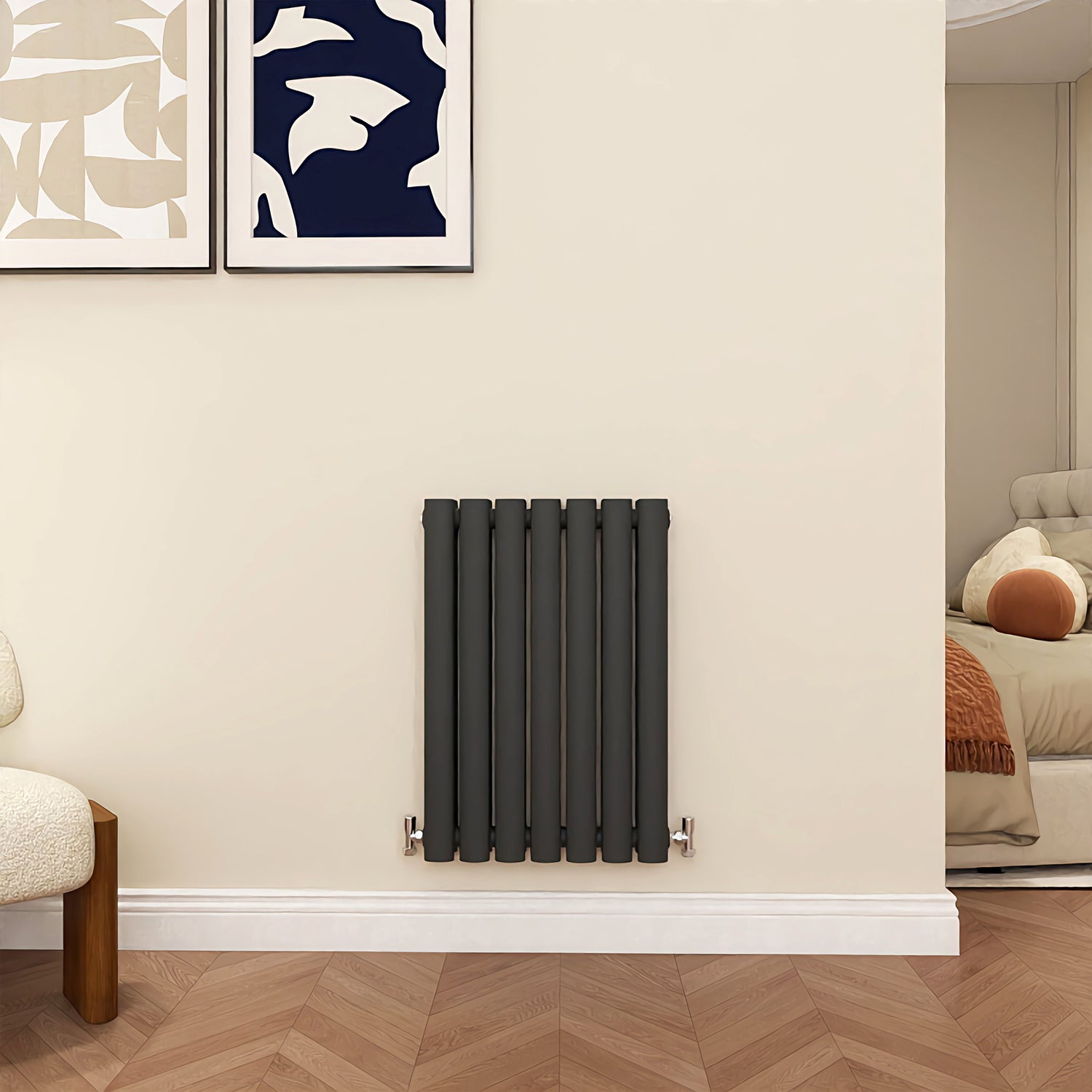

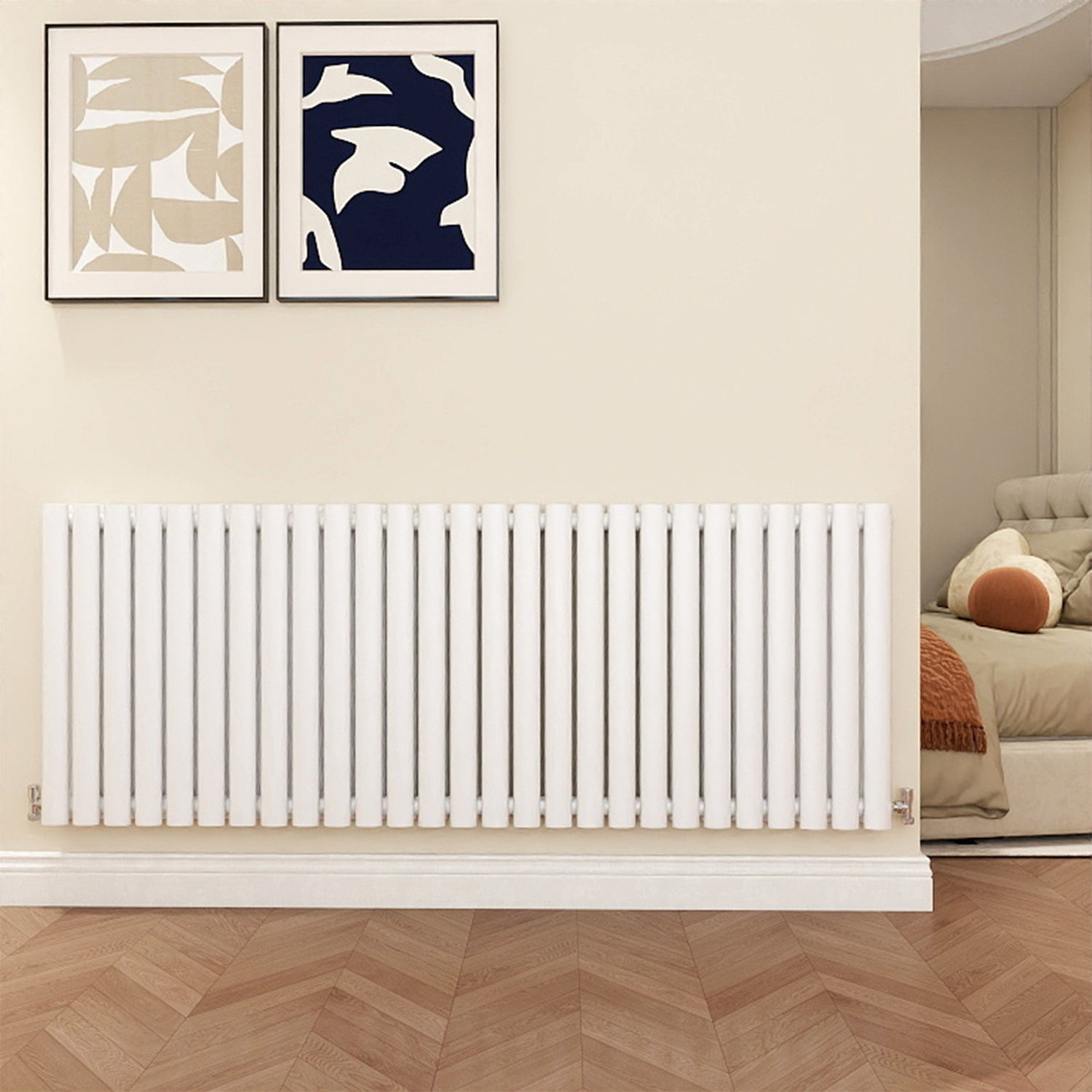

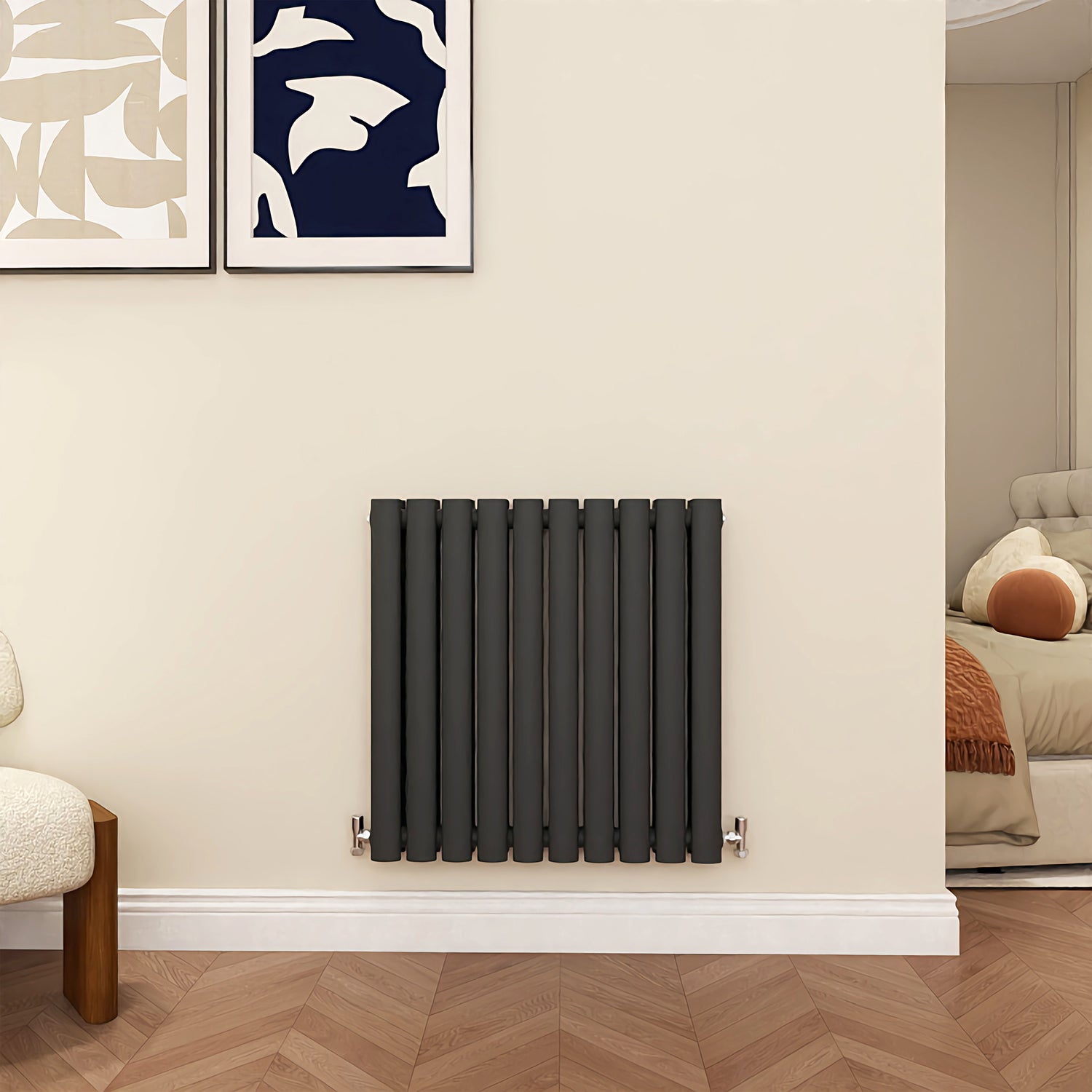

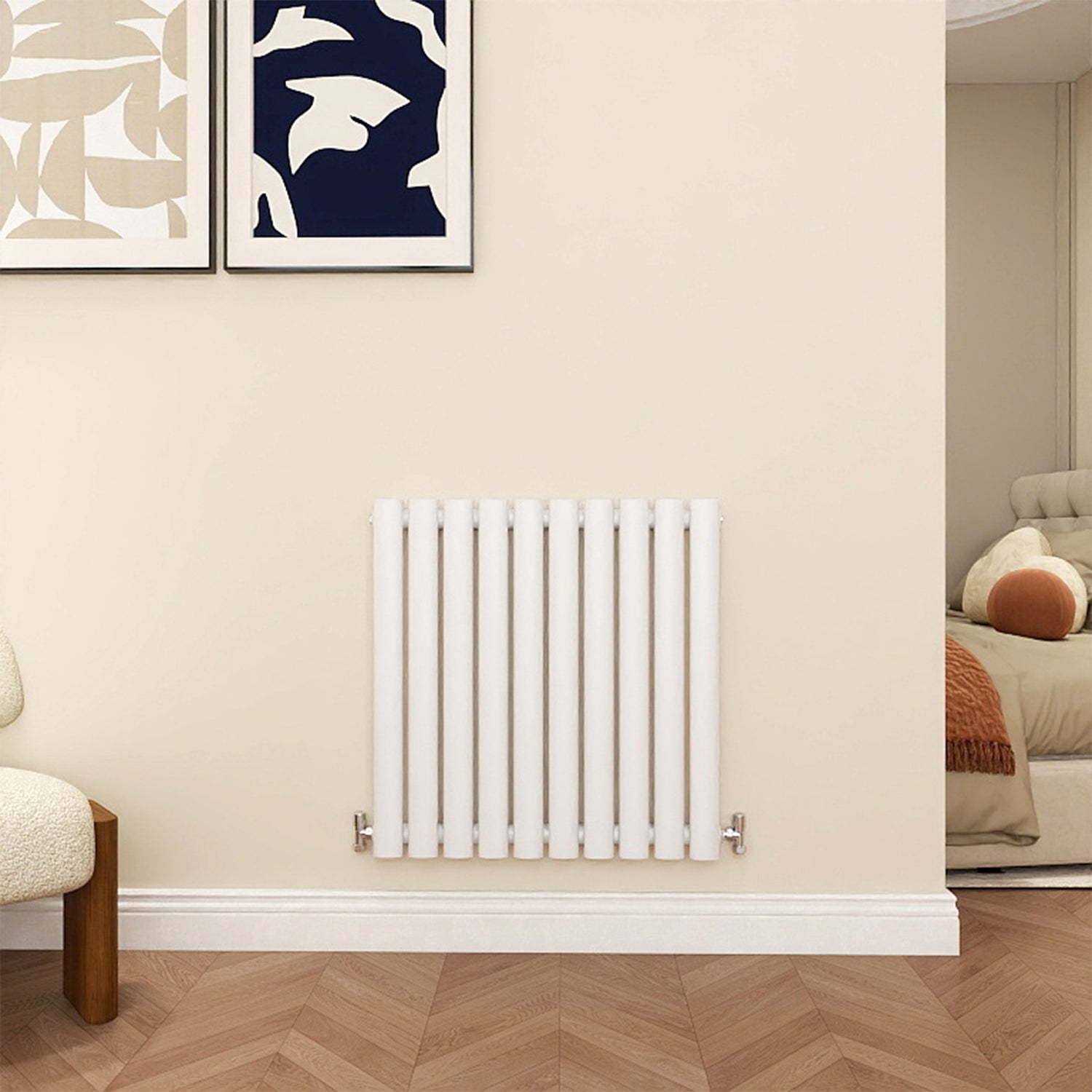

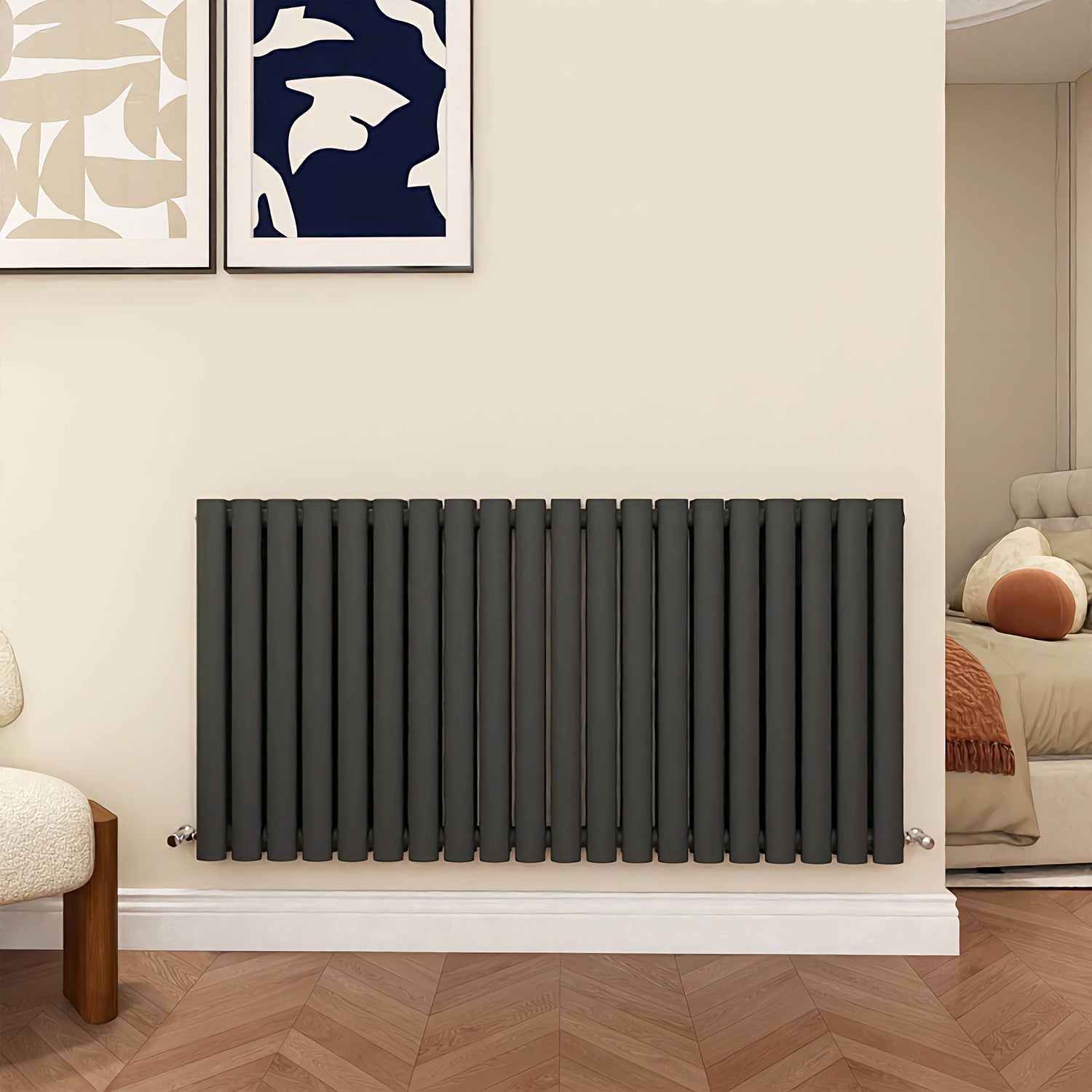

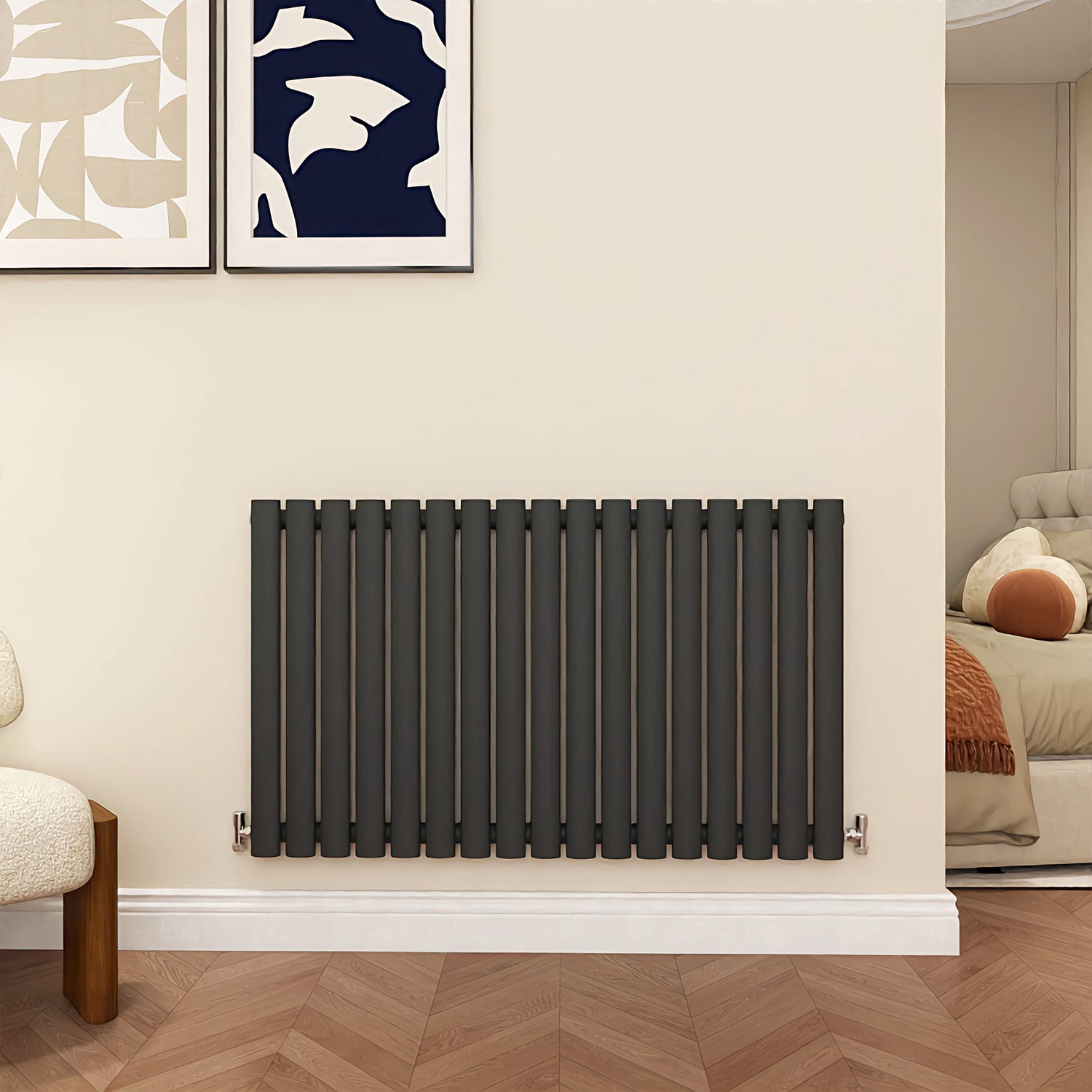

Horizontal Designer Oval Column Heating Radiator UK

Description：

• With a strict manufacturing process, our radiators offer you a heating solution at an competitive price.
• They easily fit into your central heating system like a normal household radiator, meaning no complicated installation.
• The water inlet/outlet size of radiators is 1/2".
• All of our radiators come with lifetime warranty.
• It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.

Features And Details：

• 15 years warranty
• High quality triple layered finish.
• Manufactured in accordance with BS EN 442
• 1/2" inlets and outlets
• Made from 1.6mm Premium Mild Steel
• Unique hot water circulation structure

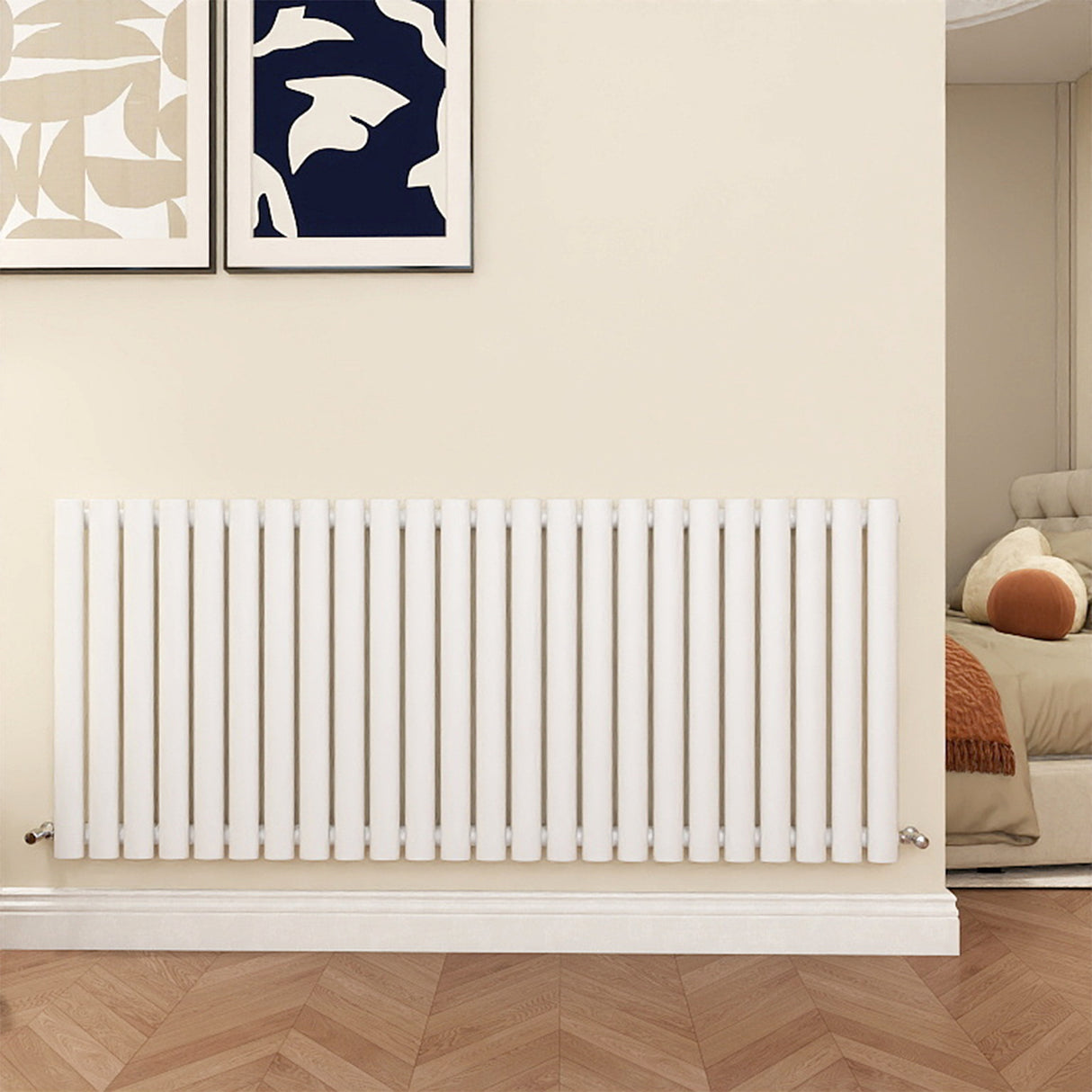

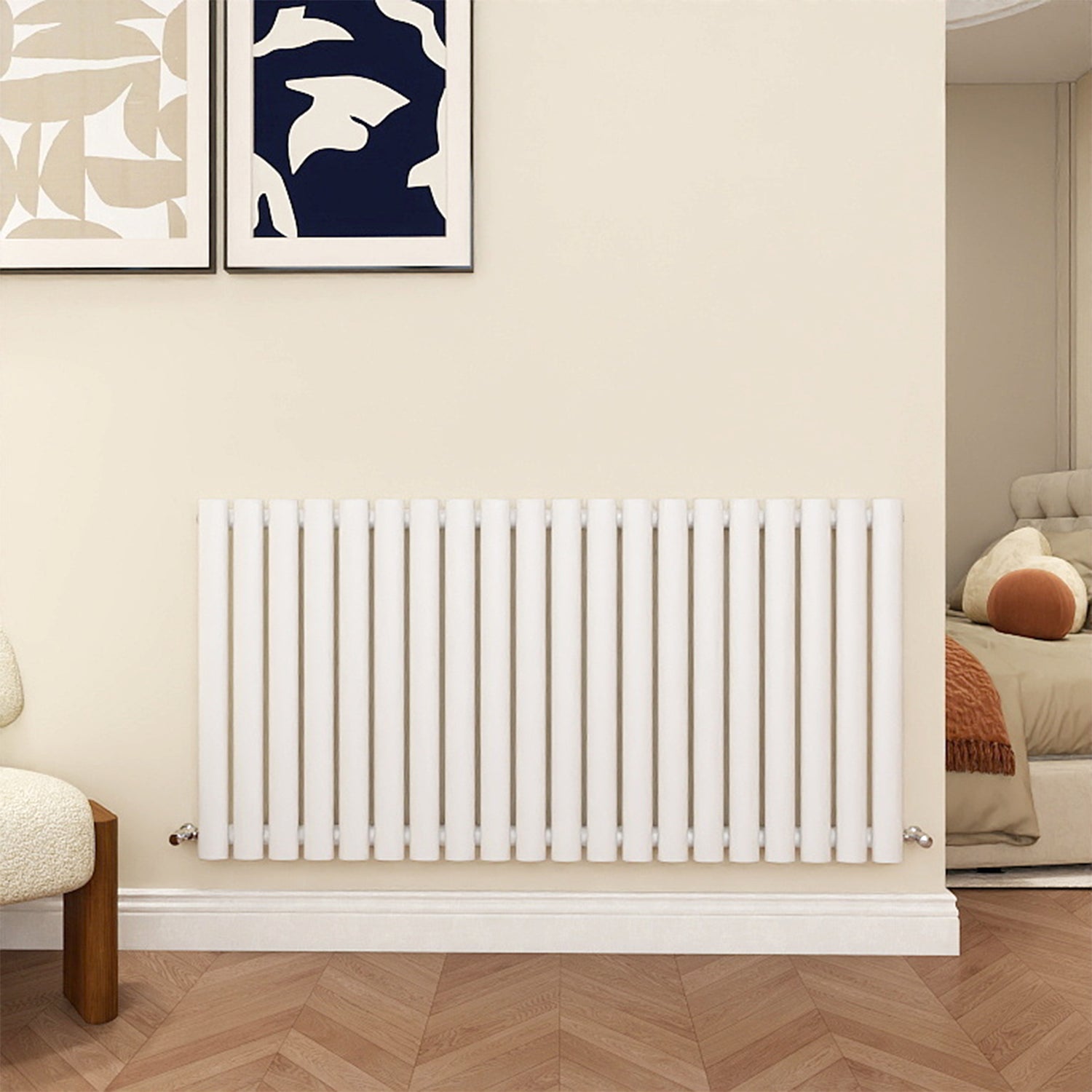

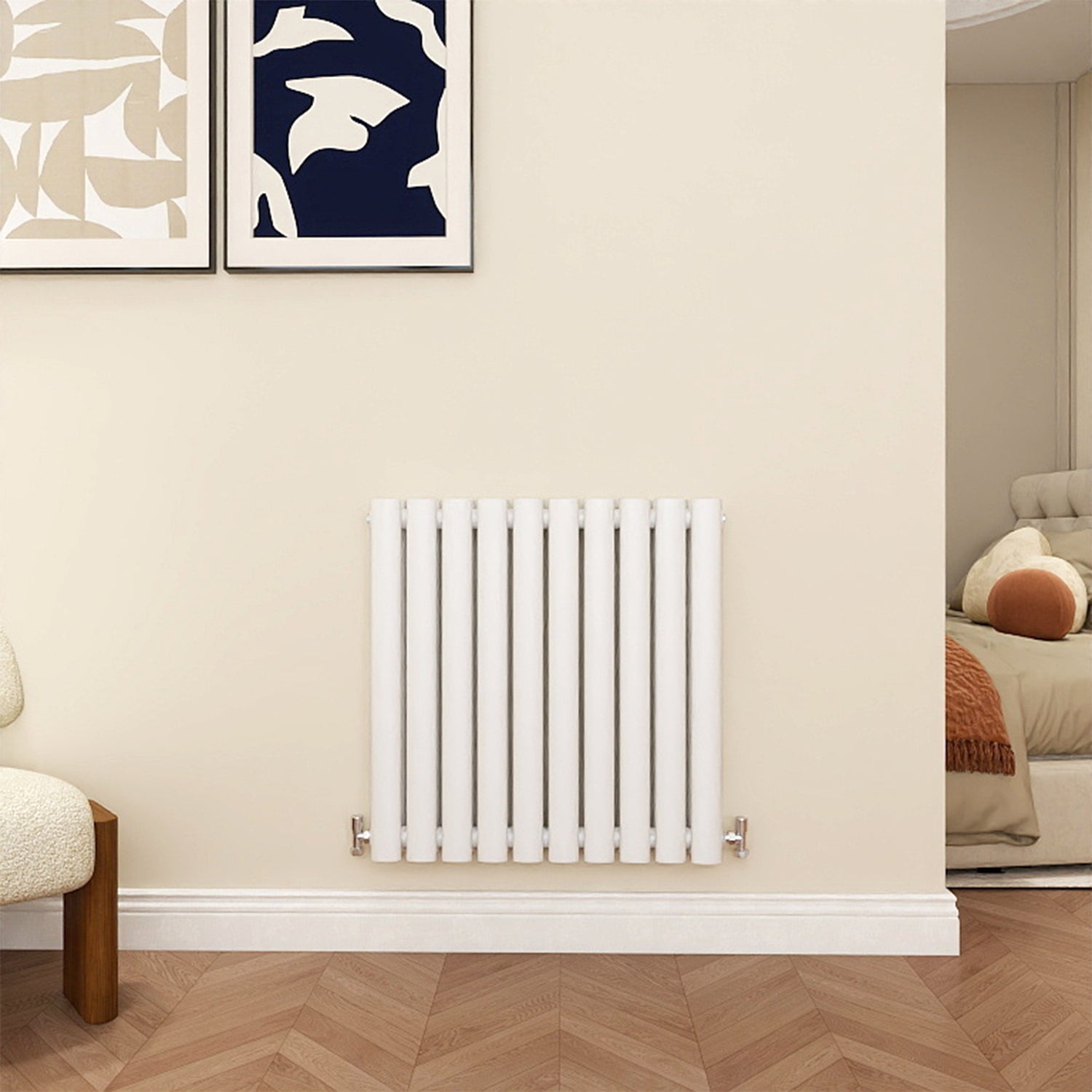

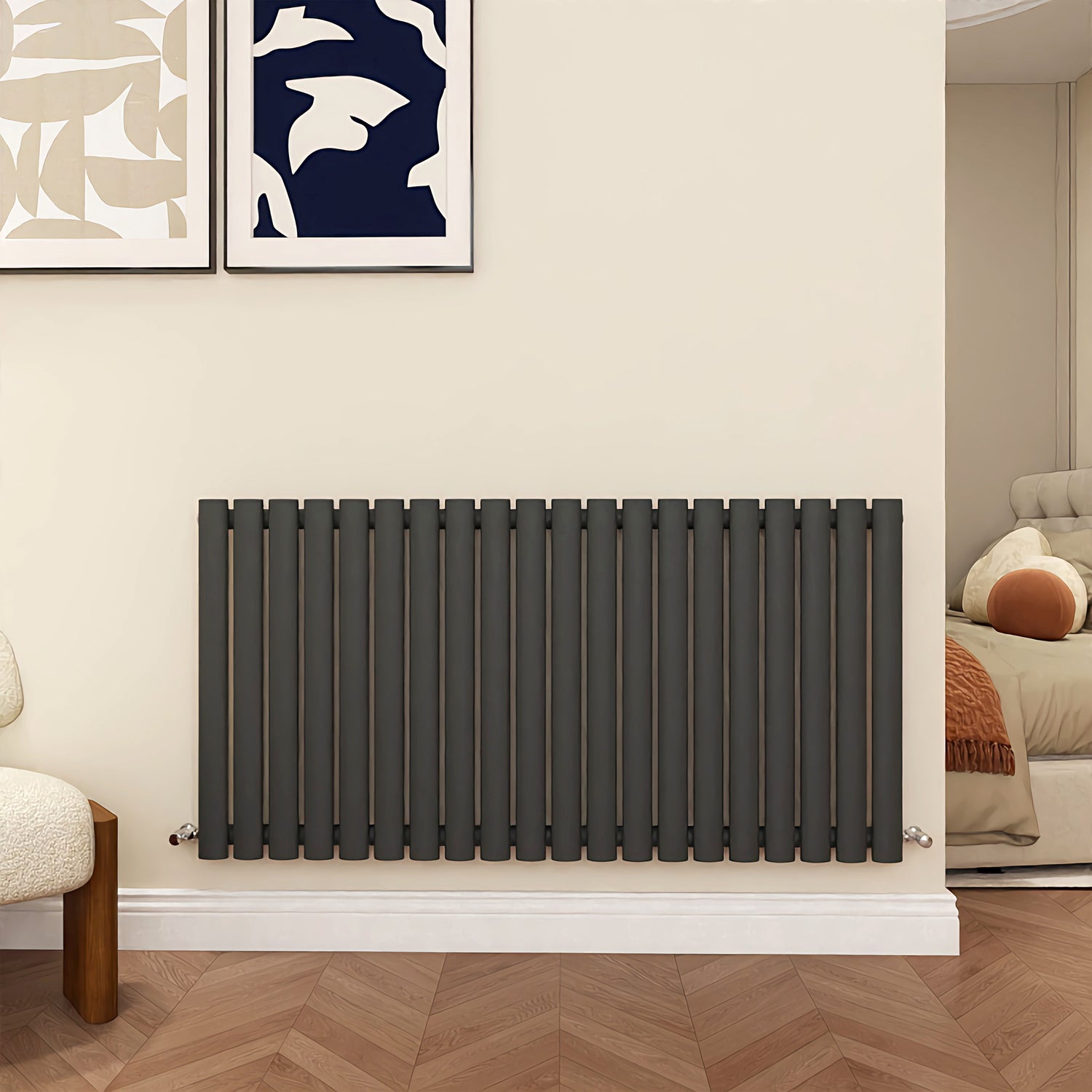

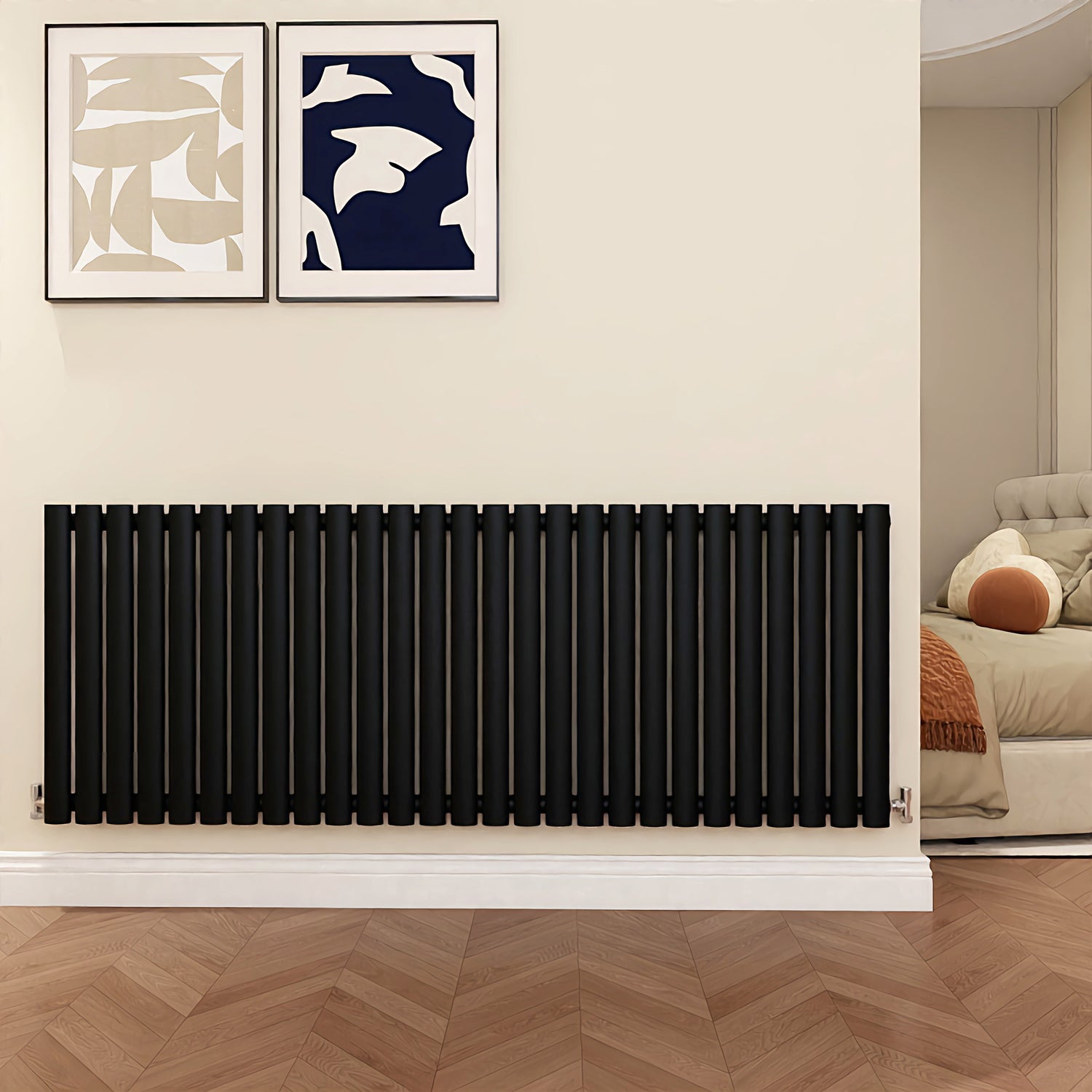

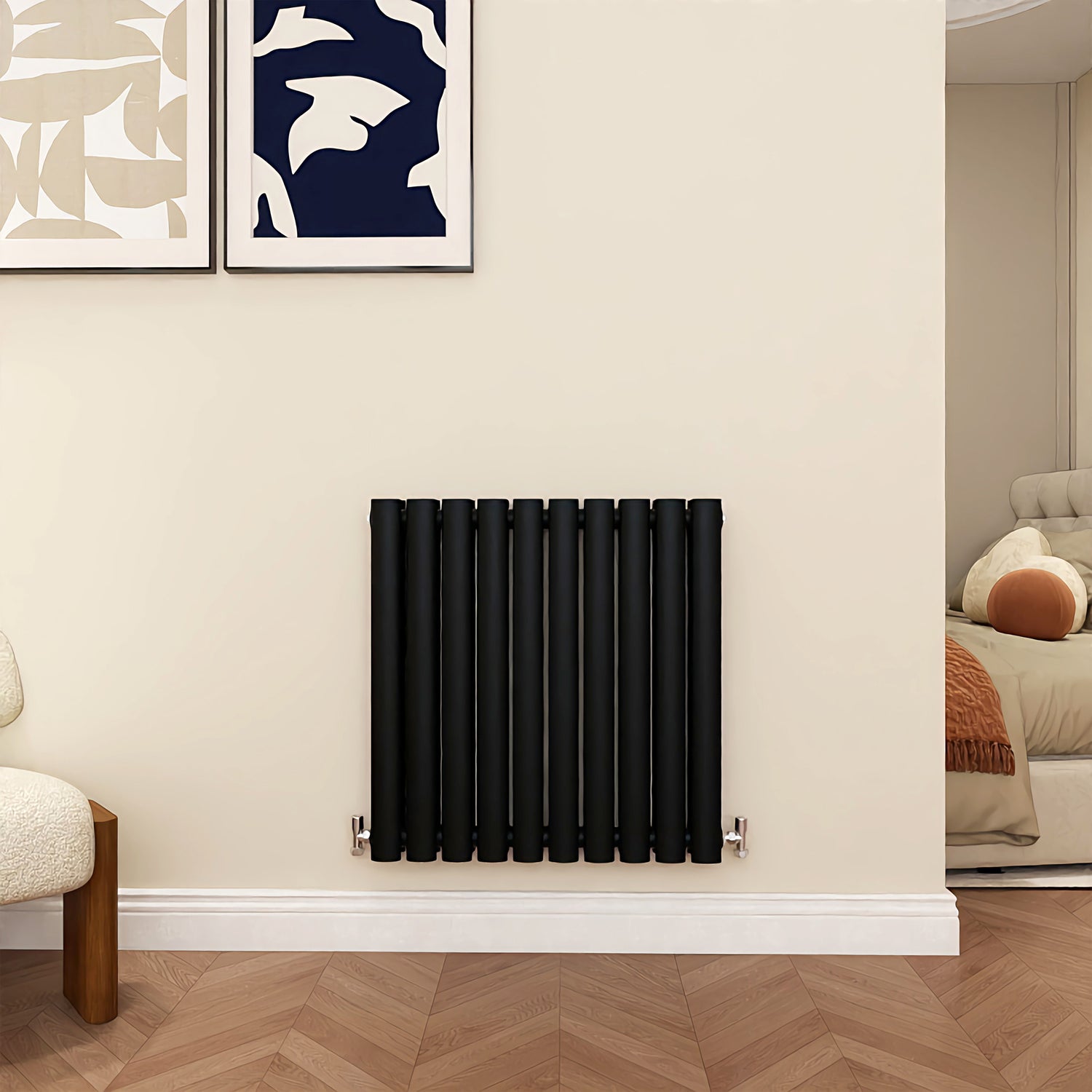

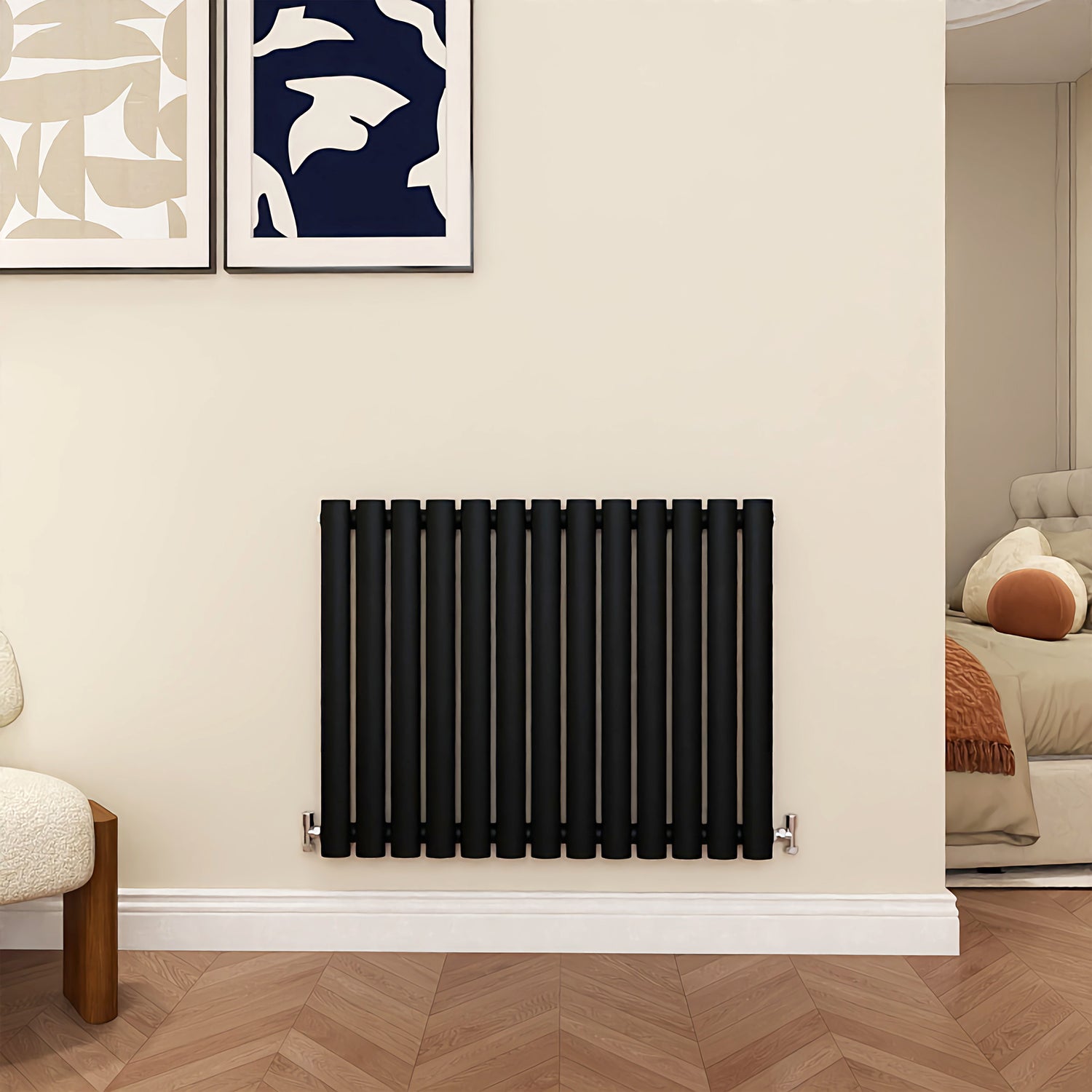

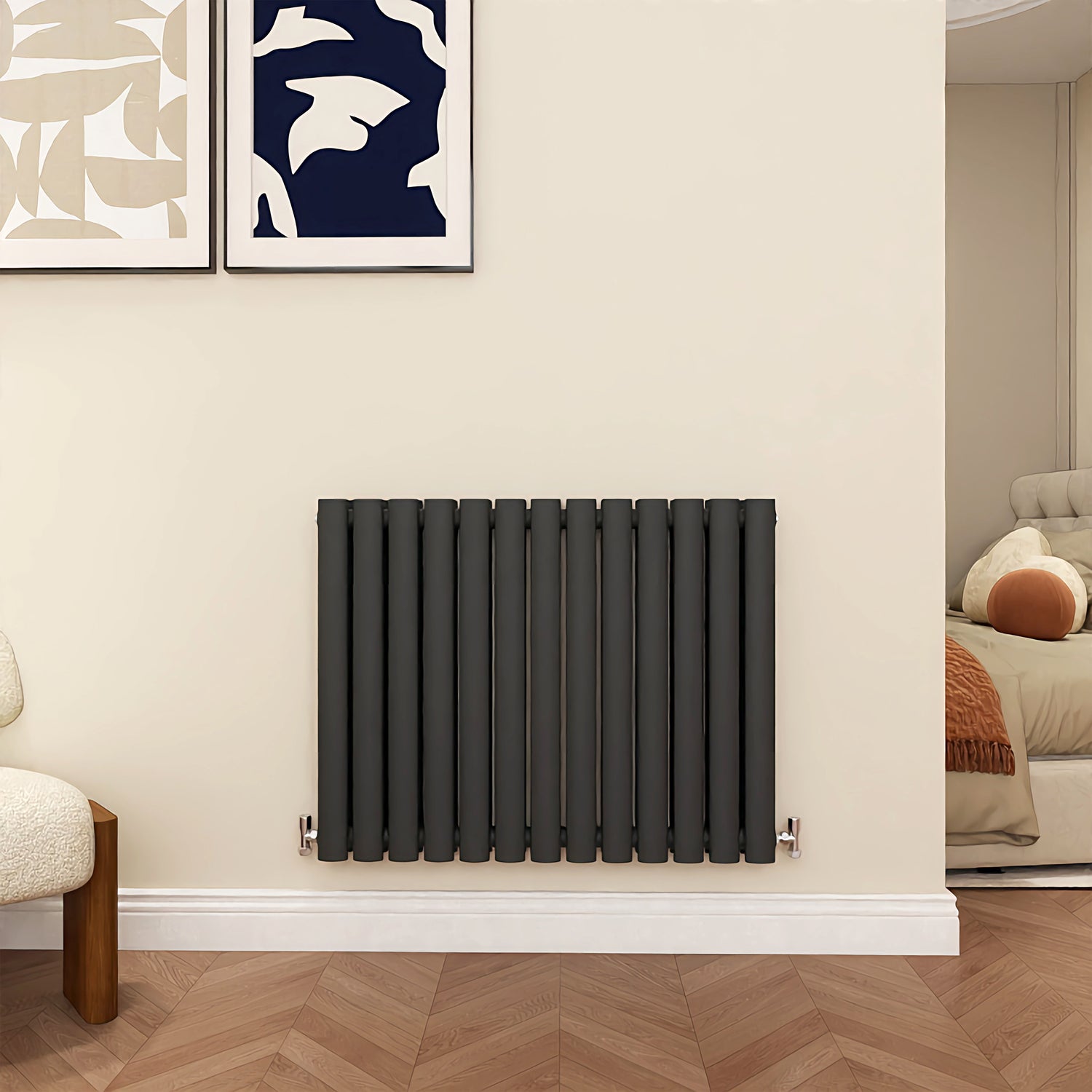

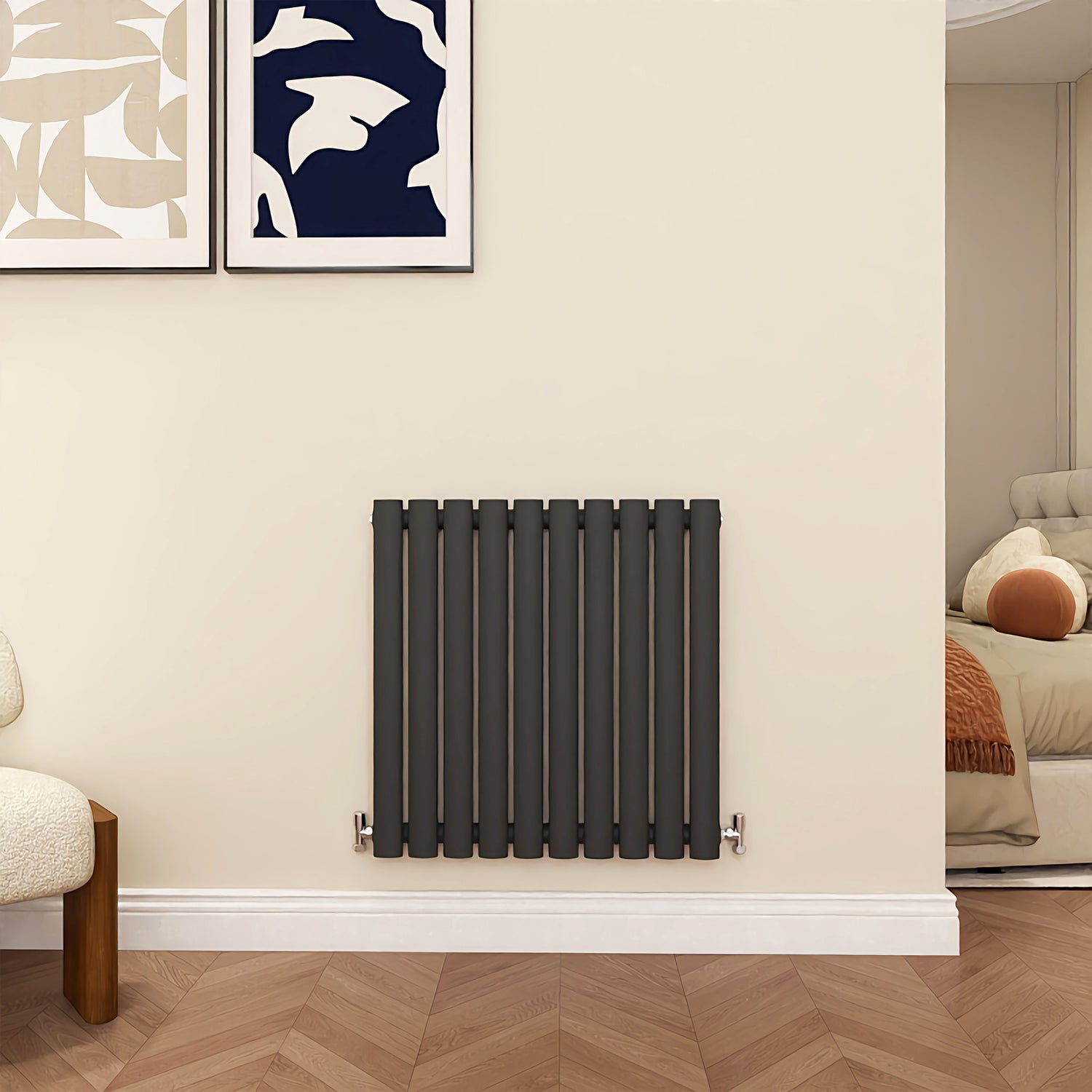

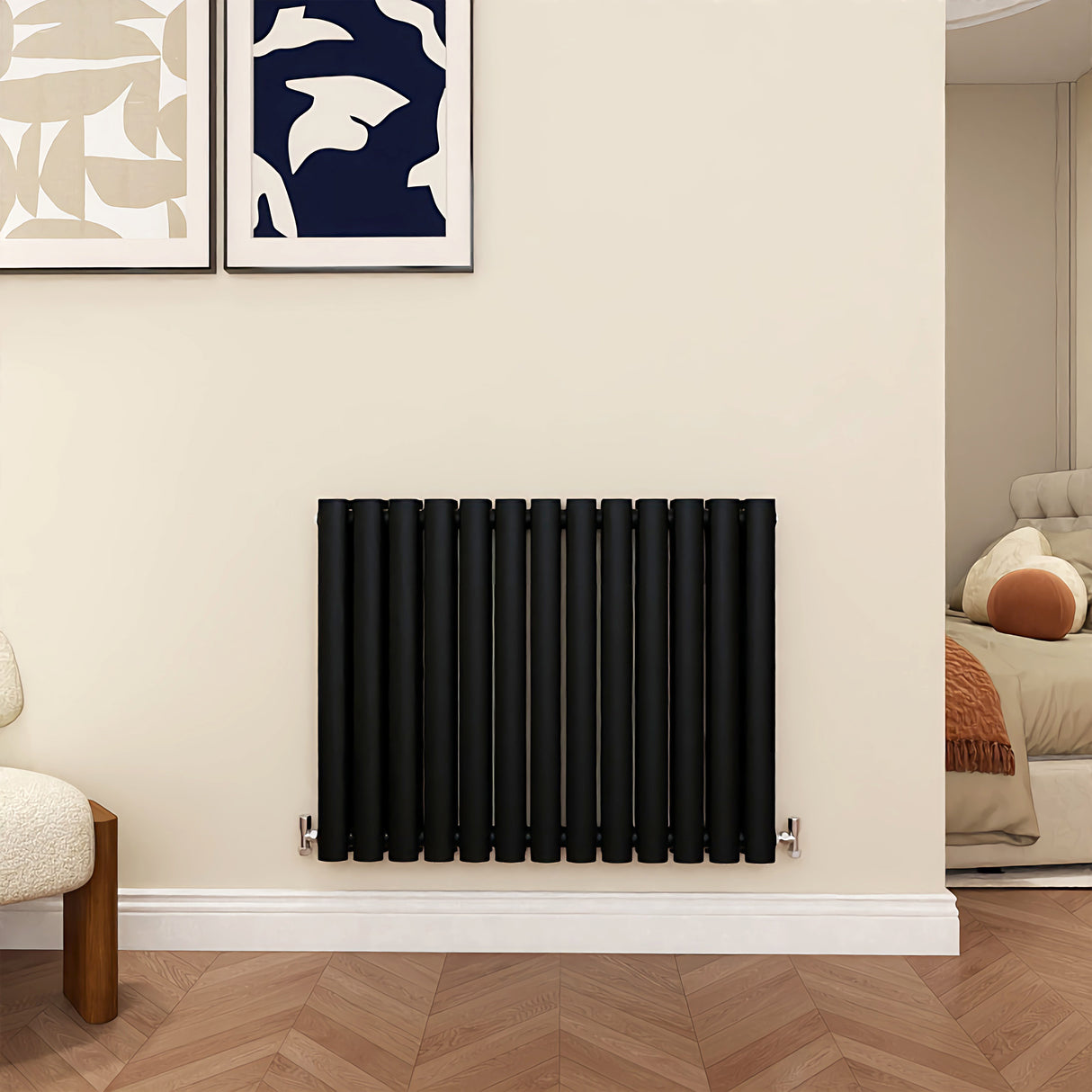

• Modern style horizontal oval column high quality radiator
• Wall mount or stand-up installation
• Brackets and fixings included
• Valves are not included.

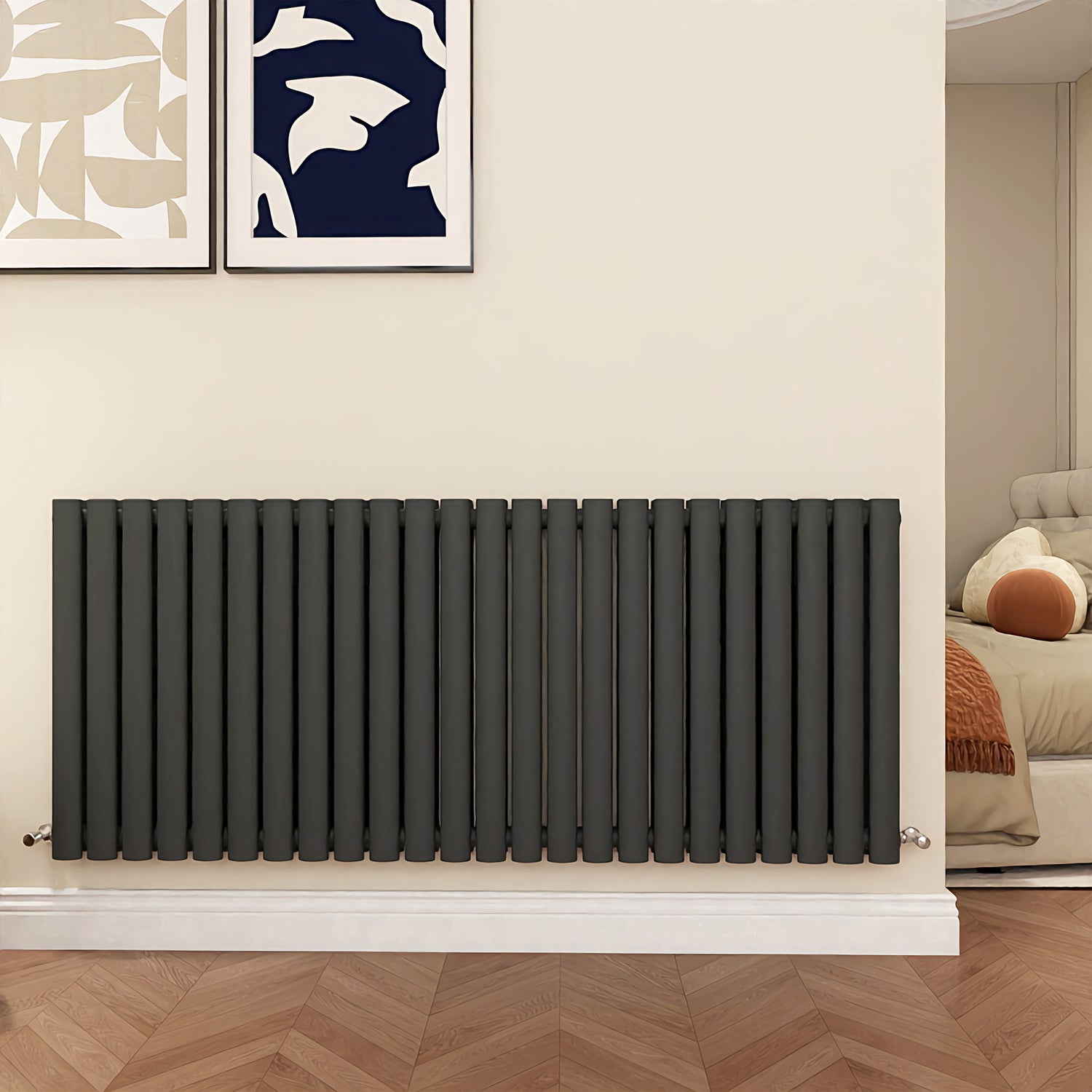

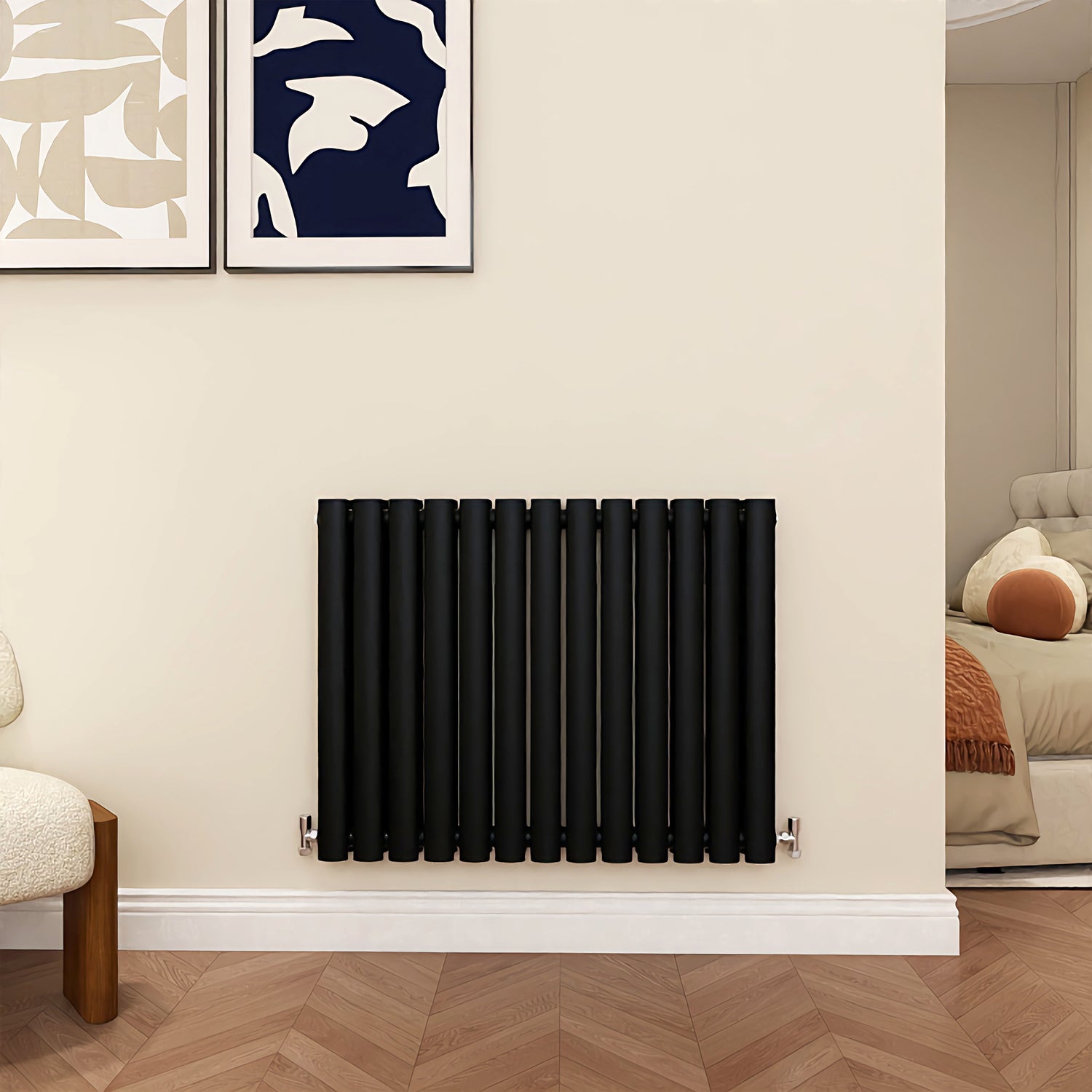

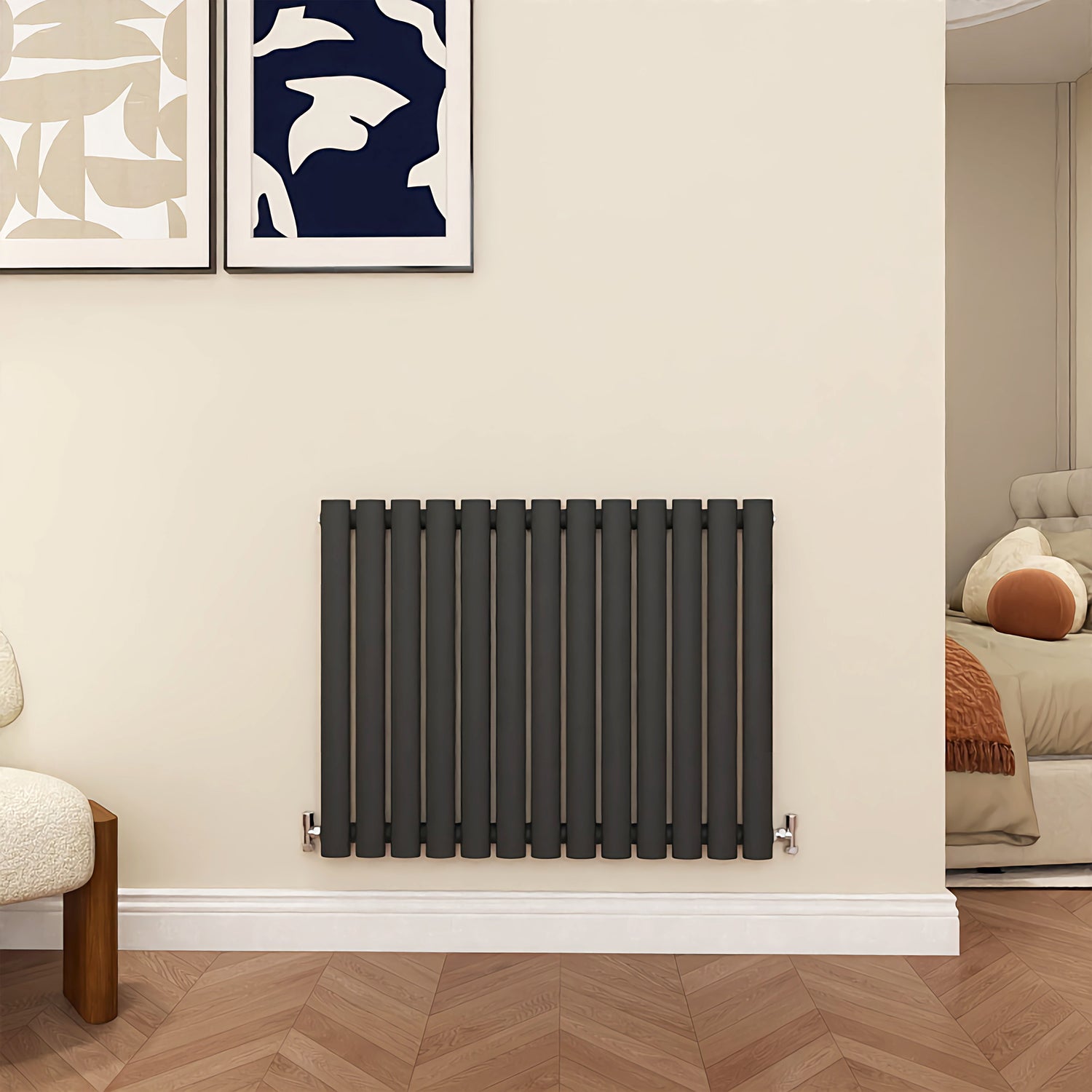

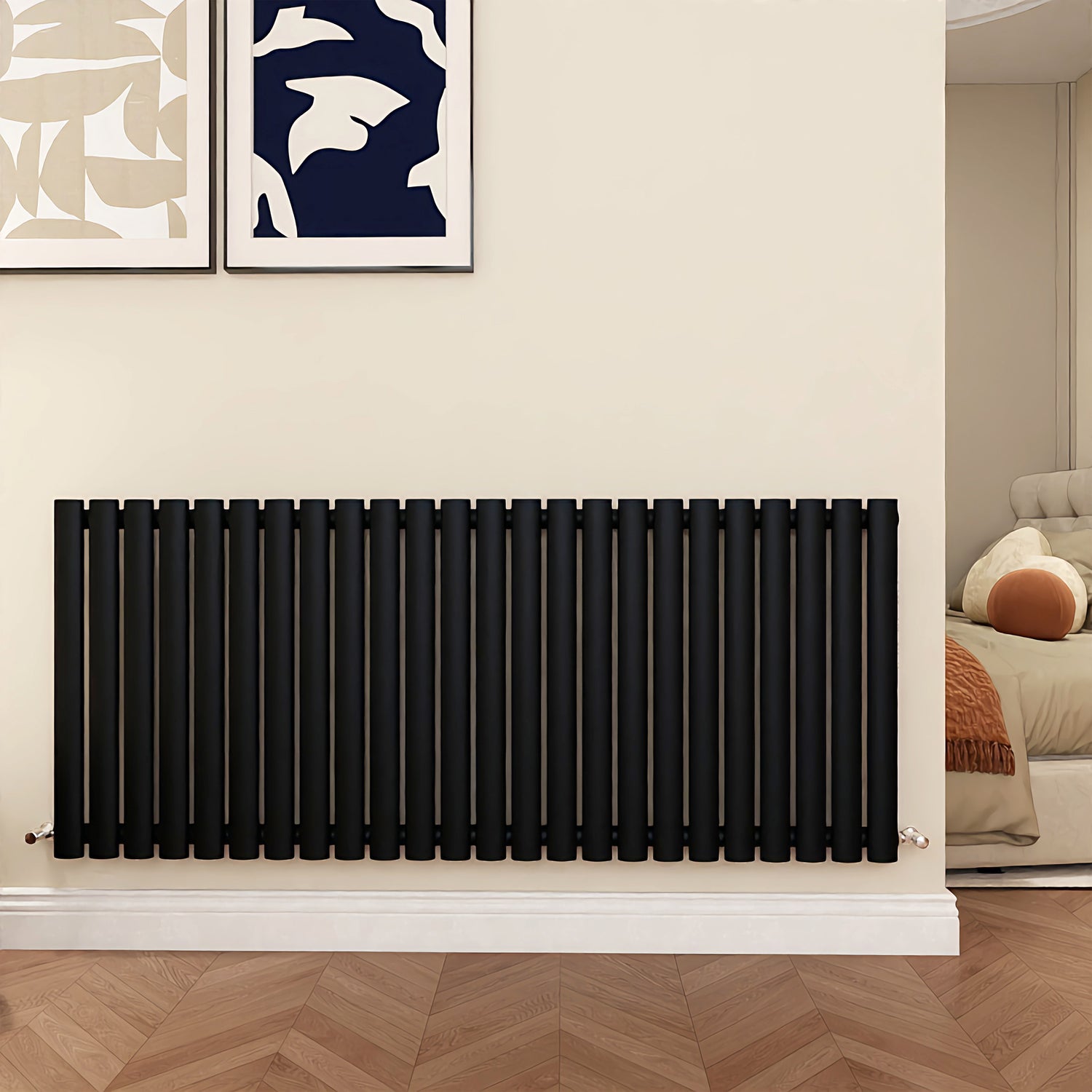

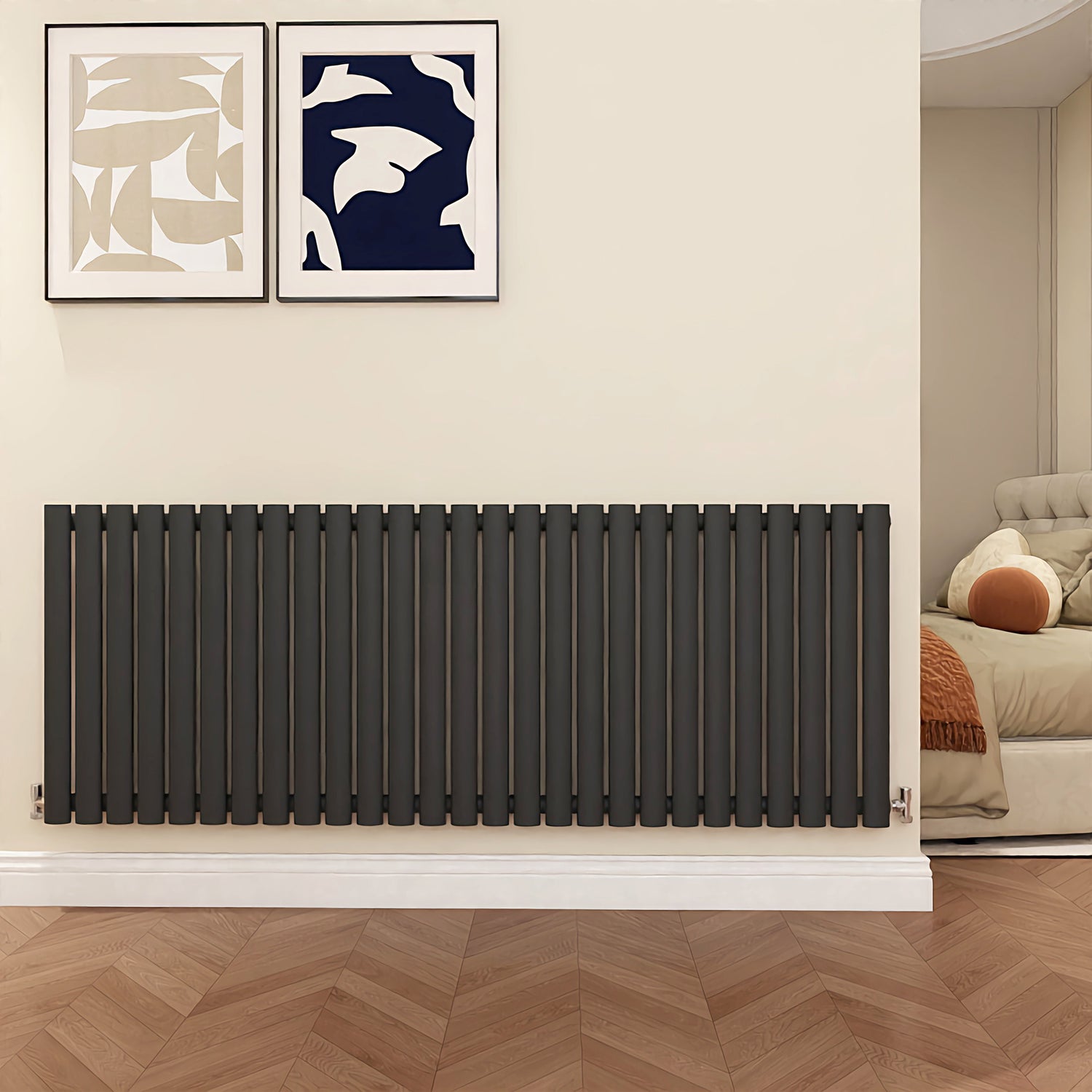

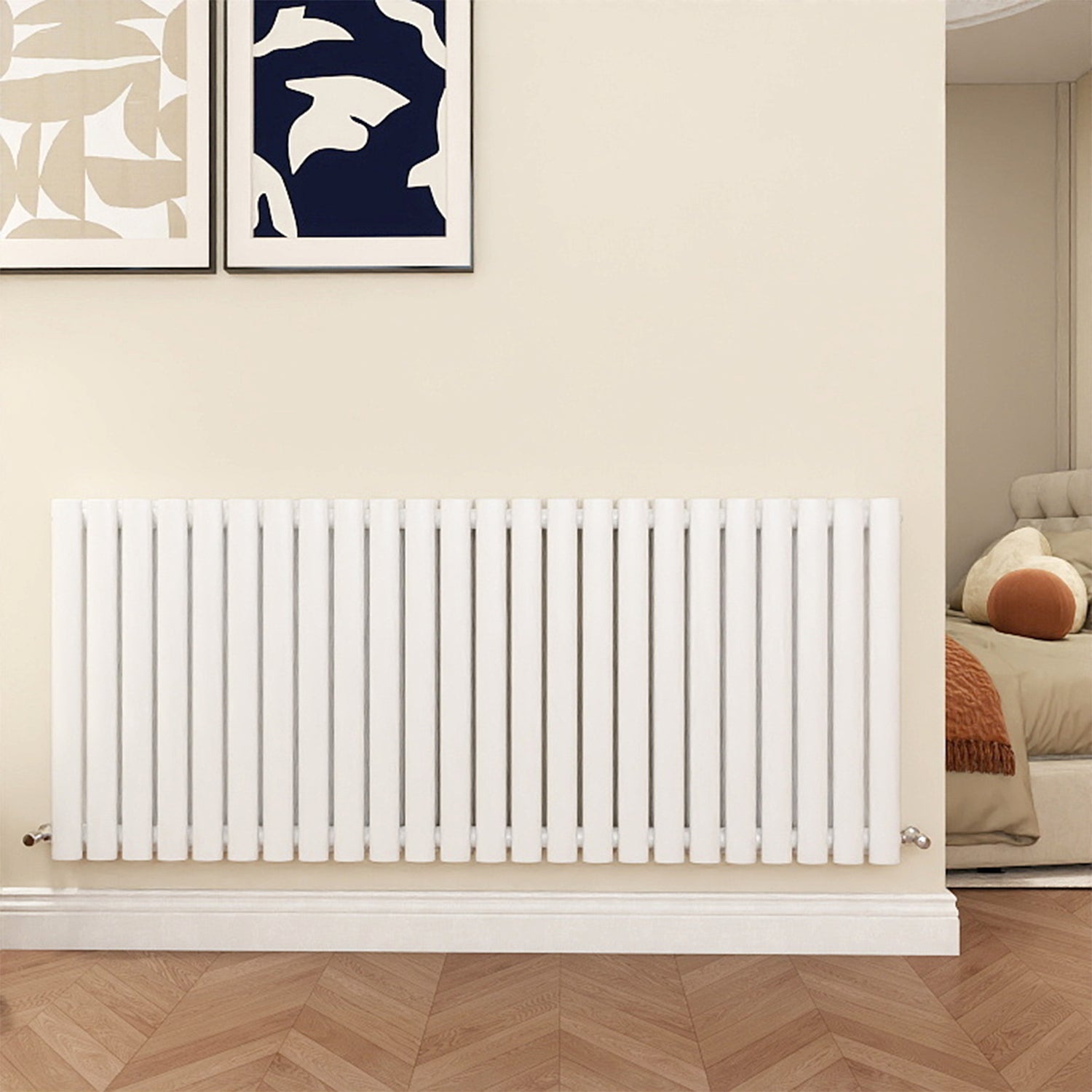

• Anthracite and Black Color Are Matte and the White Color is Gloss

Single Oval Column Designer Radiators:

Model	Size (HxW)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Oval  Tube	600 x 413 mm	Single	7	11	428	1462	Click to view
Oval  Tube	600 x 590 mm	Single	10	11.2	609	2080	Click to view
Oval  Tube	600 x 767 mm	Single	13	14.5	791	2698	Click to view
Oval  Tube	600 x 1003 mm	Single	17	19	1032	3522	Click to view
Oval  Tube	600 x 1180 mm	Single	20	22.4	1213	4140	Click to View
Oval  Tube	600 x 1416 mm	Single	24	26.9	1454	4964	Click to View
Oval  Tube	600 x 1593 mm	Single	27	30.2	1636	5582	Click to View

Double Oval Column Designer Radiators:

Model	Size (HxW)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Oval  Tube	600 x 1593 mm	Double	27+27	51.3	3075	10496	Click to view
Oval  Tube	600 x 1416 mm	Double	24+24	45.6	2734	9332	Click to view
Oval  Tube	600 x 1180 mm	Double	20+20	38	2280	7780	Click to view
Oval  Tube	600 x 1003 mm	Double	17+17	32.3	1938	6616	Click to view
Oval  Tube	600 x 767 mm	Double	13+13	24.7	1484	5064	Click to View
Oval  Tube	600 x 590 mm	Double	10+10	19	1143	3900	Click to View
Oval  Tube	600 x 413 mm	Double	7+7	13.3	802	2736	Click to View

*Not recommend to install any pipework before you receive your radiator.

*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.
