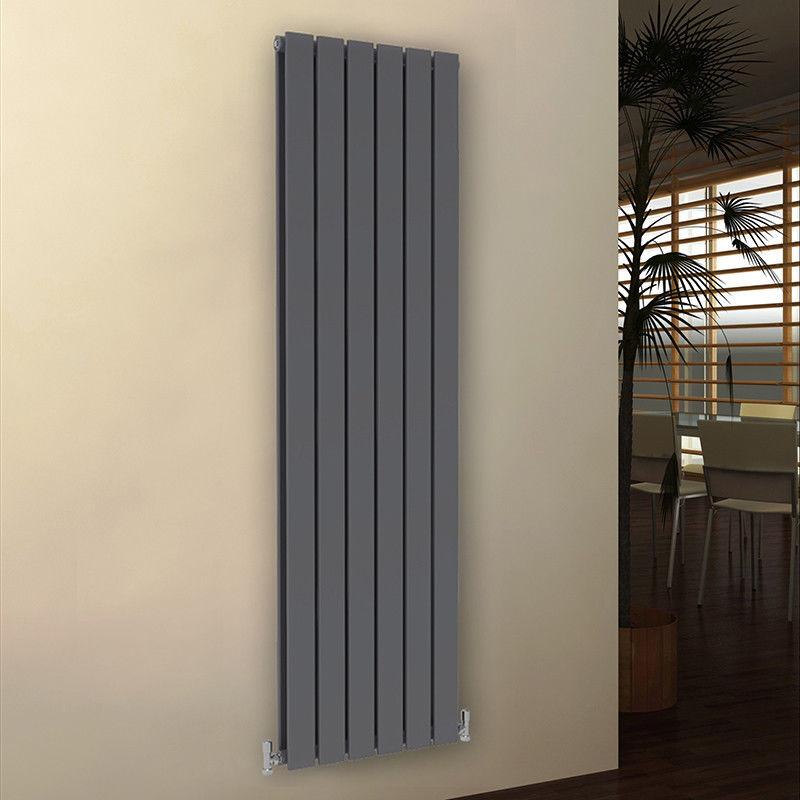

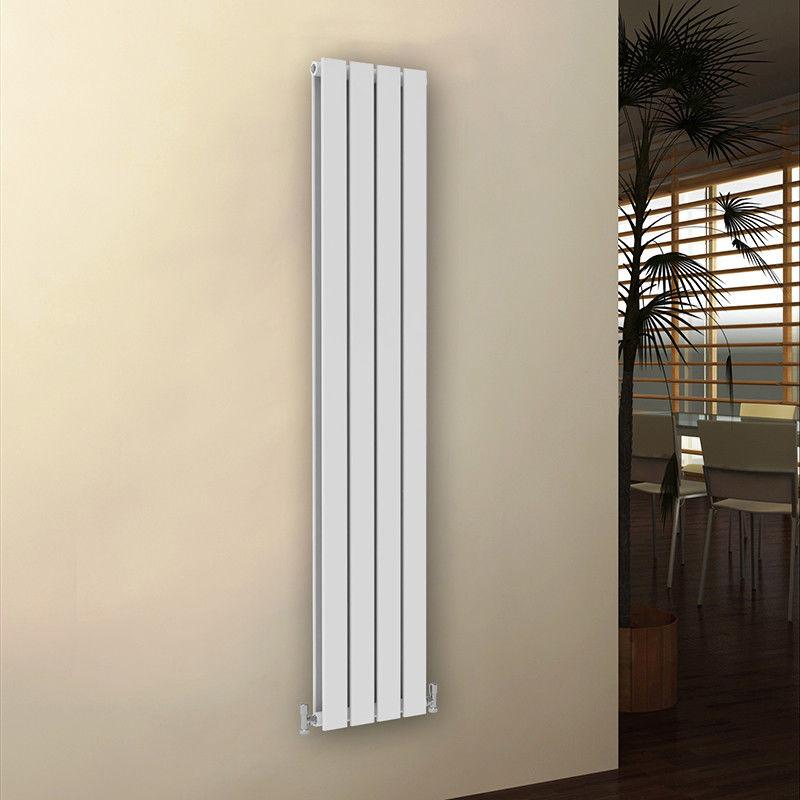

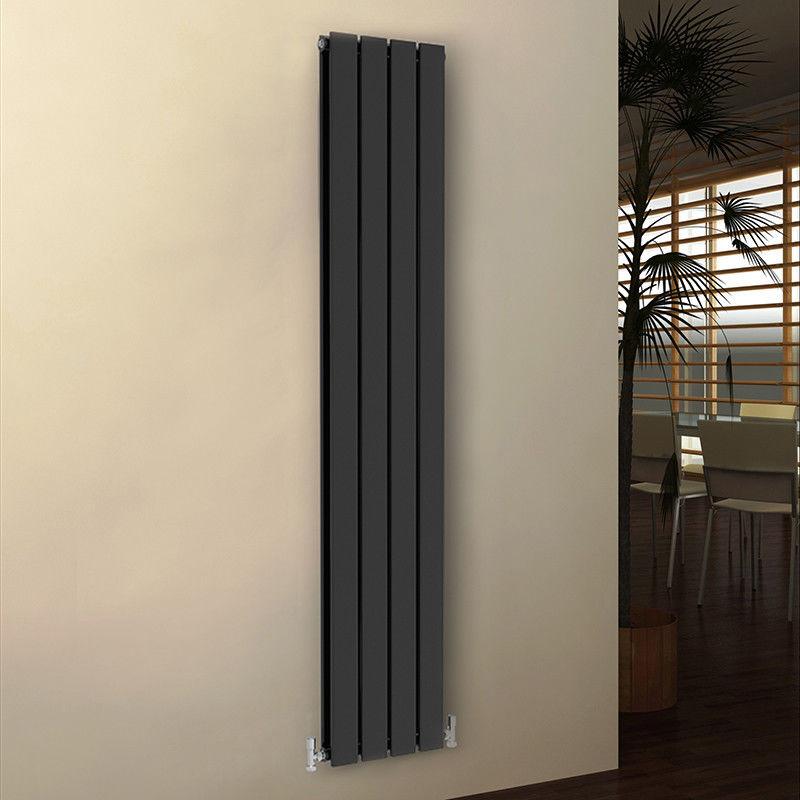

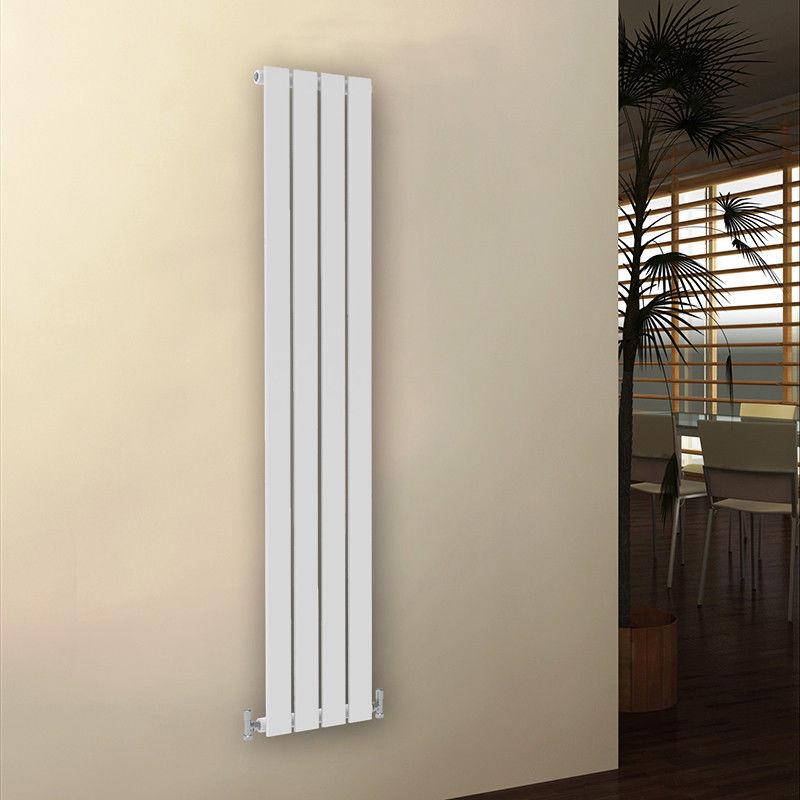

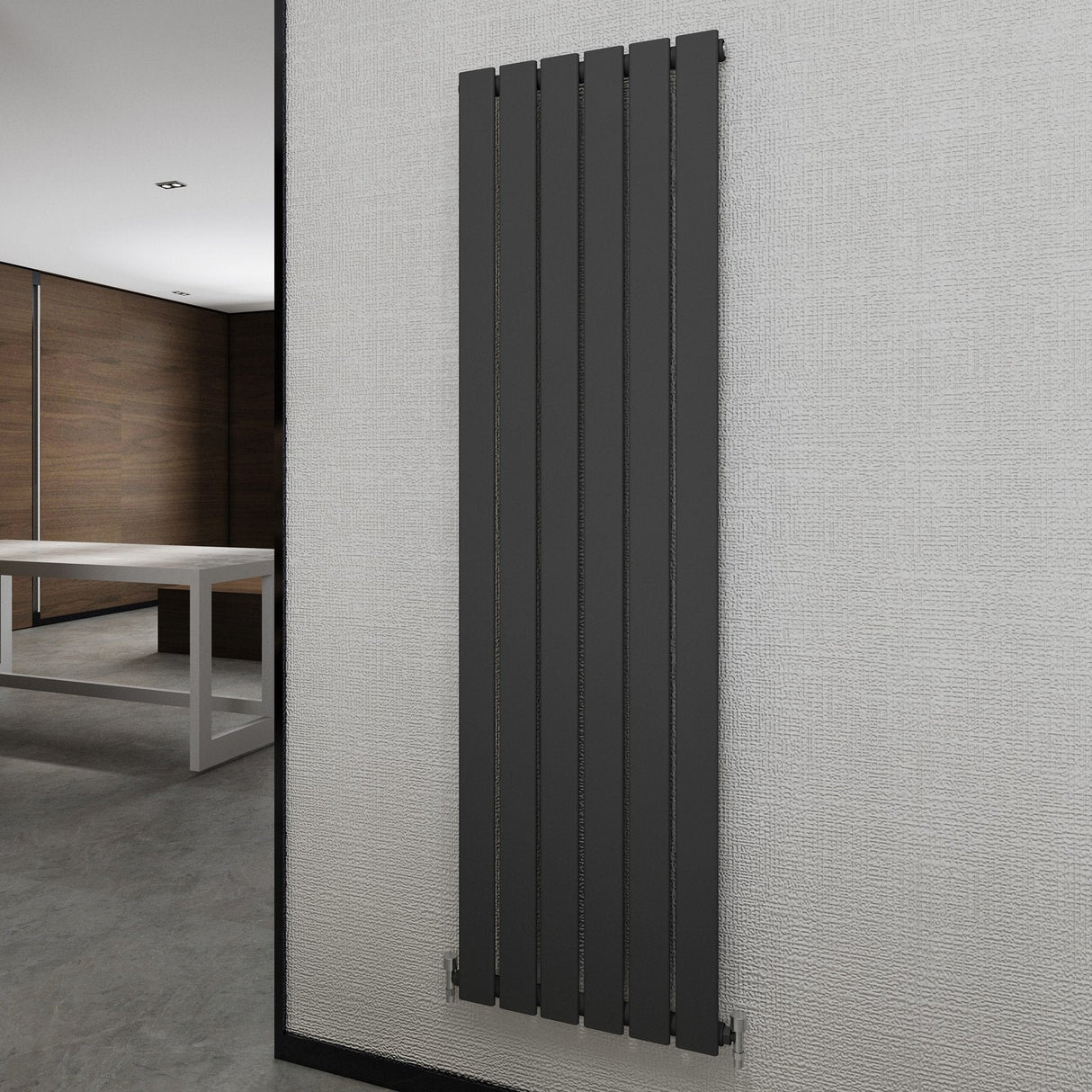

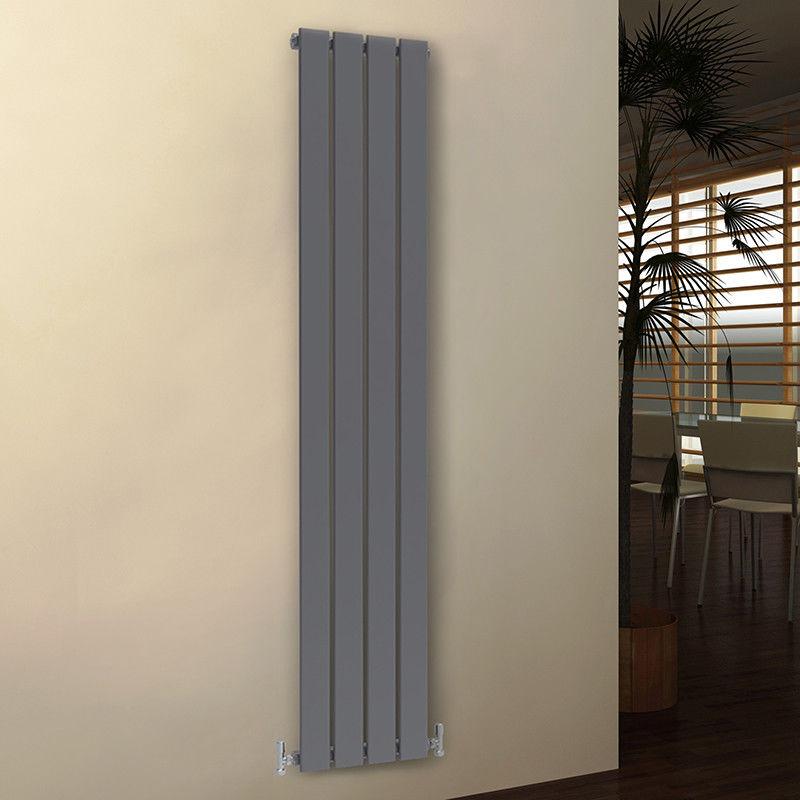

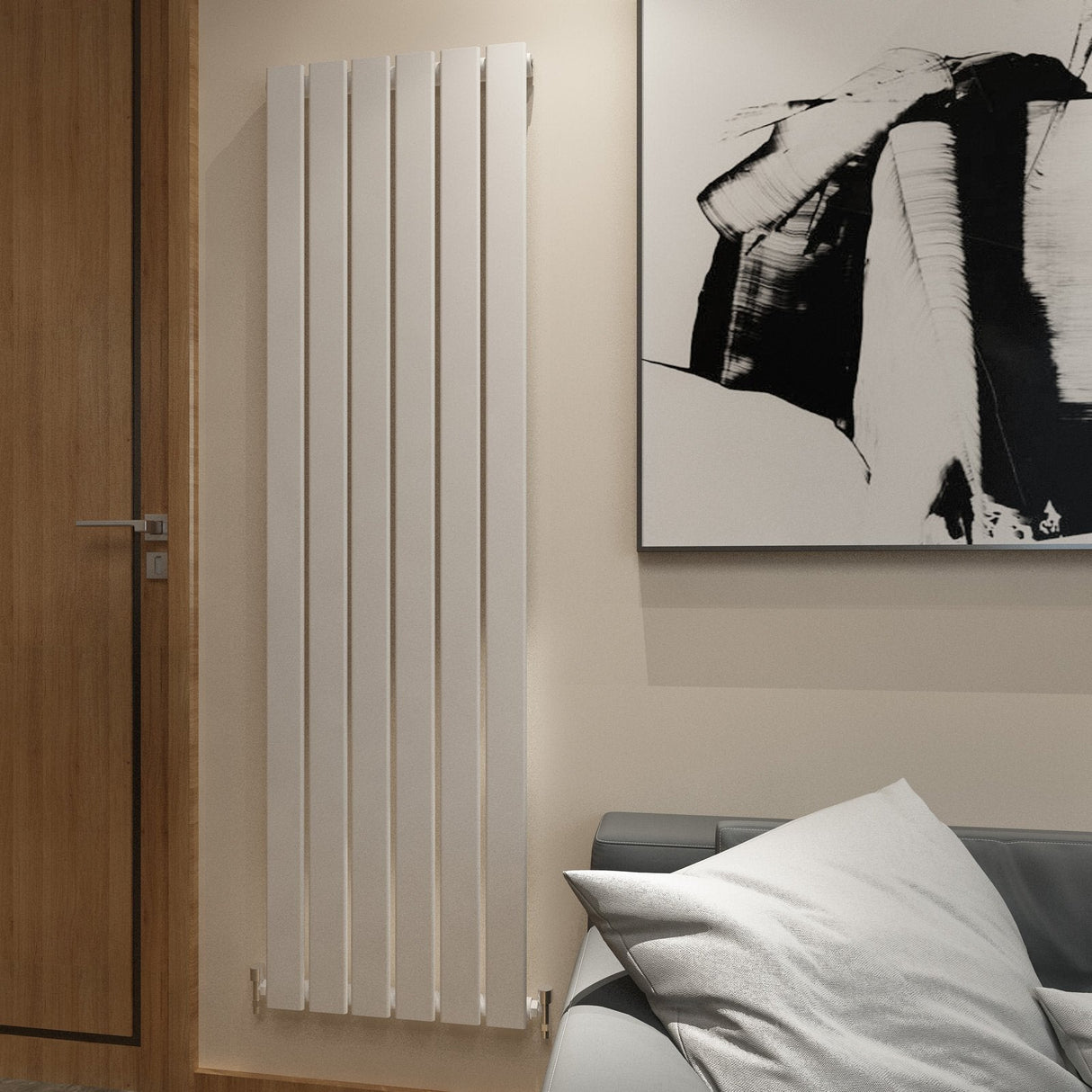

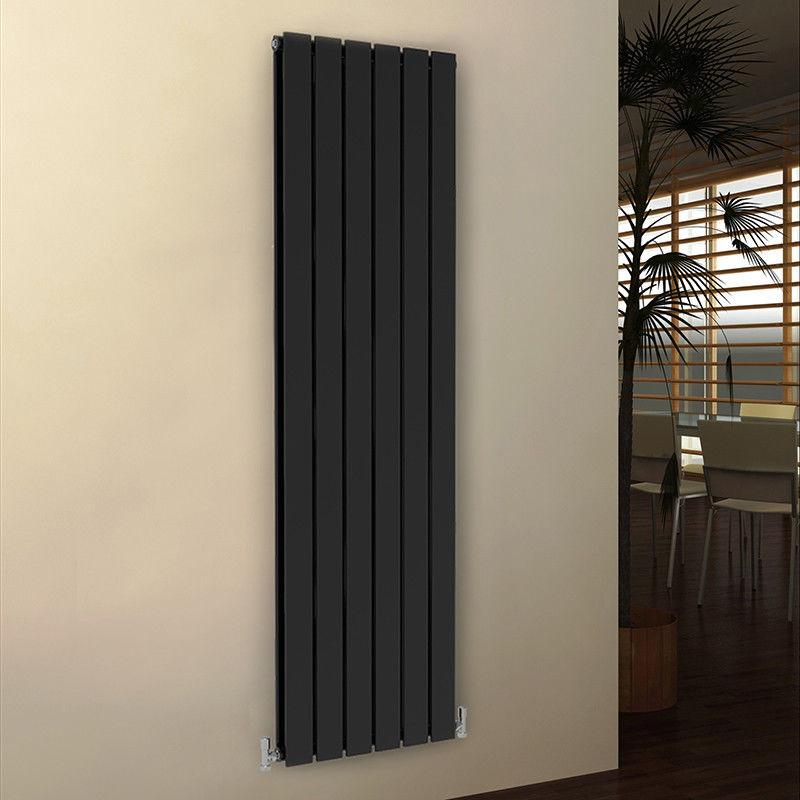

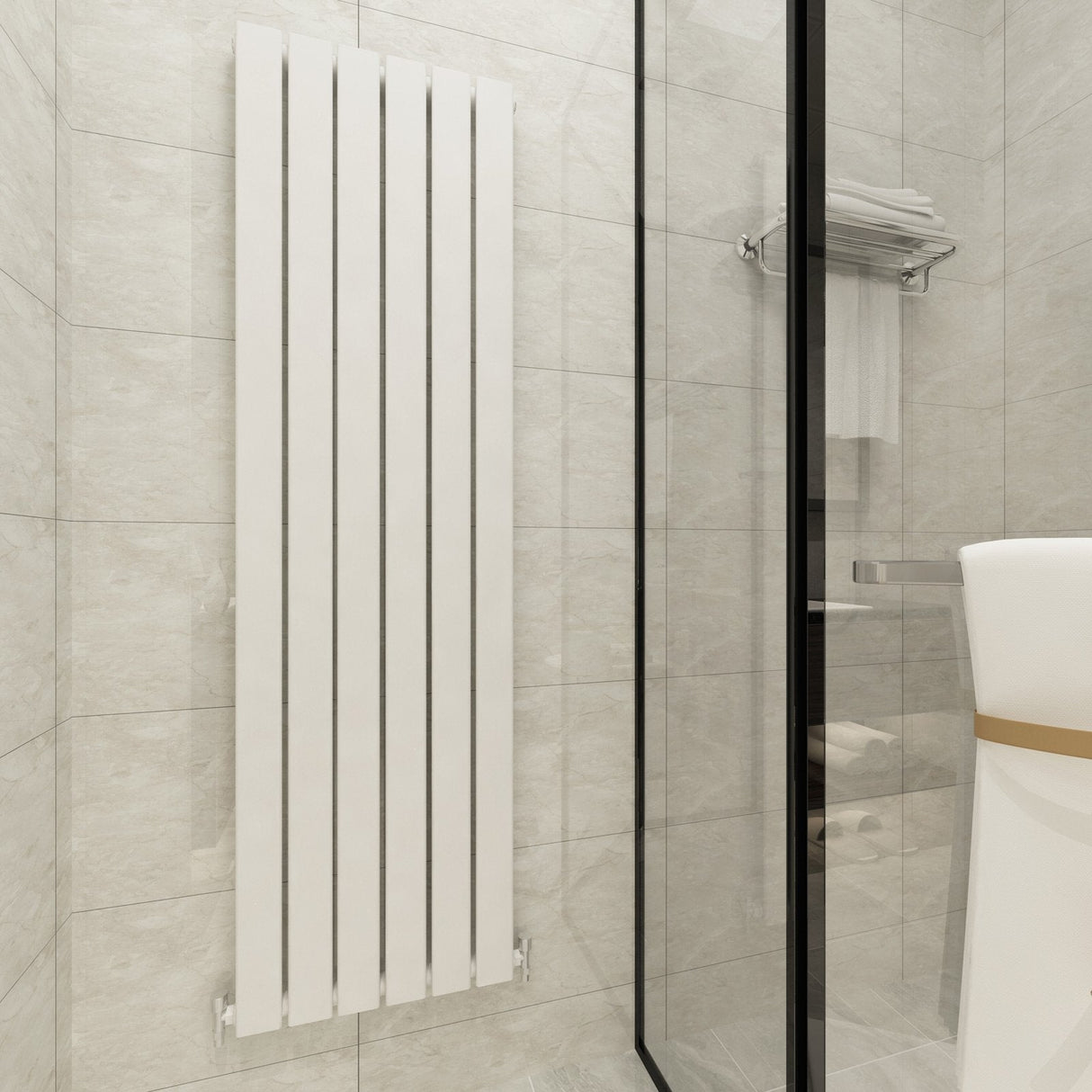

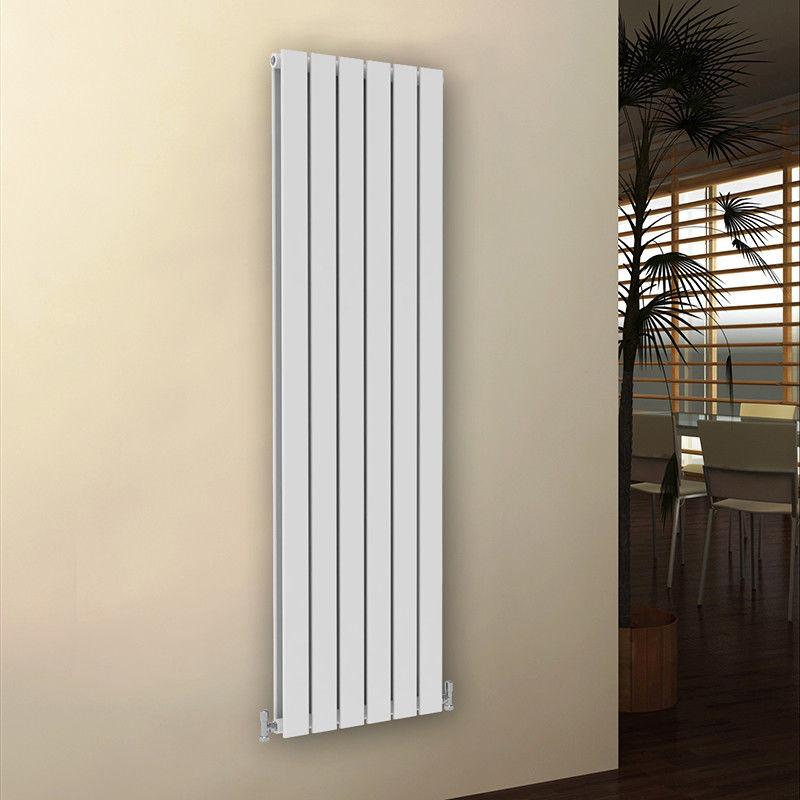

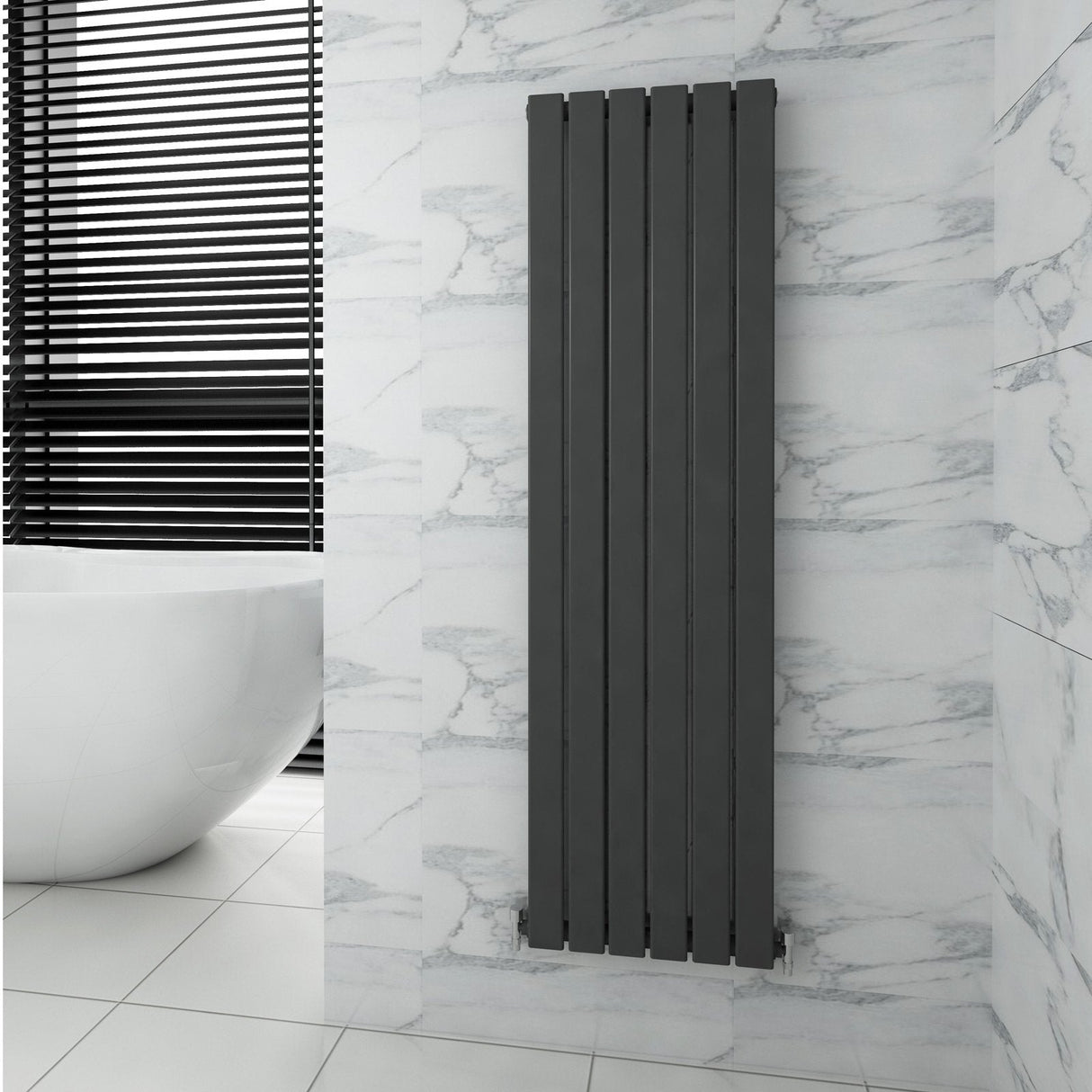

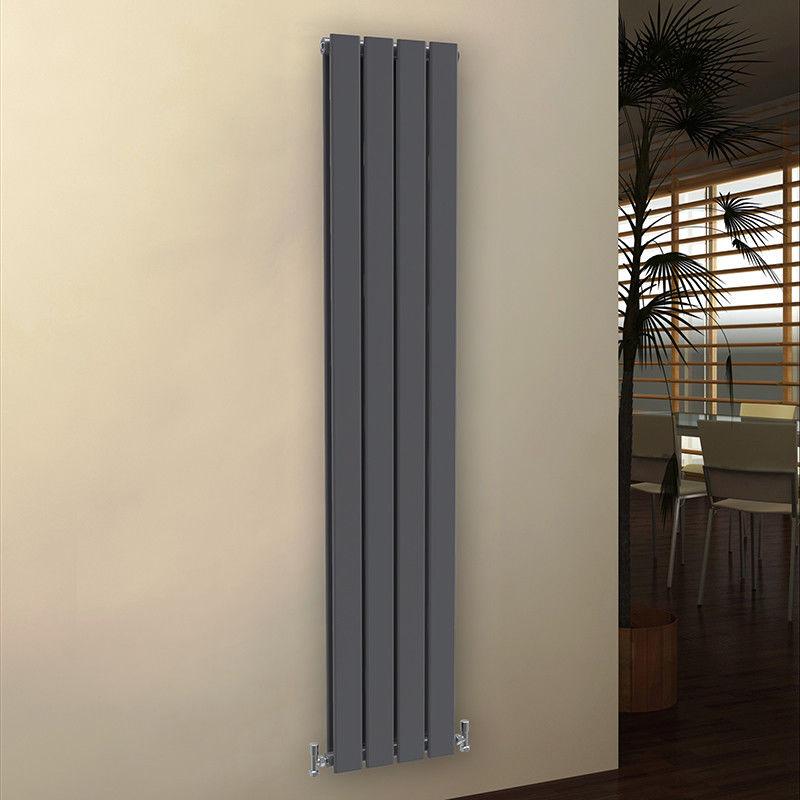

Vertical Designer Flat Panel Radiators

• With a strict manufacturing process, our radiators offer you a heating solution at an competitive price. They easily fit into your central heating system like a normal household radiator, meaning no complicated installation. The water inlet/outlet size of radiators is 1/2". All of our radiators come with lifetime warranty.

Features & Details

• 15 years Warranty
• Made from 1.6mm Premium Mild Steel
• Triple layered finish to exceed 200 hours of neutral acid salt spray testing
• Modern enterprise finish process makes radiators smooth and elegant looking
• Manufactured in accordance with BS EN 442
• 1/2" inlets and outlets
• Unique hot water circulation structure
• Can be used on all UK water heating systems
• Wall mount or stand-up installation

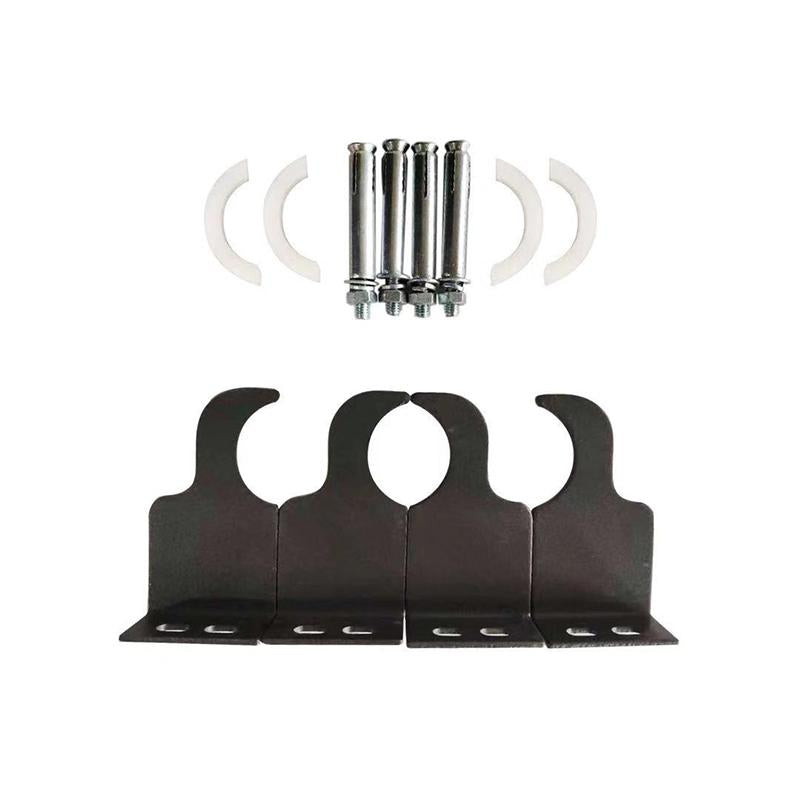

• With wall brackets and fixings
• Valves are not included.But can be bought separately
• (Note:Anthracite Color Is Matt and  the Black and White Color Are Gloss.)

Single Flat Panel Radiators:

Model	Size (HxW)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Flat Panel	1600 x 304 mm	Single	4	10.5	668	2281	Click to view
Flat Panel	1600 x 456 mm	Single	6	16.5	1001	3416	Click to view
Flat Panel	1800 x 304 mm	Single	4	12	752	2566	Click to view
Flat Panel	1800 x 456 mm	Single	6	19	1126	3814	Click to view

Double Flat Panel Radiators:

Model	Size (HxW)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Flat Panel	1600 x 304 mm	Double	4+4	22	1331	4541	Click to view
Flat Panel	1600 x 456 mm	Double	6+6	34	1995	6806	Click to view
Flat Panel	1800 x 304 mm	Double	4+4	24.5	1498	5111	Click to view
Flat Panel	1800 x 456 mm	Double	6+6	38.5	2275	7762	Click to view
