Horizontal 2-3 Columns Radiator

Description：

• 15 years Warranty
• Made from 1.5mm Premium Mild Steel
• Triple layered finish
• Color: Anthracite/White
• Fully safety tested.
• Compatible for use on all UK heating systems
• It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.

Features And Details：

• High quality triple layered finish.
• Manufactured in accordance with BS EN 442
• 1/2" inlets and outlets
• Unique hot water circulation structure
• Tradition horizontal high quality heating radiator
• Wall mount or stand-up installation
• Brackets and fixings included
• Valves are not included.But can be bought separately.Click here to buy our high quality valves.
• Note: Anthracite Color Is Matt and  the White Color Is Gloss.

Horiziontal 2 Columns Radiator:

Model	Size (HxW)	Panel	Bars	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU

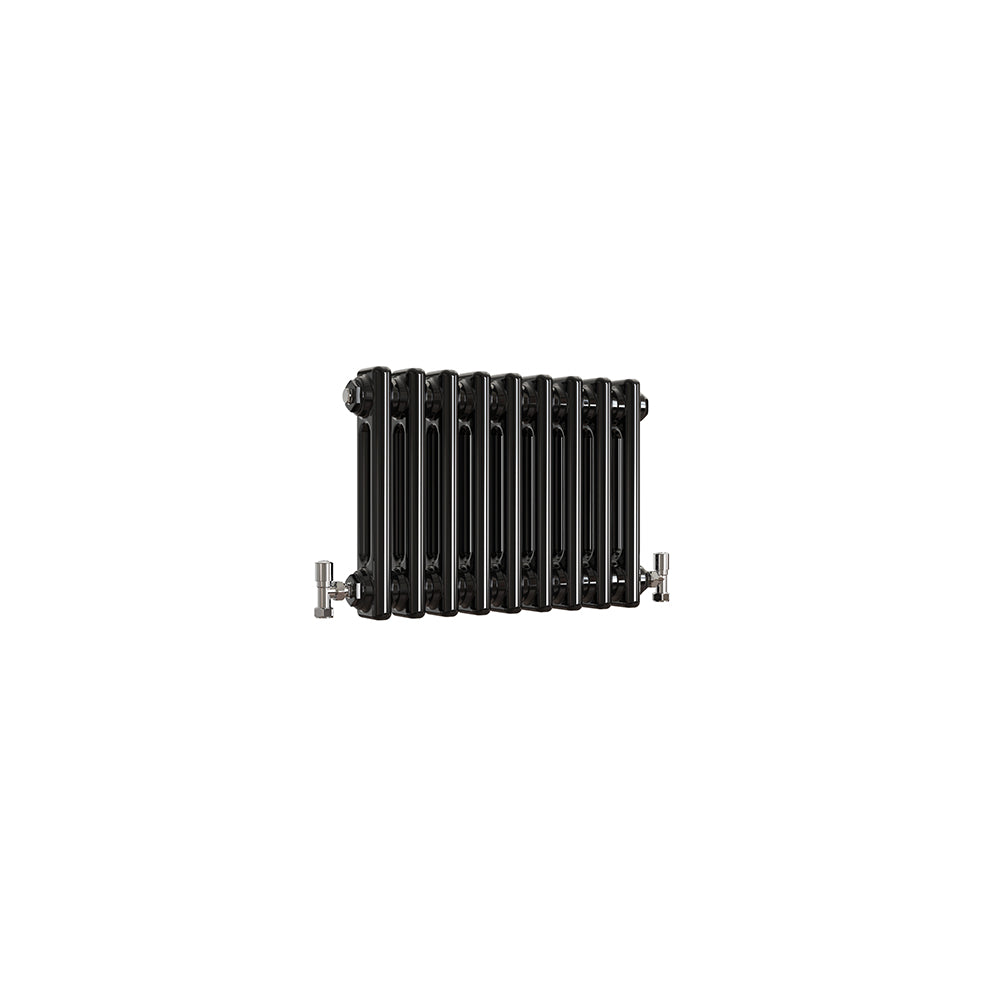

Tradition Style	300 x 425 mm	2 Column	9	6	280	957	Click to view

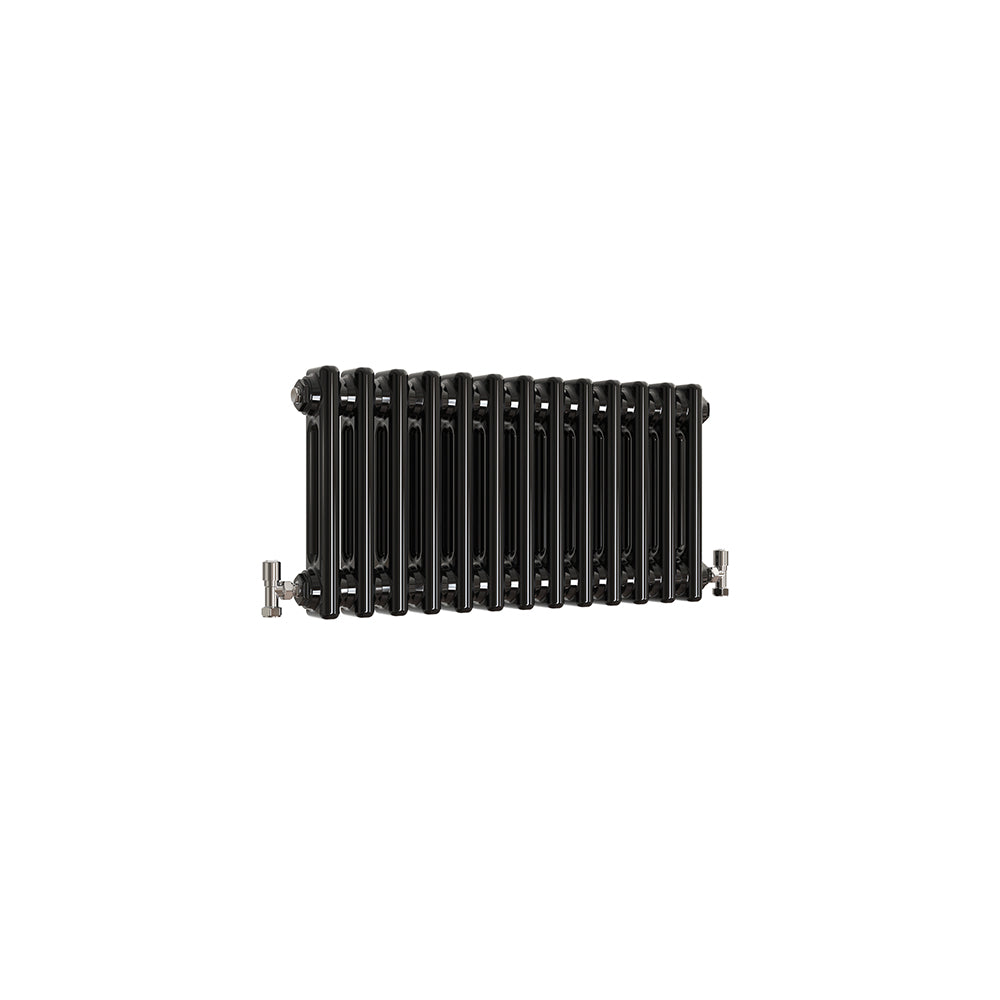

Tradition Style	300 x 605 mm	2 Column	13	8	401	1369	Click to view
Tradition Style	300 x 830 mm	2 Column	18	11.1	555	1895	Click to view
Tradition Style	300 x 1010 mm	2 Column	22	13.6	675	2304	Click to view

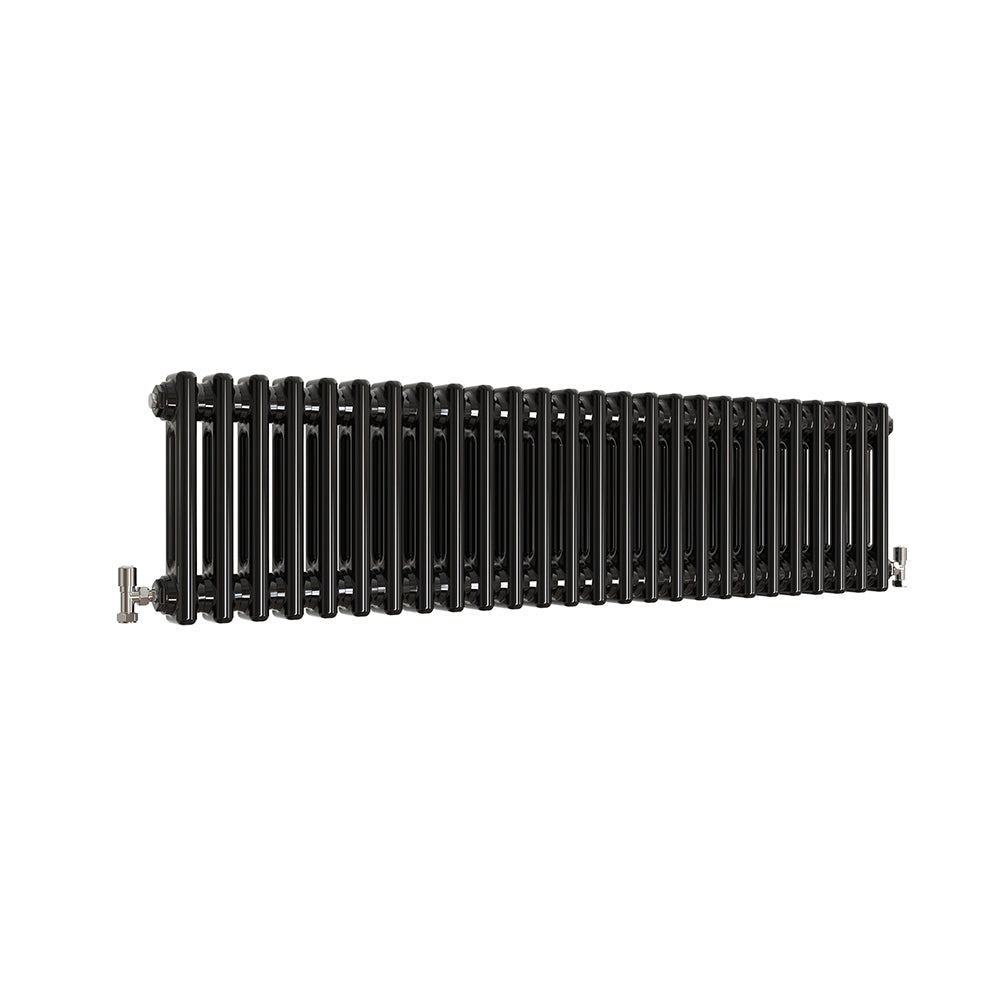

Tradition Style	300 x 1190 mm	2 Column	26	16.5	798	2723	Click to view

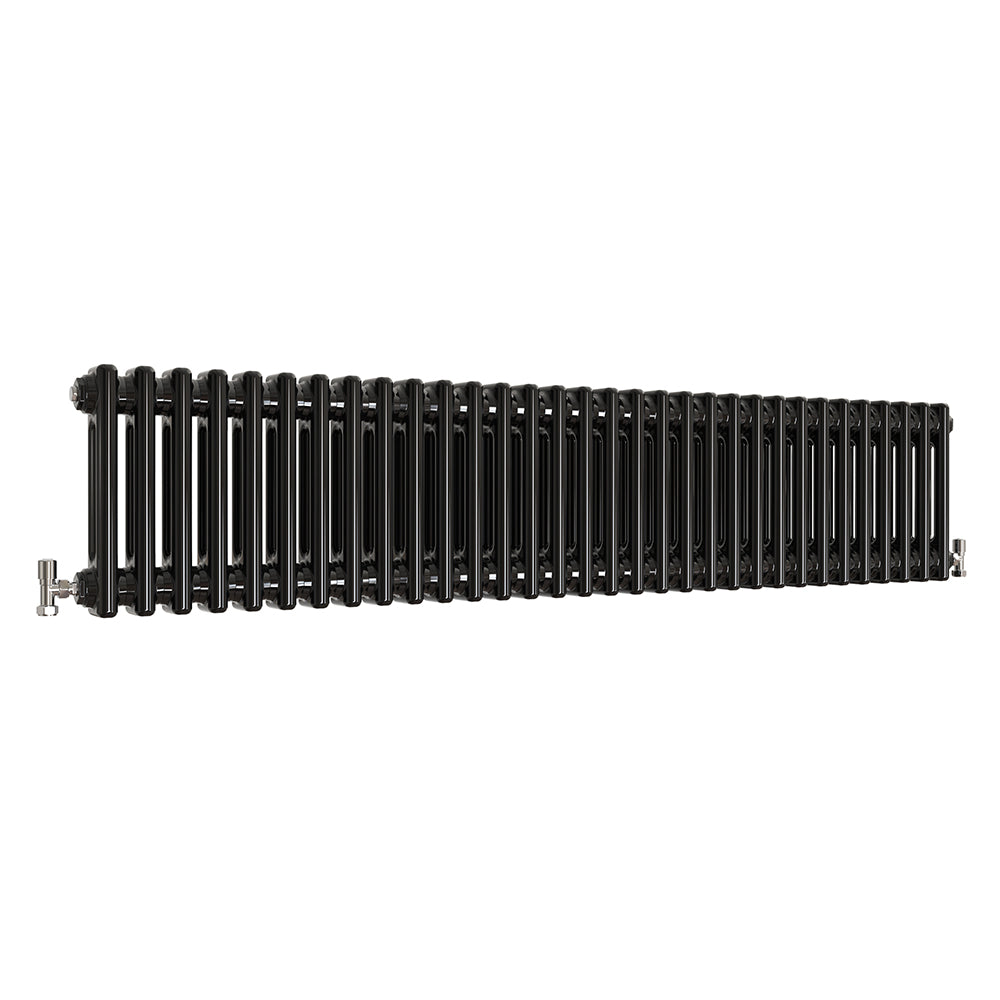

Tradition Style	300 x 1460 mm	2 Column	32	20.3	982	3352	Click to view

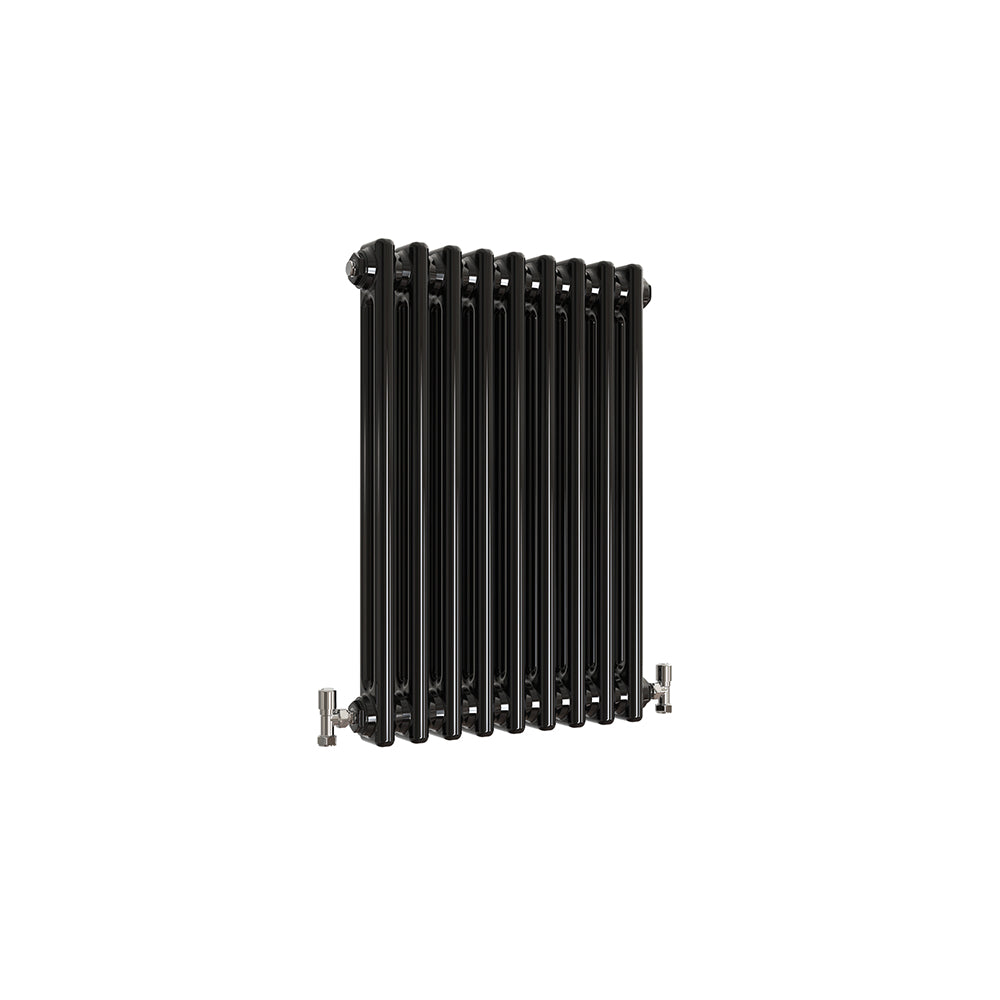

Tradition Style	600 x 425 mm	2 Column	9	11	553	1889	Click to view
Tradition Style	600 x 605 mm	2 Column	13	16.1	799	2728	Click to view

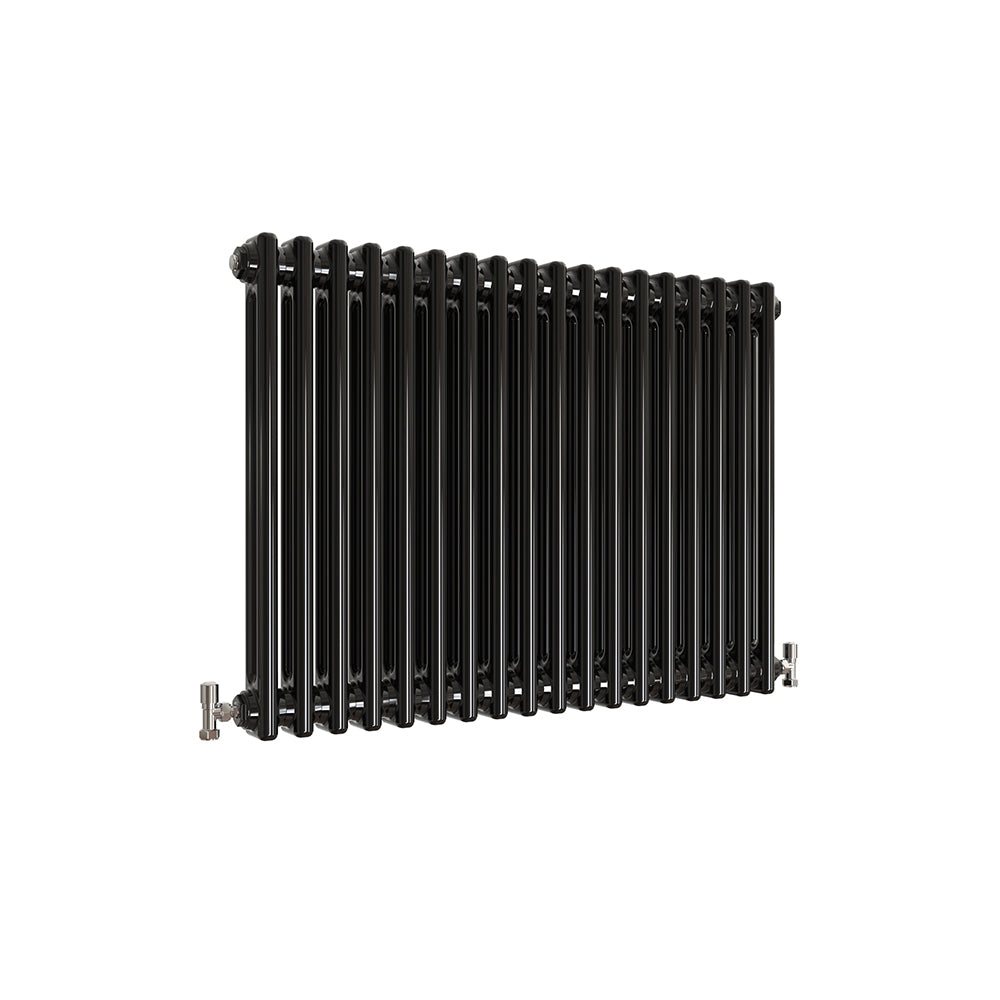

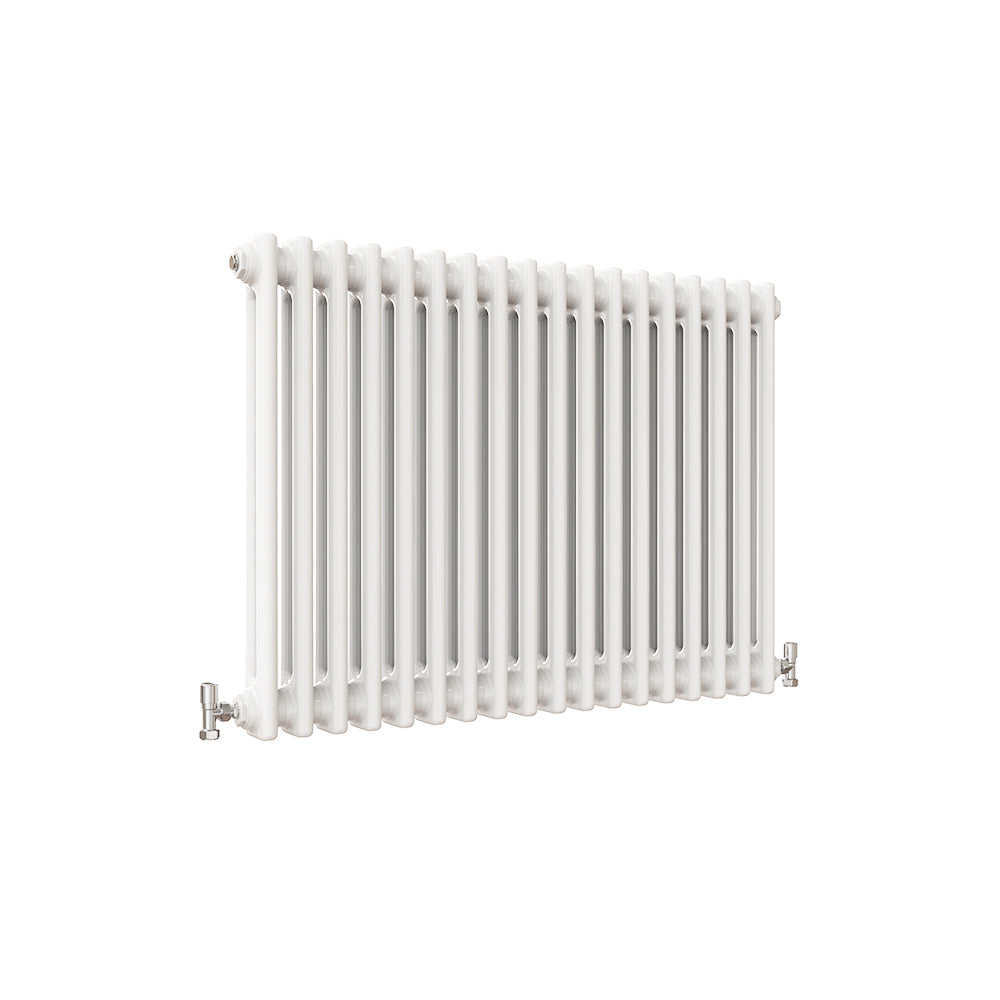

Tradition Style	600 x 830 mm	2 Column	18	22.9	1102	3760	Click to view

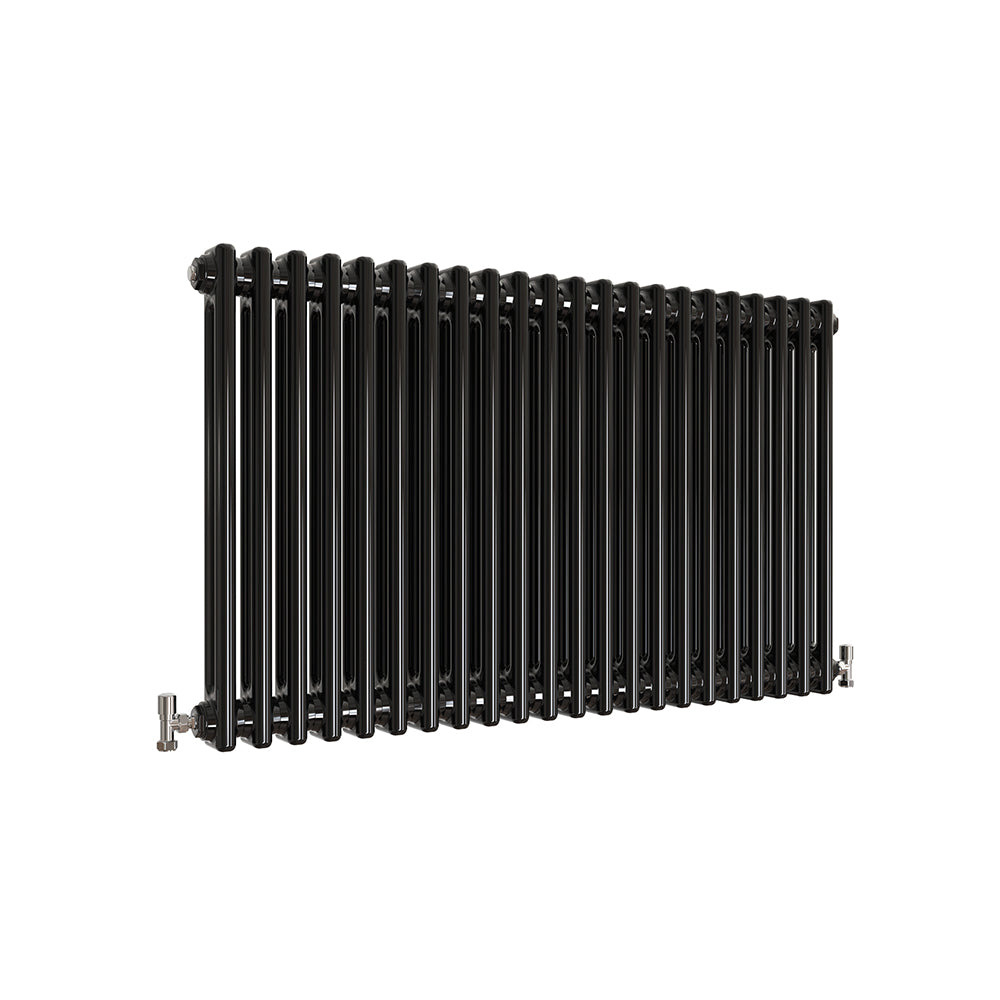

Tradition Style	600 x 1010 mm	2 Column	22	27.9	1348	4600	Click to view

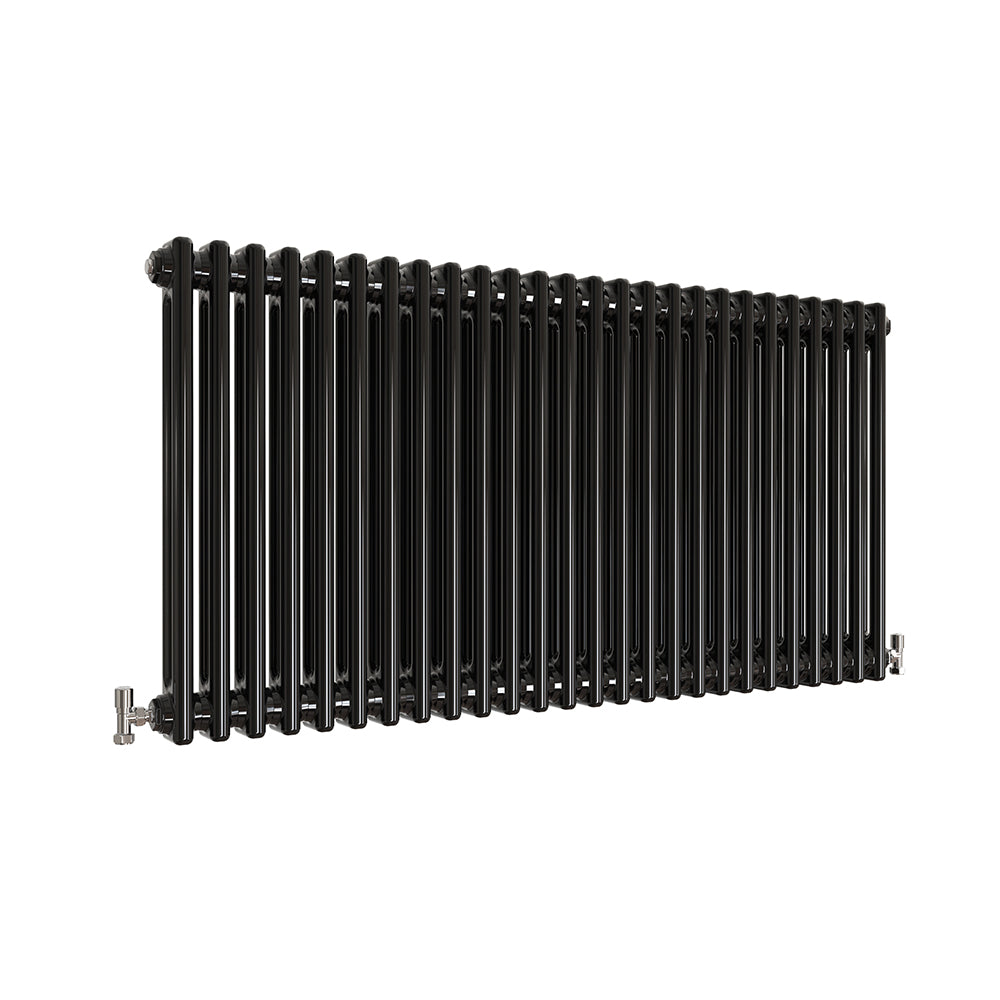

Tradition Style	600 x 1190 mm	2 Column	26	33	1590	5425	Click to view

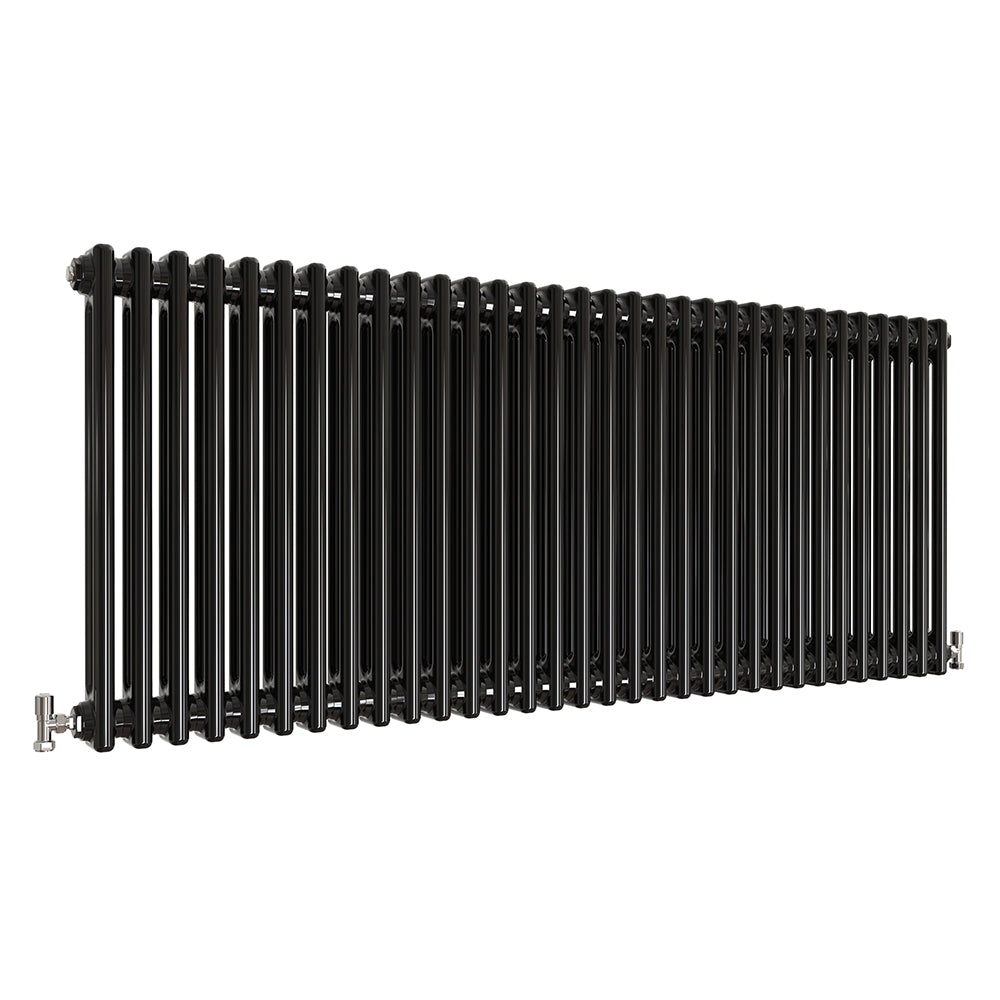

Tradition Style	600 x 1460 mm	2 Column	32	40.5	1957	6678	Click to view

Horiziontal 3 Columns Radiator:

Model	Size (HxW)	Panel	Bars	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Tradition Style	300 x 425 mm	3 Column	9	8.8	387	1320	Click to view
Tradition Style	300 x 605 mm	3 Column	13	12.7	557	1900	Click to view

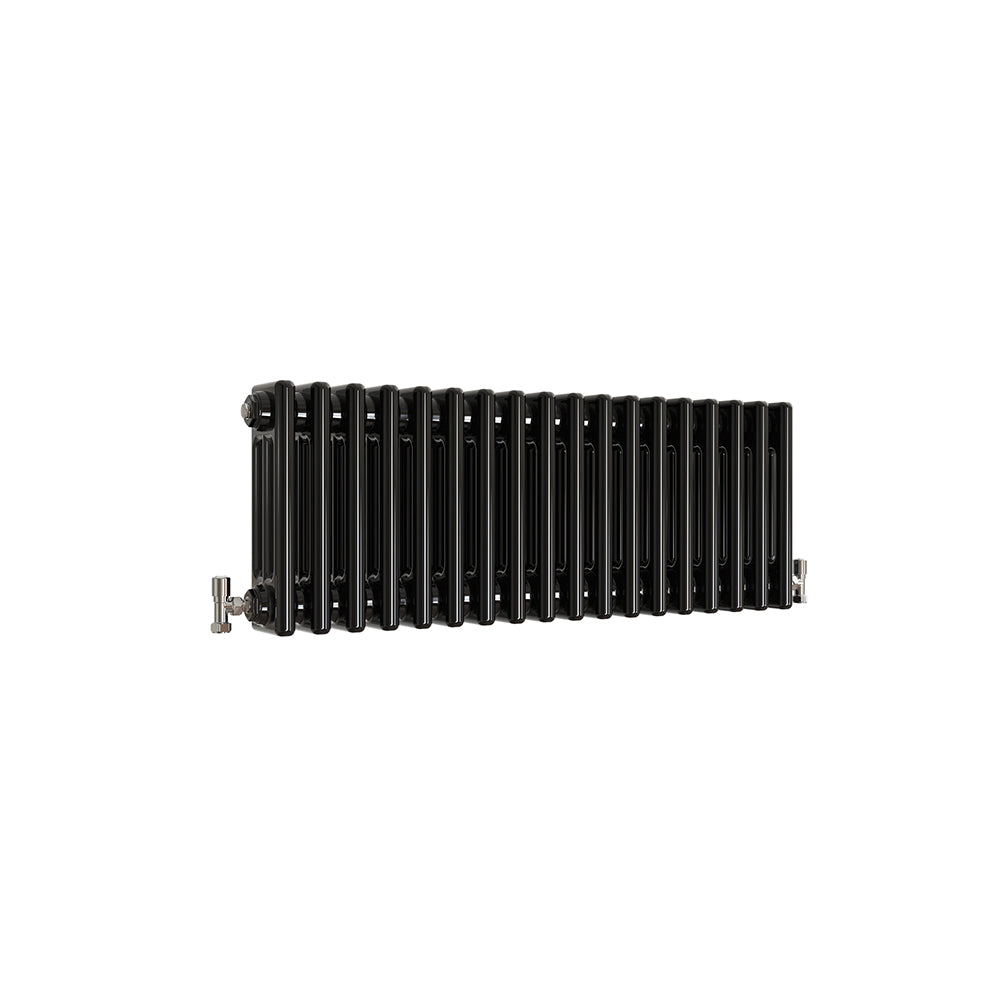

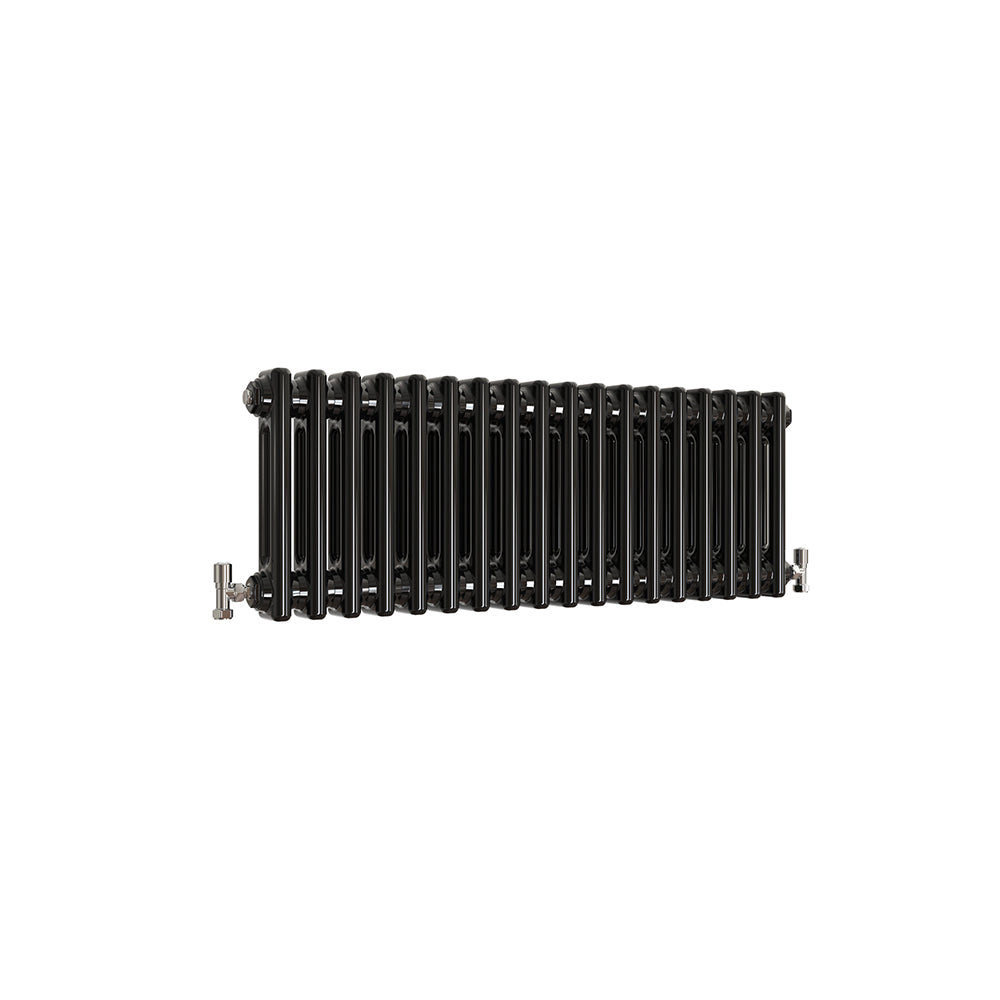

Tradition Style	300 x 830 mm	3 Column	18	17.6	766	2615	Click to view

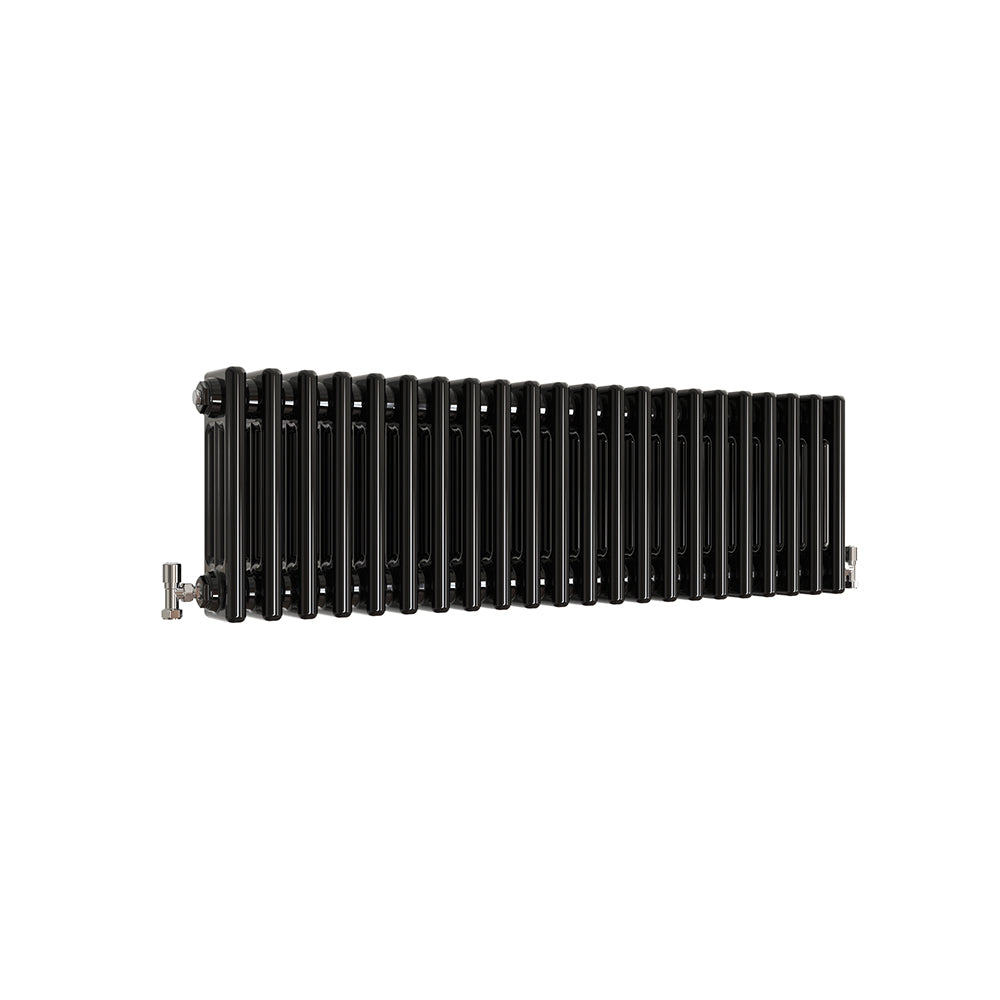

Tradition Style	300 x 1010 mm	3 Column	22	21.5	935	3190	Click to view
Tradition Style	300 x 1190 mm	3 Column	26	24.5	1102	3762	Click to view

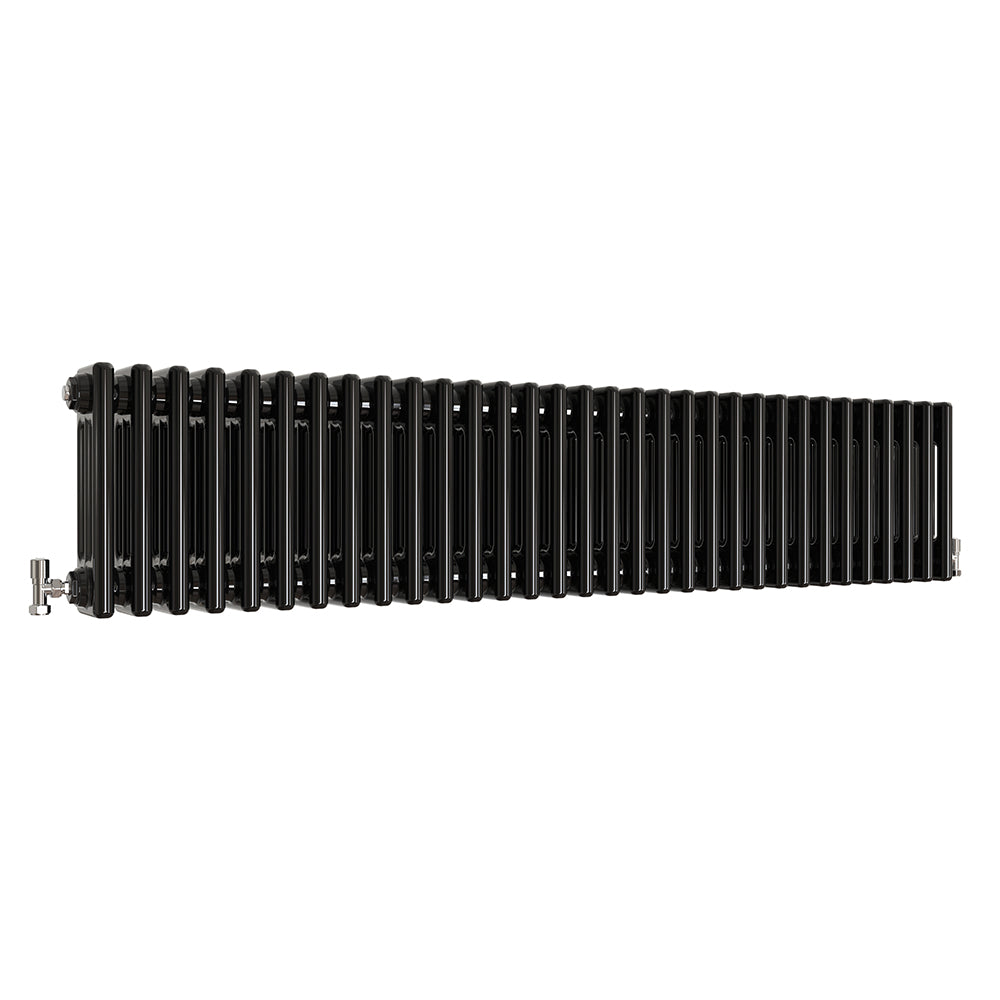

Tradition Style	300 x 1460 mm	3 Column	32	30	1355	4625	Click to view

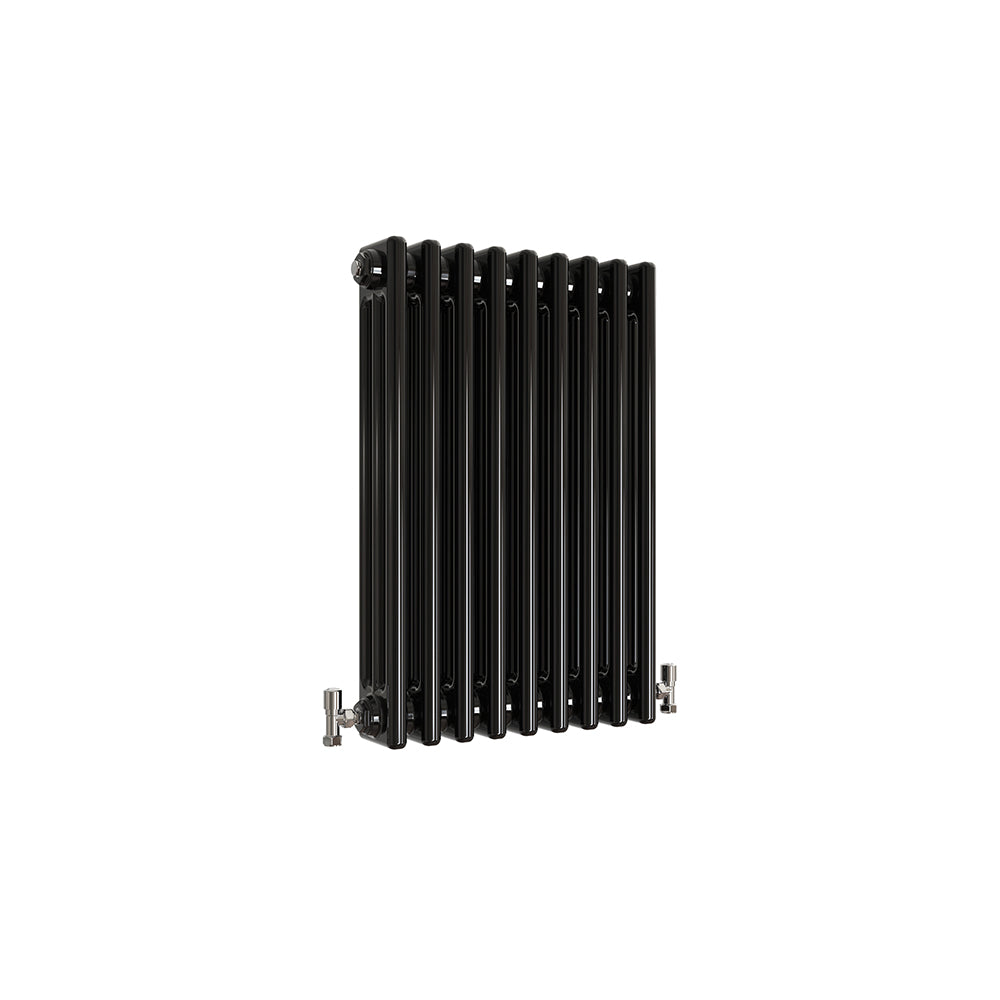

Tradition Style	600 x 425 mm	3 Column	9	16.1	785	2680	Click to view

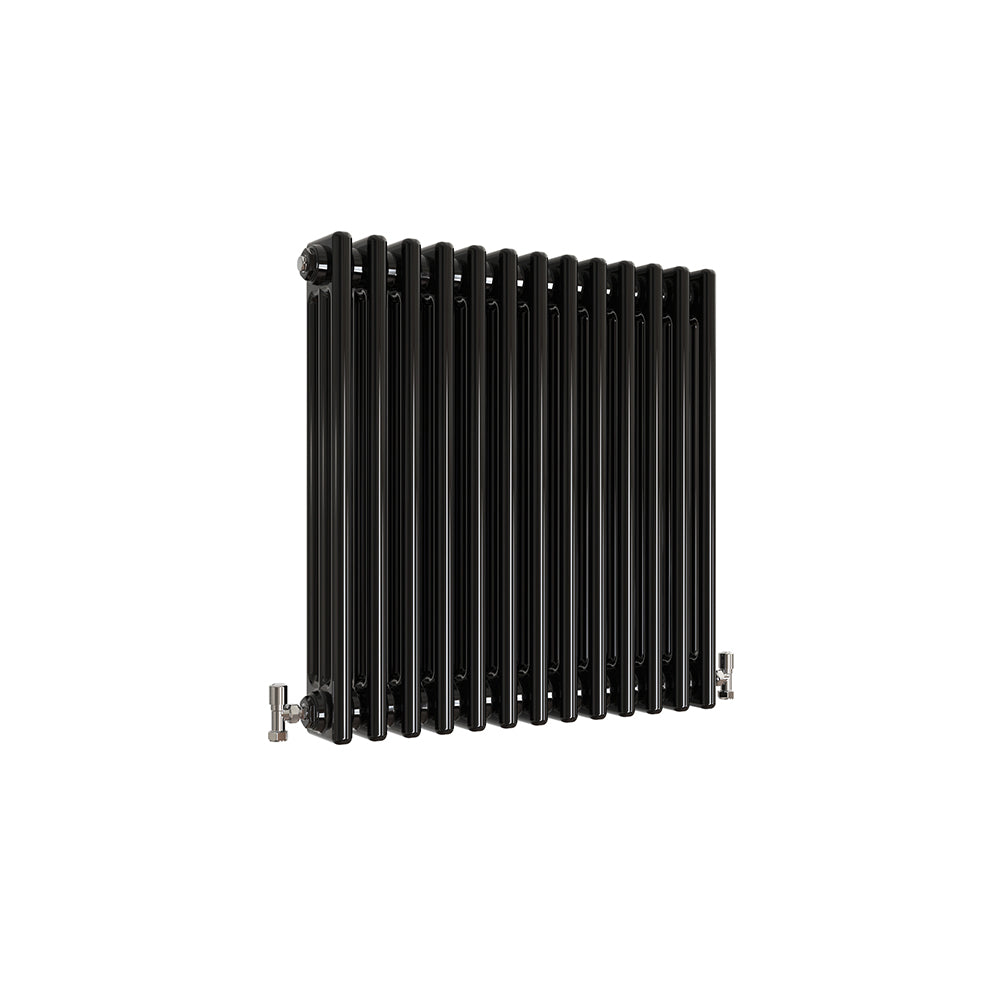

Tradition Style	600 x 605 mm	3 Column	13	23.3	1133	3868	Click to view

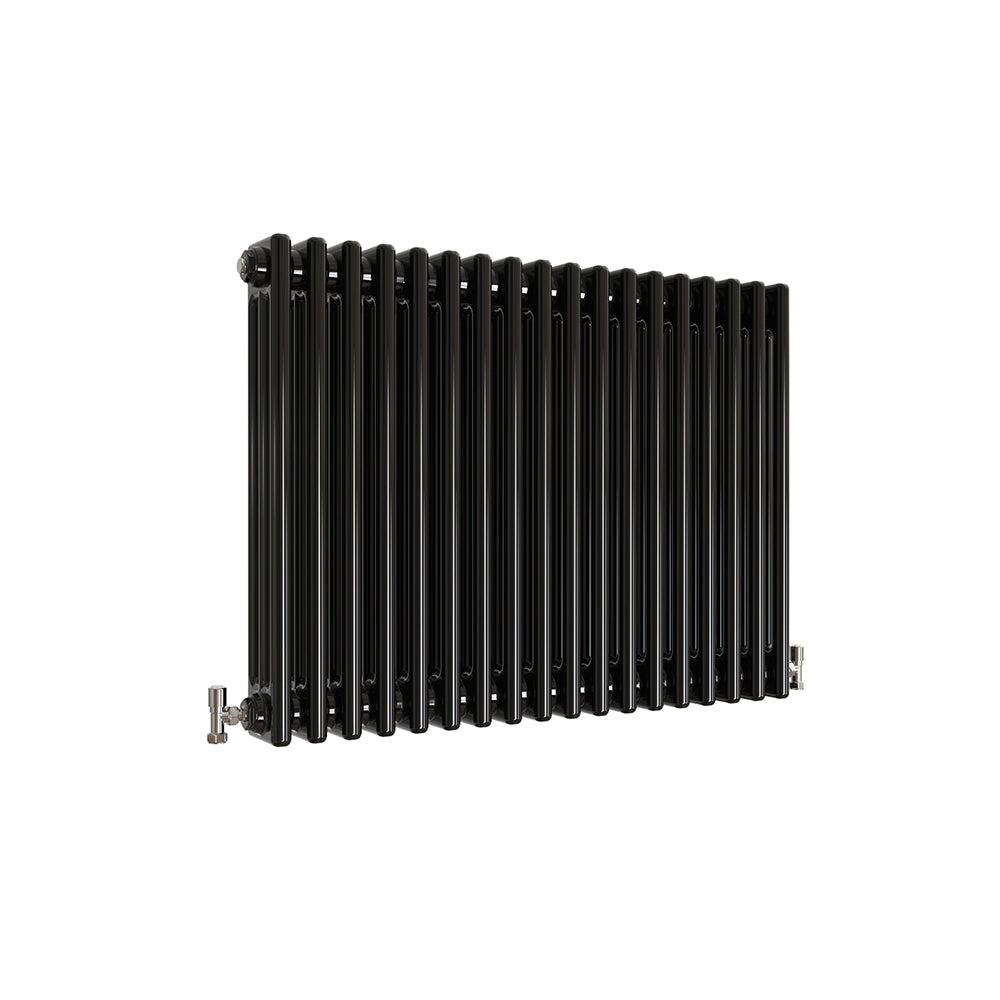

Tradition Style	600 x 830 mm	3 Column	18	31.9	1568	5353	Click to view

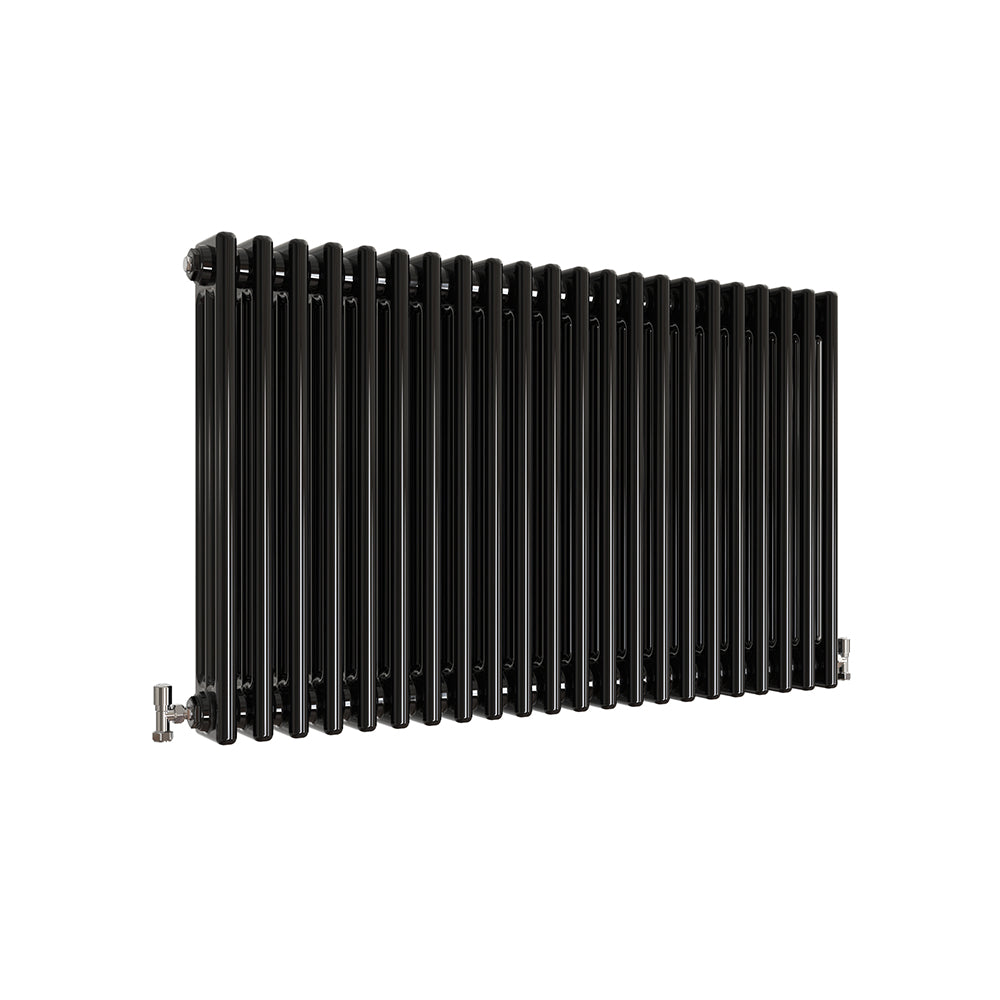

Tradition Style	600 x 1010 mm	3 Column	22	39	1919	6548	Click to view

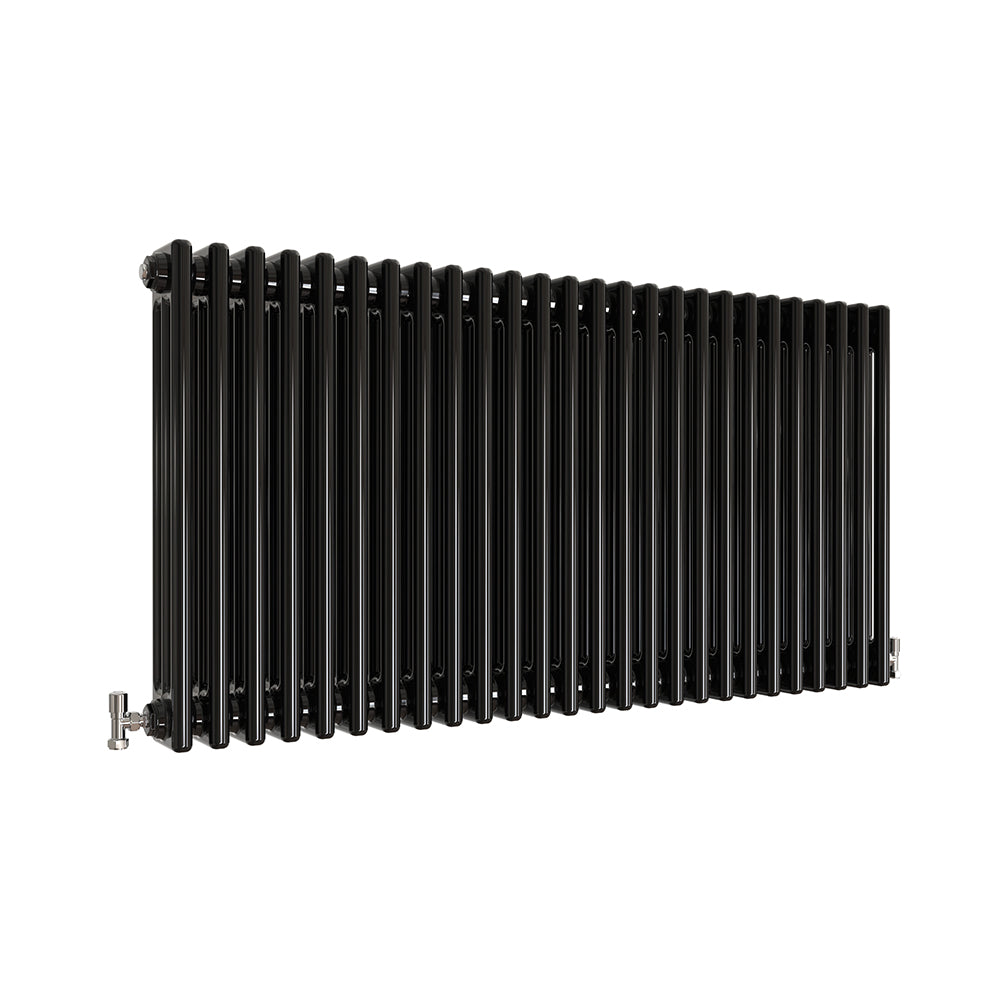

Tradition Style	600 x 1190 mm	3 Column	26	46.1	2265	7730	Click to view

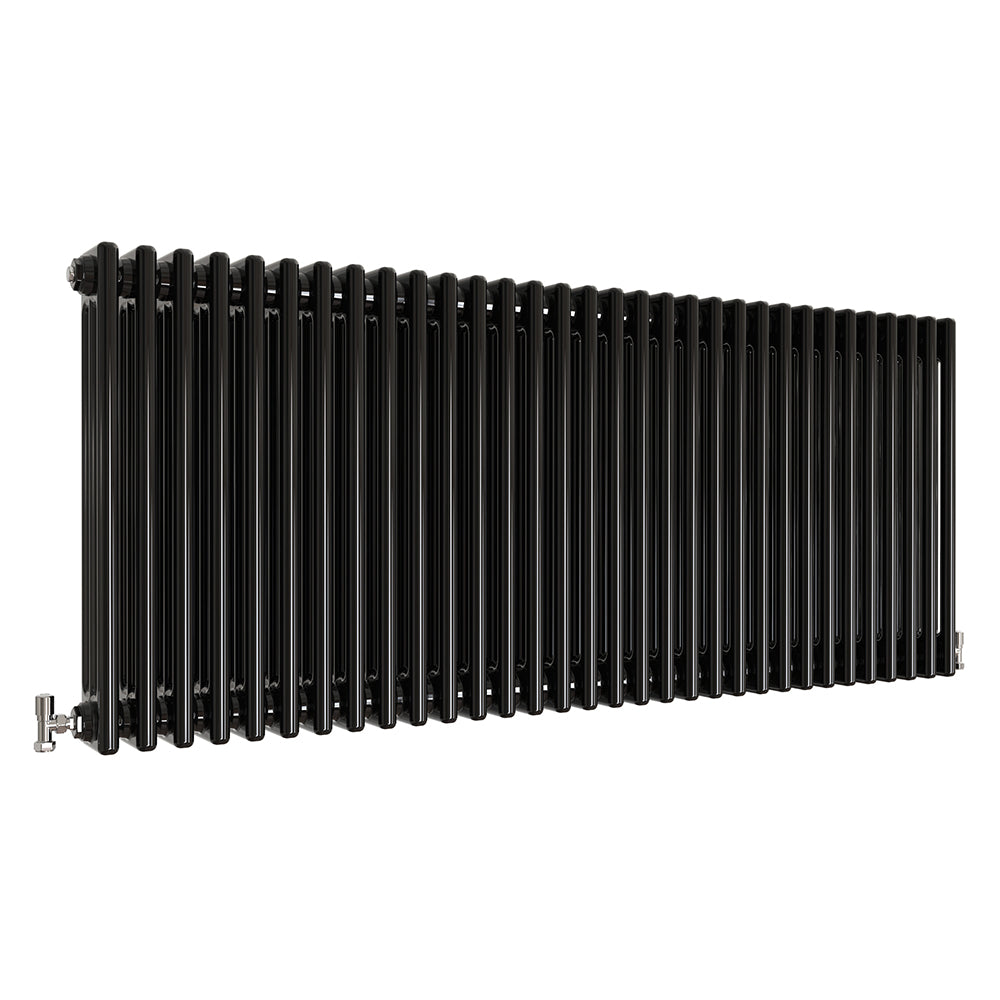

Tradition Style	600 x 1460 mm	3 Column	32	57.2	2784	9500	Click to view

*Not recommend to install any pipework before you receive your radiator.

*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.
